- Page 1 INSTRUCTION MANUAL B·IRON 100 TOOL Precision Handle...
-
Page 2: Packing List

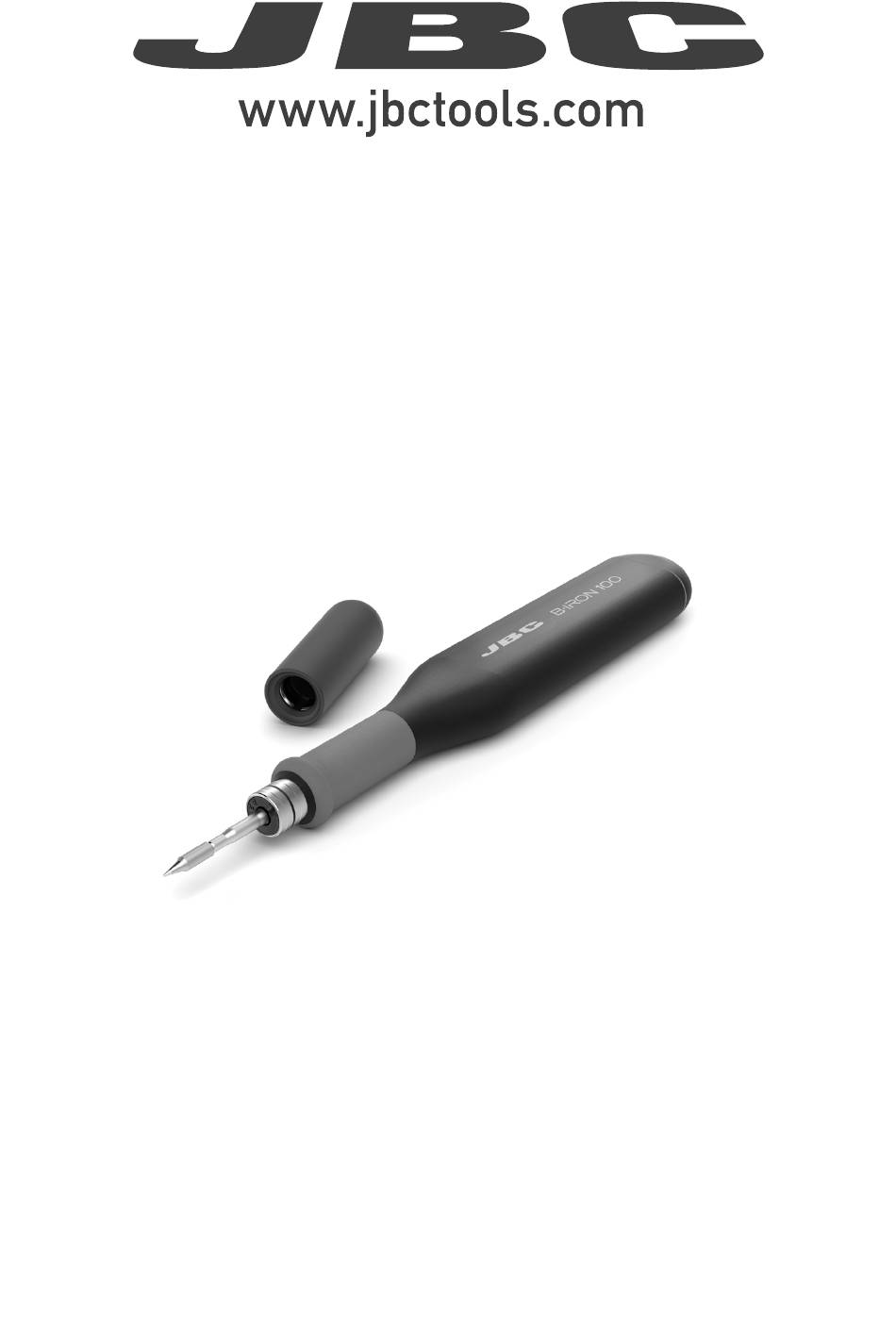

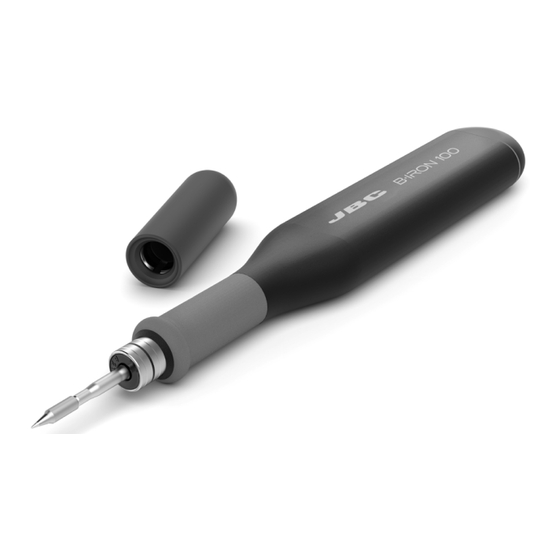

This manual corresponds to the following reference: B100-A Packing List The following items are included: B·IRON 100 TOOL Manual ............1 unit Precision Handle ........1 unit Ref. 0033098 Includes Ref. 0031596 Safety Cap for B·IRON handles. Cartridge not included, sold separately. Please read this manual and its safety guidelines thoroughly before using the product. -
Page 3: Compatible Cartridges
para manuales - color gris 200 mm Connection with B·IRON Station 130 mm 130 mm Bluetooth Connection 100 mm Portable Display 7” for B·IRON * 80 mm B·IRON 100 TOOL Precision Handle 60 mm 50 mm 40 mm USB Connector Power Socket Compatible Cartridges* B·IRON 100 TOOL works with C210 Cartridges. - Page 4 Cartridge Insertion and Charging 6. Cartridge Insertion and Charging Cartridge Exchanger Inserting Fixing Charging Cartridge Exchanger The cartridge exchanger saves time and allows to chan tool off. The cartridge exchanger saves time and allows to change cartridges safely without switching the tool off.
-
Page 5: Tool Selection
para manuales - color gris 200 mm Update Tool Selection 7. Tool Selection 130 mm 130 mm Select the tool from the device list. If the tool is not displayed on screen, make sure that the cap is off and the tool has some battery. Try scanning 24 W 100% again by tapping Scan (6) on the display. -
Page 6: Operation
Operation The JBC Most Efficient Soldering System MENU JBC#1 JBC#1 MENU This revolutionary technology can recover tip temperature extremely quickly. This allows the user to MENU JBC#1 WORK work at a lower temperature. 24 W 100% 450 ºC WORK 450 º... - Page 7 para manuales - color gris 200 mm Replacing Grips 130 mm 130 mm 1. Cutting 2. Removing Cutter 100 mm 80 mm Make a length-ways cut on the worn grip. Remove the worn grip. Be careful not to damage the handle. 60 mm 3.
-
Page 8: Maintenance
- Do not use liquids such as alcohol, thinner or benzene to clean the tablet. - Repairs should only be performed by a JBC authorized technical service. Clean the contact surfaces regularly to... - Page 9 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. - The power cord must be plugged into approved bases.
-
Page 10: Safety - Battery
- In the event of damage, leakage, or overheating of the batteries, discontinue use immediately and contact customer support or JBC technical service facility. - Dispose of devices with batteries inside, responsibly according to regulations. They must be disposed of in accordance with local regulations so that they can be recycled. -
Page 11: Specifications
para manuales - color gris 200 mm Specifications 130 mm 130 mm B·IRON 100 TOOL Precision Handle Ref.: B100-A 100 mm - Peak Power (Tool): 24 W - Battery: Li-Ion 7.4 V / 180 mAh - Charge Time: 30 minutes 80 mm - Selectable Temperature: 100 - 450 °C / 210 - 840 °F... - Page 12 Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
