Home Energy Meter Gen5 user guide.
Modified on: Mon, 18 Jan, 2021 at 2:24 AM
Aeotec Home Energy Meter Gen5.
e
Aeotec Home Energy Meter Gen5 was developed to measure current, voltage, power and transmit it via Z-Wave Plus
. It is powered by Aeotec's Gen5
technology. You can
(http://aeotec.com/z-wave-plus)
(http://aeotec.com/z-wave-gen5)
find out more about Home Energy Meter Gen5
by following that
(http://aeotec.com/z-wave-home-energy-measure)
link.
To see whether Home Energy Meter Gen5 is known to be compatible with your Z-Wave system or not, please
reference our Z-Wave gateway comparison
listing. The technical
(http://aeotec.com/z-wave-gateways)
specifications of Home Energy Meter Gen5
(https://aeotec.freshdesk.com/support/solutions/articles/6000168072-
can be viewed at that link.
home-energy-meter-gen5-technical-specifications-)

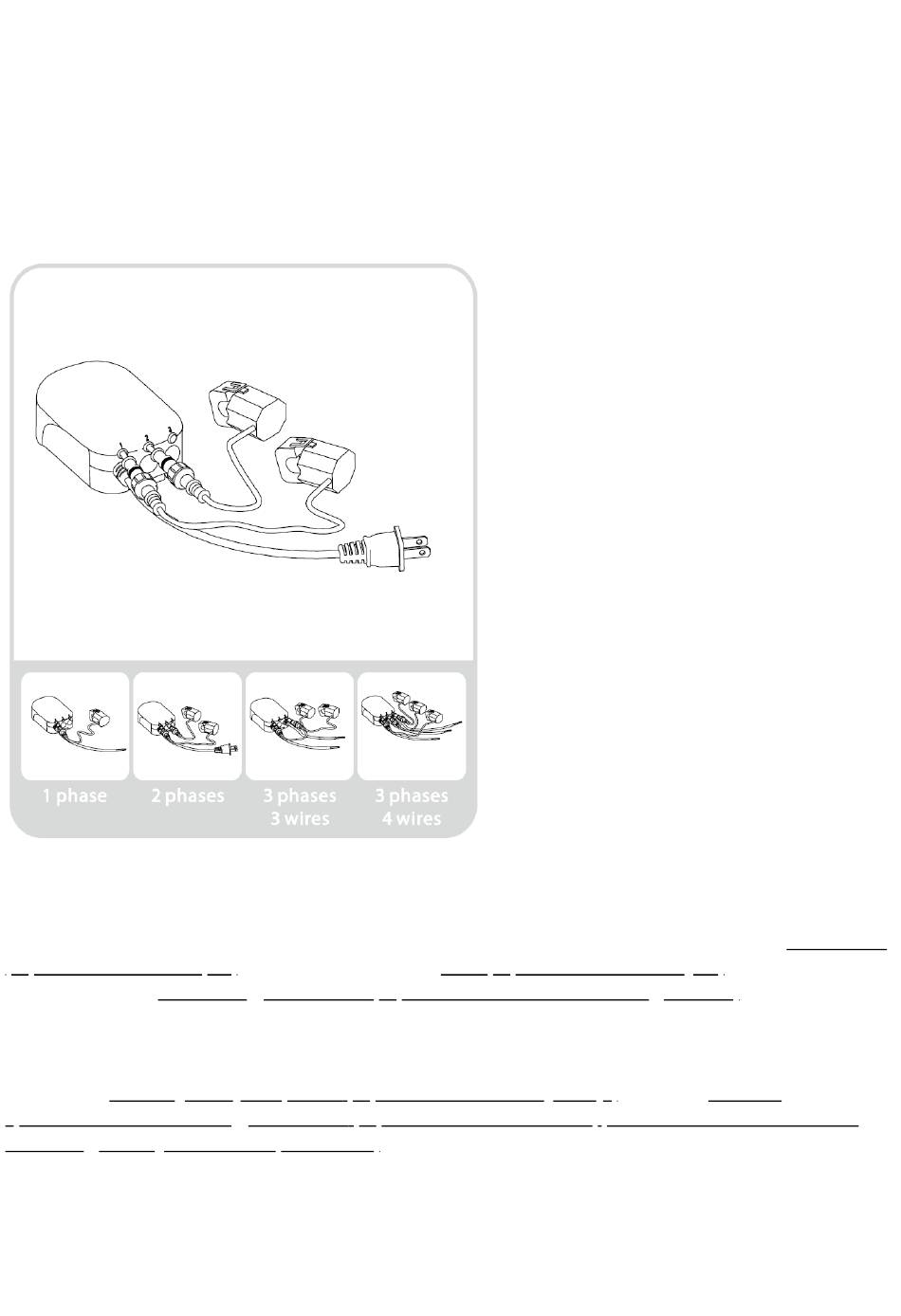

Familiarize yourself with your Home Energy Meter.
Your Home Energy Meter from Aeotec is comprised of two parts: the Main Body and Clamps. Once installed, the
meter will sit near your home's main circuit box, while the clamps are attached to it.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aeotec Home Energy Meter Gen5
Summary of Contents for Aeotec Home Energy Meter Gen5
- Page 1 find out more about Home Energy Meter Gen5 by following that (http://aeotec.com/z-wave-home-energy-measure) link. To see whether Home Energy Meter Gen5 is known to be compatible with your Z-Wave system or not, please reference our Z-Wave gateway comparison listing. The technical (http://aeotec.com/z-wave-gateways) specifications of Home Energy Meter Gen5...
- Page 2 Only a licensed electrician with knowledge and understanding of electrical systems and safety should complete the installation. Home Energy Meter Gen5’s current per clamp can not exceed 60, 100 or 200 amps based on the version you have. Refer to product's label or packaging for specific amperage information.
- Page 3 Important: Only a licensed electrician should perform these steps. Important: The circuit box's main breaker should be turned off to perform these installation steps. The following diagrams highlight how the Home Energy Meter should be installed dependent on the region you are in; ...
- Page 4 In 230 volt countries with a 3 phases and 3 wires installation; Diagram of EU/AU Version(3 Phases,3 Wires): In 230 volt countries with a 3 phases and 4 wires installation; Diagram of EU/AU Version(3 Phases,4 Wires):...
- Page 5 Wiring your Home Energy Meter. To perform the electrical installation for your Home Energy Meter (HEM), utilize the previous images to determine the phase version of the HEM and to also illustrate the following steps 3 through 7. 1. Turn off the home’s main electricity breaker and open the main circuit box panel. 2.
- Page 6 The Z-Wave commands supporting energy monitoring are the Meter Command Classes. SmartThings pair steps. Connect Home Energy Meter Gen5 to SmartThings (https://aeotec.freshdesk.com/support/solutions/articles/6000231626-setup-home-energy-meter-gen5-zw095-with- using SmartThings' Connect app, follow the dedicated instructions available at that link.
- Page 7 Parameter 101-103 [4 byte dec] can be configured through your gateway in case that the default settings of your meter are not what you desire. Please refer to this link to configure your Home Energy Meter to report what you want: https://aeotec.freshdesk.com/support/solutions/articles/6000191986-hem-gen5-parameter-101-103-and-111- 113-use- (https://aeotec.freshdesk.com/support/solutions/articles/6000191986-hem-gen5-parameter-101-103-and-111- 113-use-) You may also download the configuration sheet that can be used to easily choose and automatically calculate the...
- Page 8 You can find more advanced configurations for Home Energy Meter Gen5 in our Engineering Sheet section on our Freshdesk which can be used to integrate Home Energy Meter Gen5 into a new gateway or software, or use it as a reference for configurations.
