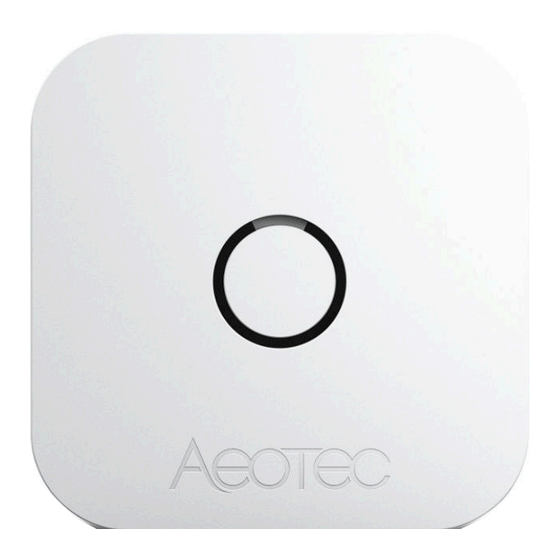

AërQ Temperature & Humidity Sensor
(ZWA039)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZWA039 and is the answer not in the manual?

Questions and answers

Related Manuals for Aeotec ZWA039

Summary of Contents for Aeotec ZWA039

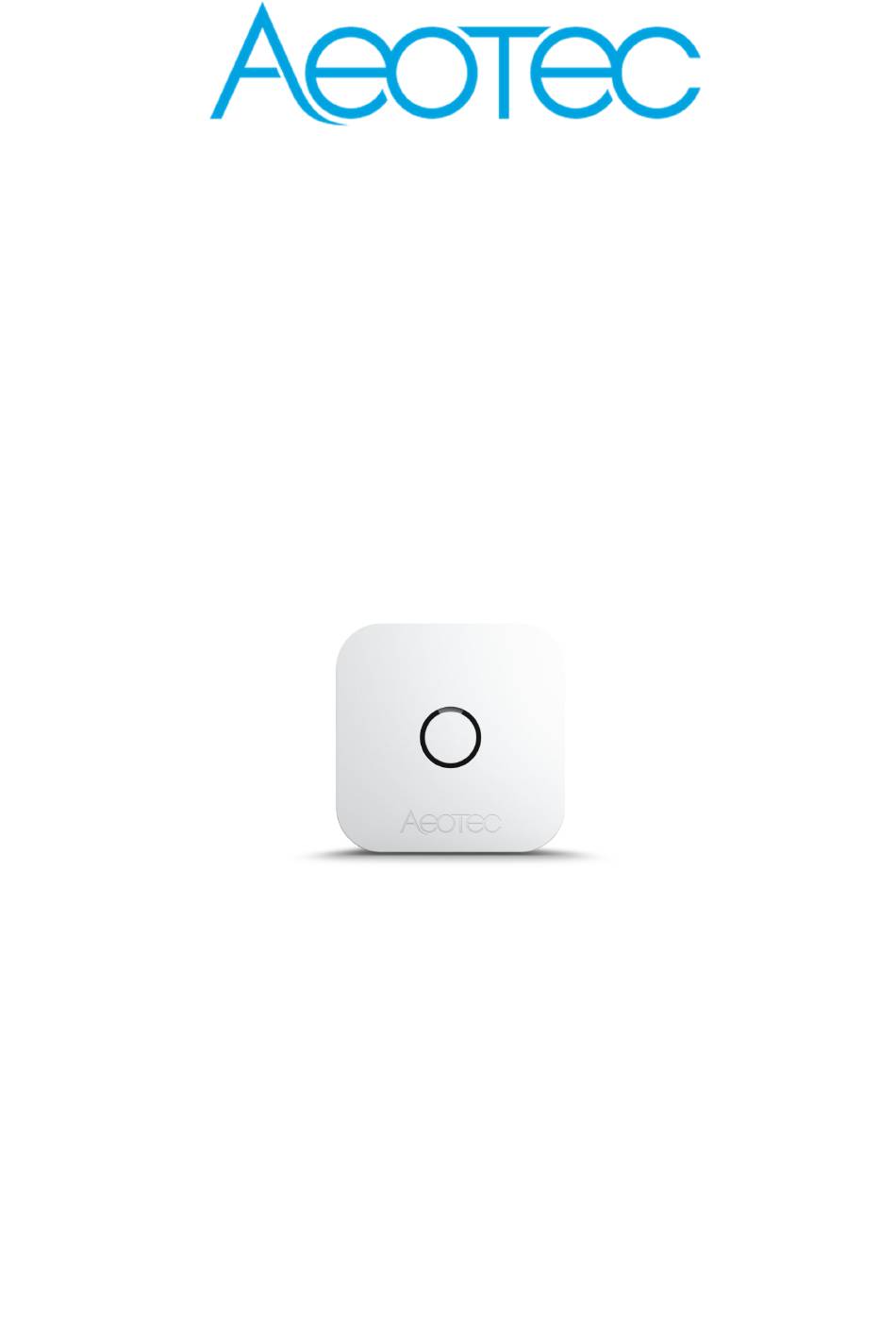

  • Page 1 AërQ Temperature & Humidity Sensor (ZWA039)

  • Page 2: Quick Start

    Quickstart This is a secure Alarm Sensor. To run this device please insert fresh 1 * CR2477 batteries. Please make sure the internal battery is fully charged. Triple clicking the central button includes (adds) and excludes (removes) the device. A click on the central button will wake up the device. The device supports the Security S2 framework with unauthenticated and authenticated network keys.

  • Page 3: Product Description

    Product Description This device measures the three air quality parameters temperature, humidity and dew point and reports them to a central controller. Besides this, the device can directly control groups of other Z-Wave devices on over- and undershooting a set temperature and/or humidity parameter. This can be used to establish control loops for temperature and humidity.

  • Page 4: Product Usage

    respective inclusion mode. Inclusion and Exclusion is then performed doing a special manual action right on the device. Inclusion 1. Insert the battery. 2. Press the button quickly three times in a row. Exclusion 1. Press the button quickly three times in a row. Product Usage Once the device is powered up it will start monitoring the air parameters and warn of mould using the local red and green LED.

  • Page 5: Firmware-Update Over The Air

    Firmware-Update over the Air This device is capable of receiving a new firmware 'over the air'. The update function needs to be supported by the central controller. Once the controller starts the update process, perform the following action to confirm the firmware update: Wake Up the device by pressing the central button once. Association - one device controls another device Z-Wave devices control other Z-Wave devices.
  • Page 6 disabled 1-100 0.1-10 degree Parameter 2: Minimum humidity change to report This value defines the minimum change of humidity to cause an unsolicited report of humidity to the central controller using Lifeline. If the value is set to 0, there will be no reports sent to the controller, when the humidity changes.
  • Page 7 disabled 1 - 1000 0.1-100 degree Parameter 6: Temperature Lower Watermark value This parameter defines a temperature. If the measured temperature drops below this watermark, a BASIC command is sent into Association Group 3. The Sensor will check the watermark value for an interval set by Parameter 16 or when the Sensor wakes up by button pressing.
  • Page 8 Setting Description 0 - 255 Value Parameter 10: High Temperature Trigger BASIC Set Command Value This defines what BASIC command shall be sent out into association group 2 Size: 1 Byte, Default Value: 0 Setting Description 0 - 255 Value Parameter 11: Low Humidity Trigger BASIC Set Command Value This defines what BASIC command shall be sent out into association group 5 Size: 1 Byte, Default Value: 255...
  • Page 9 -20 - 20 - 2 0 0 ~ 2 0 0 d e g r e e s Parameter 15: Offset value for Humidity Can add or minus this setting value to calibrate humidity when checked. Unit: %. Size: 1 Byte, Default Value: 0 Setting Description -50 - 50...

  • Page 10: Technical Data

    Parameter 255: Reset Parameter This parameter helps reset configuration parameters and the device to factory defaults Size: 4 Byte, Default Value: 0 Setting Description 1 – 4294967294 Reset all Parameter settings to their default settings. 4294967295 Completely factory reset sensor and send device reset locally notification. Technical Data Dimensions 34x34x16 mm...

  • Page 11: Supported Command Classes

    Supported Command Classes Binary Sensor Command Class, Version 2 (highest granted security level)  Configuration Command Class, Version 4 (highest granted security level)  Multilevel Sensor Command Class, Version 11 (highest granted security level)  Multi Channel Association Command Class, Version 3 (highest granted security level) ...
