- Page 1 Type 6211 2/2-way solenoid valve, servo-assisted Operating Instructions...
- Page 2 We reserve the right to make technical changes without notice. © Bürkert Werke GmbH & Co. KG, 2024 Operating Instructions 2401/00_EUen_ 00805814 / Original DE...
-
Page 3: Table Of Contents
Type 6211 Table of Contents TABLE OF CONTENTS 1 About this document.......................... 4 Document validity .......................... 4 Manufacturer............................. 4 Symbols ............................ 4 Terms and abbreviations ........................ 5 2 Safety ................................ 6 Intended use ............................. 6 Safety instructions .......................... 6 3 Product description ........................... 9 Product structure .......................... 9 Product identification ........................ 10 3.2.1... -
Page 4: About This Document
Before starting any work on the product, read and observe the respective sections of the document. Keep the document available for reference and give it to the next user. Contact the Bürkert sales office for any questions. Further information concerning the product at country.burkert.com. Document validity The document is valid for following device version: The device version is indicated on the type label. -
Page 5: Terms And Abbreviations
About this document Indicates a result. Menu Indicates a software user-interface text. Terms and abbreviations The terms and abbreviations are used in this document to refer to following definitions. Device 2/2-way solenoid valve, servo-assisted, Type 6211 Unit for relative pressure... -
Page 6: Safety
Type 6211 Safety SAFETY Intended use The device is designed to control the flow rate of media. The permitted media are listed in Technical data [} 12]. Prerequisites for safe and trouble-free operation are correct proper transportation, storage, installation, start-up, operation and maintenance. - Page 7 Type 6211 Safety Changes and other modifications, spare parts and accessories Changes to the device, incorrect installation or use of non-approved devices or components create hazards that can lead to accidents and injuries. Do not make any changes to the device.
- Page 8 Type 6211 Safety Working on the device Working on the device that has not been powered down, unauthorised switching on or uncontrolled start- up of the system can cause accidents. This can lead to serious personal injury or death. Only work on the device when it is not in use.
-
Page 9: Product Description

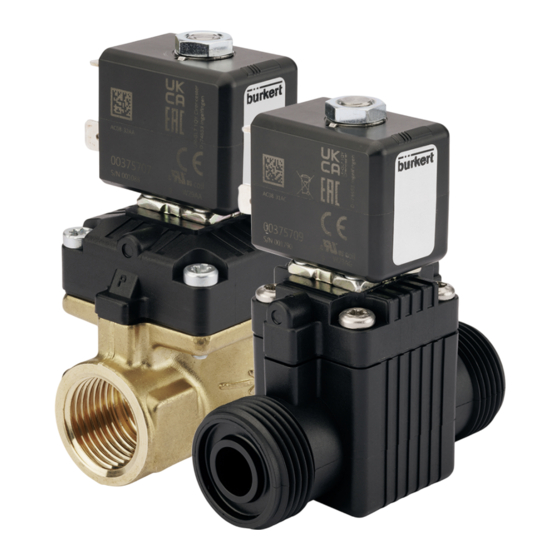

Type 6211 Product description PRODUCT DESCRIPTION The Type 6211 is a servo-assisted and compact 2/2-way piston valve. Servo-assisted diaphragm valve up to DN20 Body available in brass, stainless steel and plastic Explosion-proof variants Damped design for low noise DANGER! Risk of injury from high pressure and discharge of medium. -
Page 10: Product Identification
Type 6211 Product description Product identification 3.2.1 Type label Fig. 2: Type 6211EV type label 1 Type 2 Circuit function 3 Orifice 4 Sealing material 5 Body material 6 Operating pressure 7 Nominal power 8 CE marking 9 Article number 10 Operating voltage 11 Port connection Fig. 3: Type 6211EV laser marking... -
Page 11: Functionality
Type 6211 Product description Functionality 3.3.1 Circuit function Icon Description 2 (A) Circuit function A (CF A), NC 2/2-way solenoid valve, servo-assisted 1 (P) Normally closed Tab. 1: Circuit function... -
Page 12: Technical Data
Type 6211 Technical data TECHNICAL DATA Standards and directives The device complies with the valid EU harmonisation legislation. In addition, the device also complies with the requirements of the laws of the United Kingdom. The harmonised standards that have been applied for the conformity assessment procedure are listed in the current version of the EU Declaration of Conformity/UK Declaration of Conformity. -
Page 13: Installation
Type 6211 Installation INSTALLATION Risk of injury or material damage when working on the device or system. Read and observe the chapter Safety [} 6] before working on the device or system. Preparatory work DANGER! Risk of injury from high pressure and discharge of medium. -
Page 14: Coil Installation
Type 6211 Installation NOTICE! Breaking hazard The coils may be damaged by mechanical stress. Do not use the coil as a lever arm. Coil installation WARNING! Risk of injury due to medium leak Medium may leak if a firmly fastened nut is loosened. -
Page 15: Cable Plug Installation
Type 6211 Installation Fig. 5: Installing coil 1 Nut 2 O-ring 3 Anti-twist device Check the correct positioning of the O-ring on the valve body. Slide the coil onto the core guide tube. Fasten the nut with an open-end wrench. When screwing in, observe the tightening torque indicated in the following table. - Page 16 Type 6211 Installation Fig. 6: Install the cable plug 1 Seal Electric shock due to electrical components Touching live parts can result in severe electric shock. This can lead to serious personal injury or death. Before working on the device or system, switch off the power supply. Secure it against reactivation.
-
Page 17: Electrical Connection
Type 2507 cable plug, plug shape B (industry standard) according to DIN EN 175301-803 Other cable plug variants can be found on the data sheet for Type 2507 at country.burkert.com. Fig. 7: Type 2507 cable plug, plug shape B (industry standard) according to DIN EN 175301-803 Fig. 8: Type 2507 cable plug dimensions... -
Page 18: Type 2516 Cable Plug, Plug Shape C According To Din En 175301-803
Type 2516 cable plug, plug shape C according to DIN EN 175301-803 Other cable plug variants can be found on the data sheet for Type 2516 at country.burkert.com. Fig. 9: Type 2516 cable plug, plug shape C according to DIN EN 175301-803 Fig. 10: Type 2516 cable plug, dimensions... -
Page 19: Faults
Type 6211 Faults FAULTS DANGER! Risk of injury from high pressure and discharge of medium. Before working on the device or system, switch off the pressure. Vent or drain lines. WARNING! Risk of injury from electric shock. Switch off the power supply before working on the device or system. Secure it against reactivation. -
Page 20: Spare Parts And Accessories
Type 6211 Spare parts and accessories SPARE PARTS AND ACCESSORIES CAUTION! Risk of injury, property damage due to incorrect parts. Incorrect options and unsuitable spare parts can cause injuries to people and damage to the appliance and its surroundings. Only use original options and original spare parts from Bürkert. - Page 21 Type 6211 Spare parts and accessories Fig. 11: Spare part sets 1 SET1: Coil set 2 SET3: Wearing part set 3 SET7: Stopper set...
-
Page 22: Disassembly
Type 6211 Disassembly DISASSEMBLY Preparatory work Electric shock due to electrical components Touching live parts can result in severe electric shock. This can lead to serious personal injury or death. Before working on the device or system, switch off the power supply. Secure it against reactivation. -
Page 23: Logistics
Type 6211 Logistics LOGISTICS 10.1 Transport and storage Protect the device against moisture and dirt in the original packaging during transportation and storage. Avoid UV radiation and direct sunlight. Protect connections from damage with protective caps. Observe permitted storage temperature.
