FingerTec Kadex Installation Manual

Card reader for time attendance & door access control system
Hide thumbs Also See for Kadex:

Advertisement

Quick Links

Installation Guide
w
15-01-01
THU
Kadex
Card Reader for Time Attendance &
Door Access Control System
© 2015 Timetec Computing Sdn Bhd. All rights reserved.• 022015

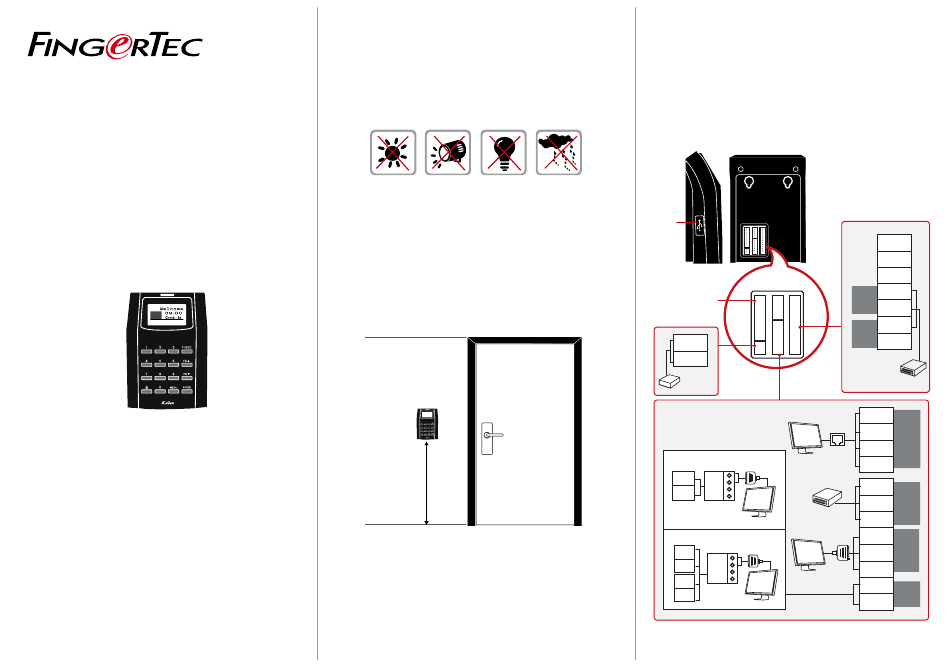

Step 1
Determine the Location and Positioning
of the Installation
Avoid installing the terminals in locations that has contact with
a strong light source (e.g direct sunlight, spotlight, fluorescent
light, etc)
Avoid installing the terminals in locations prone to high moisture
or condensation levels in the air
The recommended installation height of the terminal from the
ground is 1.2 meter.
Step 2
Mounting Terminals
4 feet / 1.2 meter
(recommended)
After measuring the height accordingly and make relevant marking
on the wall, drill the screws into the wall to secure the back plate.
Attach the terminal to the back plate and tighten the screws. Refer to
Appendix II for dimensions and measurements of installation.
Step 3
Wiring for Power Supply
The power input ports for these models are located at the rear of
the terminals. There is no adapter plug supplied with the models,
instead you need to source for power cable (red and black cables)
to connect the power from the terminal to the AdapTec.
USB
.
.
Port
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Door Lock connector.
.
.
.
.
.
Refer to Appendix I
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
GND
.
.
.
+12V
DC12V3A
Power
Supply
TCP/IP
1. RS485 Single Connection
485B
RX+
485A
RX-
RS232/RS485
3rd party controller
Data Converter
with 26-bits wiegand
input
2. RS485 Network Connection
485B
RX+
485A
RX-
485B
RS232/RS485
485A
Data Converter
BEEP
GLED
RLED
INWD0
Wiegand
IN
INWD1
GND
Power
OUT
+12V
3rd party
controller with
26-bits wiegand
output
RJ45-1
RJ45-2
TCP/IP
RJ45-3
RJ45-6
WD0
Wiegand
WD1
OUT
GND
RXD
RS232
TXD
GND
RS232
cable
485+
RS485
485-
