Summary of Contents for Kodak i1150 Series
- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Kodak i1150 o cerca il tuo prodotto tra le migliori offerte di Scanner...
- Page 2 3rd Party Licenses This software is based in part on the work of the Independent JPEG Group Copyright (C)2009-2013 D. R. Commander. All Rights Reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
- Page 3 • The product packaging is recyclable. • Parts are designed for reuse and recycling. • The Kodak i1100 Series Scanners are Energy Star compliant and are shipped from the factory with the default time set to 15 minutes. European Union This symbol indicates that when the last user wishes to discard this product, it must be sent to appropriate facilities for recovery and recycling.
- Page 4 EMC statements United States: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 5 OVERVIEW INSTALLATION SCANNING MAINTENANCE TROUBLESHOOTING APPENDICES A & B...
- Page 6 PC processor. A lower spec PC can be used to support the i1190E Scanner. • Kodak ScanMate i1150 Scanner — duplex scanner that scans 30 pages per minute at 200 and 300 dpi in black and white, color and grayscale with “burst”...
- Page 7 Keep this guide close to the scanner so you can use it as an easy reference. Accessories • Kodak A3 Size Flatbed Accessory — the Kodak A3 Size Flatbed adds scanning capability for exception documents up to 11 x 17-inch (A3) size paper. CAT No. 189 4351 •...

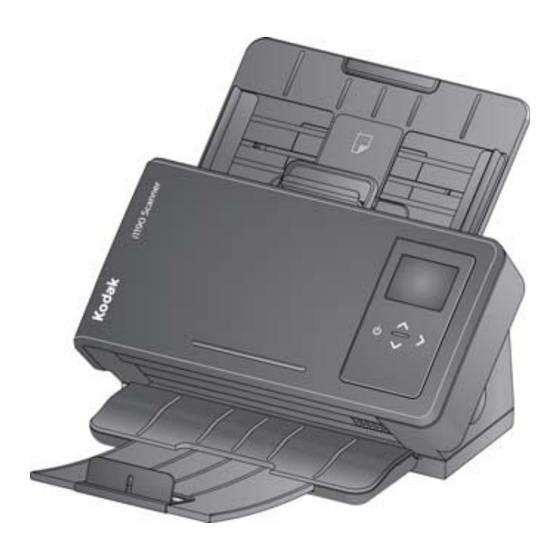

- Page 8 Scanner components Front view Input tray — the input tray holds up to the 75 documents for the i1150 Scanner, and 75 documents for the i1190 and i1190E Scanners (20 lb./80 g/m ) and can be extended to accommodate documents up to legal size (14 inches). Side guides —...
- Page 9 Indicates that no documents are in the input tray. If your scanner is connected to an optional Kodak A3 or Legal Flatbed Accessory, and there are documents in the input tray, the scanner will scan from the input tray.
- Page 10 Back view 1 Security lock port — connects a security lock to the scanner. You can purchase a standard security lock at an office supply store. Refer to the instructions provided with the security lock for installation procedures. 2 Power port — connects the power supply to the scanner. 3 USB port —...
- Page 11 Inside view 1 Paper present sensor — detects the presence of documents in the input tray. 2 UDDS and IDP sensor — used to detect multifeeds and document edges. 3 Pre-separation pad — pull this pad out of position when cleaning or changing the separation roller.
-
Page 12: Table Of Contents
NOTE: If you have already performed all of the steps in the Installation Guide, skip this section. Installing the Kodak Driver 1. Insert the Kodak i1100 Series Scanners Installation disk in the disk Software: Windows drive. The installation program starts automatically. -
Page 13: Installing The Kodak Driver Software: Linux
Installing the Kodak Driver Linux drivers can be found on the Kodak Alaris website. Visit Software: Linux operating www.kodakalaris.com/go/IMsupport to obtain the most recent Linux systems drivers and installation procedures. Install the driver software before connecting the scanner to your PC. - Page 14 Connecting the power When the drivers have been installed, connect the power adapter and adapter and USB cable USB cable to the scanner. Refer to the illustration below for making proper connections. Make sure the power outlet is located within 1.52 metres (5 feet) of the scanner and is easily accessible.
-
Page 15: Turning The Scanner Off
5. Attach the other end of the USB cable to the proper USB port on your PC. Your scanner will automatically power up and be ready to use. ‘Waking up’ the scanner If the scanner is not already powered on, touch any button on the scanner (i.e., Up, Down, Start or Power). - Page 16 3 Scanning Contents Getting your scanner ready to scan ..........3-1 Getting your documents ready to scan ........... 3-2 Scanning with Smart Touch ............3-4 Getting your scanner 1. Be sure the scanner is on and ready to scan (Power button will be green and constant).
- Page 17 3. If necessary, adjust the input and output trays to accommodate your scanning needs. The output tray can be extended to accommodate documents up to 35.56 cm (14 inches) in length. An end stop is available to accommodate document stacking. Lift this end stop as needed for scanning documents up to A4 (11.7 inches).
- Page 18 When in a batch, you need to place the small document first in the batch. Smart Touch — the Smart Touch application may have been installed when you installed the Kodak Driver Software. Kodak Alaris provides Smart Touch functionality which allows you to quickly and easily perform common scanning tasks;...
- Page 19 Output folder in the Smart Touch directory under “My Documents”. NOTE: If you have a Kodak ScanMate i1150 Scanner and you are scanning 10 documents or less, your scanner will scan these documents at 40 pages a minutes (burst mode). Anything over...
- Page 20 4 Maintenance Contents Opening the scanner cover............. 4-1 Cleaning procedures............... 4-2 Cleaning the rollers ..............4-2 Cleaning the separation roller ............ 4-3 Cleaning the feed rollers ............4-5 Cleaning the imaging area ............4-8 Running a transport cleaning sheet..........4-8 Replacement procedures ...............
-
Page 21: Cleaning Procedures
IMPORTANT: Only use cleaners such as those recommended by Kodak Alaris. Do not use household cleaners. Allow surfaces to cool to ambient temperature before use. Do not use cleaners on hot surfaces. -
Page 22: Cleaning The Separation Roller
Cleaning the separation The separation roller should be removed from the scanner for best roller cleaning results. 1. Remove the pre-separation pad by grasping it and pulling it straight out. 2. Grasp the separation roller and pull it straight out. 3. - Page 23 5. Insert the separation roller by aligning the tab with the slot and snapping it into position. 6. Re-install the pre-separation pad by aligning the slots with the holes on the pre-separation pad and snapping it into place. A-61816 January 2016...
-
Page 24: Cleaning The Feed Rollers
Cleaning the feed rollers 1. Remove the input tray. 2. Grasp the top edge of the feed roller cover and lift it out of position. NOTE: Be careful not to damage the paper present sensor when removing or cleaning around the feed roller. 3. - Page 25 4. Rotate the lower feed roller so the pin is positioned with the open slot, then lift the roller out of position. 5. Wipe the top and lower feed roller tires with a roller cleaning pad. A-61816 January 2016...
- Page 26 6. Inspect the feed rollers. If the feed roller tires show signs of wear or damage, replace the feed roller. See the “Replacement procedures” for more information. 7. Reinstall the lower feed roller by aligning the pin with the open slot and fitting it into position.
-
Page 27: Cleaning The Imaging Area
Cleaning the imaging area 1. Wipe the upper and lower imaging area using a Brillianze Detailer wipe (Step 1) or Staticide wipe. Be careful not to scratch the imaging area when cleaning. IMPORTANT: Staticide wipes contain isopropanol which can cause eye irritation and dry skin. -
Page 28: Replacement Procedures
Replacement Kodak Scanners use replaceable feed roller modules that can feed a wide range of document types, sizes and thicknesses. Module life and procedures performance will vary based on the customer’s document set, the frequency of cleaning the paper path and tires, and following the recommended schedule for changing the module. -
Page 29: Replacing The Pre-Separation Pad
Replacing the pre- 1. Remove the pre-separation pad by grasping it and pulling it out of separation pad position. 2. Discard the worn pre-separation pad. 3. Install the new pre-separation pad by aligning the slots with the holes on the pre-separation pad and snapping it into place. 4-10 A-61816 January 2016... -
Page 30: Replacing The Feed Roller
Replacing the feed roller 1. Remove the input tray. 1. Pull on the edge of the feed roller cover and lift it out of position. NOTE: Be careful not to damage the paper present sensor when removing or cleaning around the feed roller. 2. - Page 31 3. Rotate the lower feed roller so the pin is positioned with the open slot, then lift the roller out of position. 4. Install a new lower feed roller and top feed roller by aligning the pins with the open slots and fitting each roller into position. Be sure the gears are aligned and the roller snaps into place.
-
Page 32: Supplies And Consumables
Kodak Digital Science Roller Cleaning Pads (qty 24) 853 5981 Kodak Digital Science Transport Cleaning Sheets (qty 50) 169 0783 Staticide Wipes for Kodak Scanners (qty 6 boxes of 24) 896 5519 Brillianize Detailer Wipes / for Kodak Scanners 826 6488... - Page 33 5 Troubleshooting Contents Problem solving ................5-1 Indicator lights................. 5-2 Contacting Service................5-2 Problem solving Occasionally you may encounter a situation with your scanner where it may not function properly. Use the chart below as a guide to check possible solutions to help you resolve the situation before calling Technical Support.
- Page 34 Problem Possible Solution Make sure that: Scanner will not scan/feed documents • the power adapter is plugged securely into the back of scanner and the wall outlet. • the wall outlet is not defective (call a licensed electrician). • the PC was restarted after installing the software. •...
- Page 35 This appendix provides scanner specifications and system requirements. Scanner Type/Speed Kodak ScanMate i1150 Scanner — a duplex scanner that scans 30 pages per minute at 200 and 300 dpi in black and white, color and grayscale with “burst” (throughput speeds may vary...
- Page 36 Operating: less than 64 dB(A) (Sound Pressure level) Idle mode: less than 40 dB(A) Windows: TWAIN, ISIS, WIA drivers; Smart Touch; Kodak Capture Pro Software Bundled Software Limited Edition; Kodak Capture Pro Software Trial Edition LINUX: SANE and TWAIN Drivers (available via web download MAC: NEWSOFT PRESTO! PAGEMANAGER;...
- Page 37 Kodak Alaris or through Kodak Alaris’ authorized distribution channels: Kodak Alaris Inc. warrants that a Kodak Scanner, from the time of sale through the Limited Warranty period applicable to the Product, will be free of defects in materials or workmanship and will conform to the performance specifications applicable for the particular Kodak Scanner.
- Page 38 Warranty Service descriptions Kodak Alaris offers a range of service programs to support its Limited Warranty and to assist with the use and care of the Kodak Scanner (“Service Methods”). A Kodak Scanner represents an important investment. Kodak Scanners provide the productivity needed to stay competitive.
- Page 39 Scanners must obtain a Return Material Authorization number (“RMA”) by calling (800) 822-1414, and within ten (10) business days from the date of issuance of the RMA must return the Kodak Scanner to the address designated in the RMA at the end user’s own expense and risk.
- Page 40 Website: www.kodakalaris.com/go/docimaging For U.S. Service, Repair and Technical Assistance by Telephone: Telephone technical support is available Monday-Friday between the hours of 5 a.m. to 5 p.m. excluding Kodak Alaris holidays. Phone: (800) 822-1414 For Technical Documentation and FAQ’s available 24 hours a day: Website: www.kodakalaris.com/go/docimaging...
