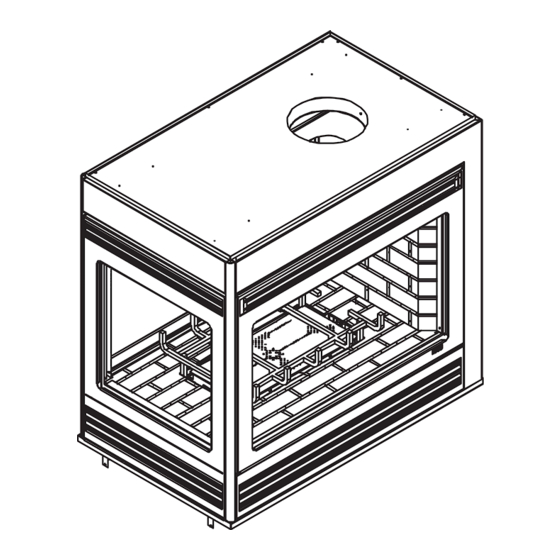

Models:
R-3DVFS-B
RST-DVFS-B
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
- Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
- What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
Printed in U.S.A. Copyright 2001,
Royal Fireplaces, a division of Hearth Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

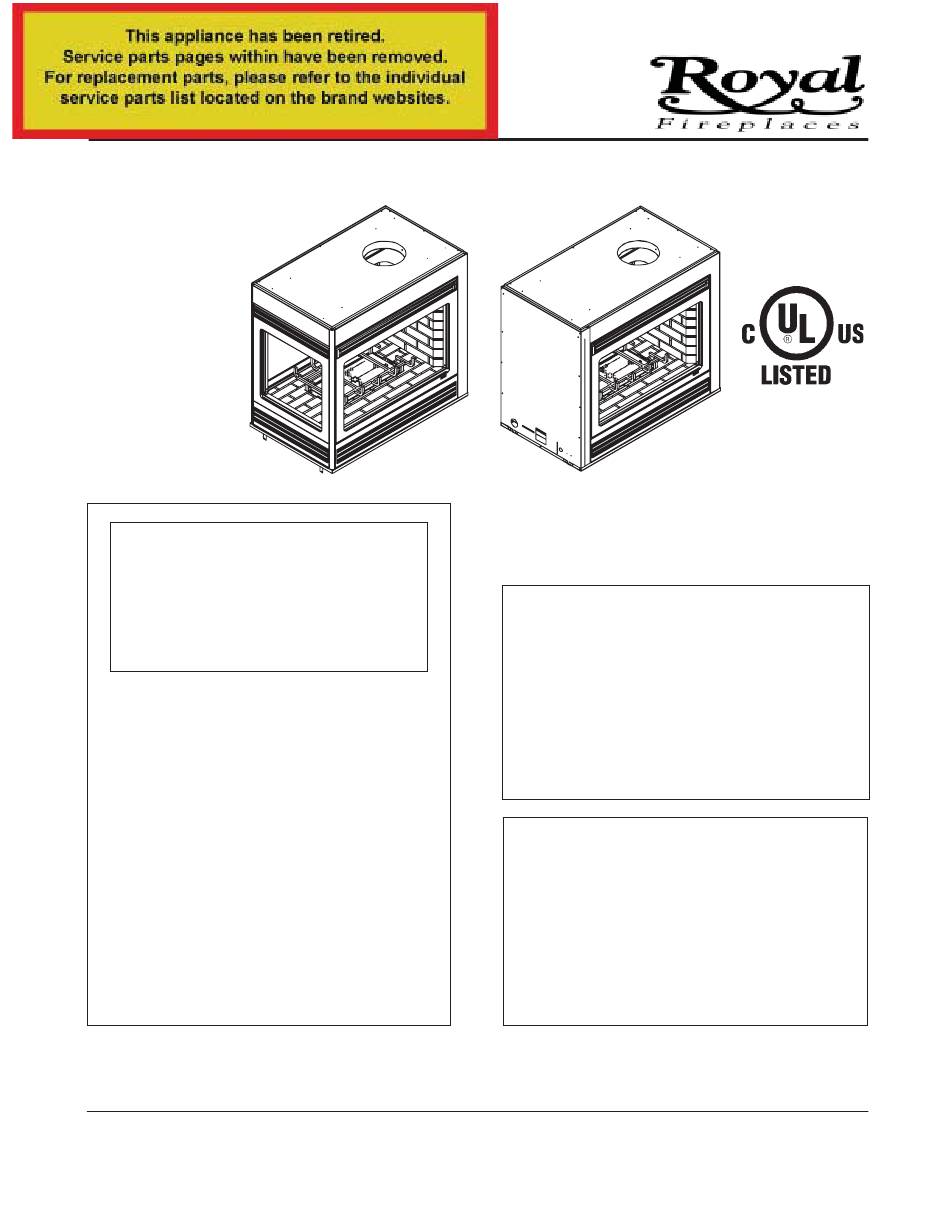

R-3DVFS-B
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTURE REFERENCE.
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE OR ADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICE AGENCY, OR THE
GAS SUPPLIER.
1. This appliance may be installed in an af-
termarket, permanently located, manufac-
tured (mobile) home, where not prohibited
by local codes.
2. This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
Please contact your Royal Fireplaces dealer with
any questions or concerns. For the number of your
nearest dealer, please call 1-800-393-9484.
1
Installers Guide
Underwriters
Laboratories Listed
RST-DVFS-B
465-900H 7/01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Royal Fireplaces R-3DVFS-B and is the answer not in the manual?

Questions and answers

Related Manuals for Hearth Technologies Royal Fireplaces R-3DVFS-B

Summary of Contents for Hearth Technologies Royal Fireplaces R-3DVFS-B

  • Page 1 Printed in U.S.A. Copyright 2001, Please contact your Royal Fireplaces dealer with any questions or concerns. For the number of your Royal Fireplaces, a division of Hearth Technologies Inc. 20802 Kensington Boulevard, Lakeville, MN 55044 nearest dealer, please call 1-800-393-9484.

  • Page 2: Safety And Warning Information

    SAFETY AND WARNING INFORMATION These units MUST use one of the vent systems READ and UNDERSTAND all instructions carefully described in the Installing the Fireplace section of before starting the installation. FAILURE TO the Installers Guide. NO OTHER vent systems or FOLLOW these installation instructions may result components MAY BE USED.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Safety and Warning Information ..........2 Service Parts Lists ..............4 Section 1: Approvals and Codes ..........8 Appliance Certification..............8 Installation Codes ................8 High Altitude Installations ............... 8 Section 2: Getting Started ............9 Introducing the Royal Gas Fireplaces ........... 9 Pre-installation Preparation ............

  • Page 4: Section 1: Approvals And Codes

    Approvals and Codes High Altitude Installations Appliance Certification The Royal fireplace models discussed in this Installers Guide U.L. Listed gas fireplaces are tested and approved for have been tested to certification standards and listed by elevations from 0 to 2,000 feet in the U.S.A. and from 0 to 4,500 feet in Canada.

  • Page 5: Section 2: Getting Started

    • Installation and/or use of any component part not manu- This gas fireplace and its components are tested and safe factured and approved by Hearth Technologies, not with- when installed in accordance with this Installers Guide. standing any independent testing laboratory or other party Report to your dealer any parts damaged in shipment, approval of such component part or accessory.
  • Page 6 13 (331mm) 24 1/4 (616mm) 12 1/8 (308mm) VENT COLLARS 42 3/4 (1086mm) ELECTRICAL ACCESS GAS LINE ACCESS (1043mm) 36 7/8 (937mm) 28 7/8 (735mm) 2 1/2 2 1/2 (64mm) (6mm) 36 7/8 (937mm) 24 1/4 (616mm) 4 (102mm) 4 (102mm) 40 3/4 (1035mm) LEFT SIDE FRONT...
  • Page 7 45 (1143mm) 13 (330mm) 24 1/4 (616mm) 12 1/8 (308mm) VENT COLLARS ELECTRICAL (1042mm) GAS LINE ACCESS ACCESS 36 7/8 (937mm) 28 7/8 (733mm) 2 1/2 2 1/2 (64mm) (64mm) 36 1/8 (918mm) 4 (102mm) 43 (1093mm) 4 (102mm) 24 1/4 (616mm) LEFT SIDE FRONT RIGHT SIDE...

  • Page 8: Section 3: Installing The Fireplace

    Installing the Fireplace Step 1. Locating the Fireplace Minimum Clearances The diagram below shows space and clearance require- from the Fireplace to Combustible Materials ments for locating a fireplace within a room. Inches Glass Sides or Ends ..36 ....914 Floor ........
  • Page 9 Shows center of 12” x 12” vent framing holes for top and rear venting. The center of the hole is one inch (25.4mm) above the center of the horizontal vent pipe. RST-DVFS-B R-3DVFS-B Framing should be constructed of 2 X 4 lumber or heavier.
  • Page 10 8 5/8” (220mm) DV-45D 35 3/4” 47 3/4” (908mm) (1.2m) 11 3/4” (298mm) 8 3/4” 5 3/4” (222mm) (146mm) DV-09D DV-12D DV-06D NOTE: PIPES OVERLAP 1-3/8 INCHES (34.93mm) AT EACH JOINT. Figure 5. D-Series Direct Vent Component Specifications (5-inch inner pipe / 8 5/8-inch outer pipe)

  • Page 11: Step 3 Installing The Vent System

    Step 3. Installing the Vent System Identifying Vent Components The vent systems installed on this gas fireplace may in- A. Vent System Approvals clude one, two, or three 90° elbow assemblies. The rela- These models are approved to use D-series direct vent pipe tionships of vertical rise to horizontal run in vent configura- components and terminations (see Figures 5 and 6).
  • Page 12 STRAIGHT UP VERTICAL VENTING V (FT.) 40' MAX. (12.4 M) Figure 7. Straight Up Vertical Venting STRAIGHT OUT HORIZONTAL VENTING Max. Run 24" (610 mm) Figure 8. Straight Out Horizontal Venting...
  • Page 13 VENTING WITH ONE (1) 90° ELBOW 1' MIN. (305mm) 2' MAX. (610mm) 2' MIN. (610mm) 4' MAX. (1.22m) 3' MIN. (914mm) 6' MAX. (1.86m) 4' MIN. (1.22m) 8' MAX. (2.4m) V+H=37' MAX. (11.3m) H = 8' MAX. (2.4m) Figure 9. Venting with One 90°...
  • Page 14 VENTING WITH TWO (2) 90° ELBOWS V (FT.) H + H (FT.) 1' MIN. (305mm) 3' MAX. (914mm) 2' MIN. (610mm) 6' MAX. (1.86m) 3' MIN. (914mm) 9' MAX. (2.7m) 4' MIN. (1.22m) 12' MAX. (3.6m) 5' MIN. (1.5m) 15' MAX. (4.5m) 6' MIN.
  • Page 15 VENTING WITH TWO (2) 90° ELBOWS H + H 1' MIN. (305 mm) 2' MAX. (610 mm) 3' MAX. (914 mm) 2' MIN. (610 mm) 4' MAX. (1.22 m) 6' MAX. (1.86 m) 3' MIN. (914 mm) 6' MAX. (1.86 m) 9' MAX.
  • Page 16 VENTING WITH THREE (3) 90° ELBOWS VENTING WITH THREE (3) 90° ELBOWS 1' MIN. (305 mm) 2' MAX. (610 mm) 3' MAX. (914mm) 2' MIN. (610 mm) 4' MAX. (1.22 m) 6' MAX. (1.86 m) 3' MIN. (914 mm) 6' MAX. (1.86 m) 9' MAX.
  • Page 17 VENTING WITH THREE (3) 90° ELBOWS V (FT.) H (FT.) 1' MIN. (305mm) 3' MAX. (914mm) 2' MIN. (610mm) 6' MAX. (1.86m) 3' MIN. (914mm) 9' MAX. (2.7m) 4' MIN. (1.22m) 12' MAX. (3.6m) 17' MAX. (5.1m) NOTE: H + H = 17' MAX.

  • Page 18: Installing Vent Components

    B. Installing Vent Components 1. Attach the First Vent Component to the Starting Collars After determining which set of starting collars will be used (top or rear), follow venting instructions accordingly. To attach the first vent component to the starting collars of the fireplace: Venting Out the Rear Vent Remove the installed rear seal cap from the rear starting...
  • Page 19 2. Continue Adding Vent Components WALL BRACKET • Continue adding vent components, locking each succeed- ing component into place. • Ensure that each succeeding vent component is secure- WALL STUD ly fitted and locked into the preceding component in the vent system.
  • Page 20 For Vertical Runs - One ceiling firestop is REQUIRED at If the area above the ceiling is NOT an attic, position and the hole in each ceiling through which the vent passes. secure the ceiling firestop on the ceiling side of the previously cut and framed hole.

  • Page 21: Vent Termination

    C. Vent Termination For Horizontal Terminations - To attach and secure the ROUND CAP TERMINATION termination to the last section of horizontal vent: • Rotate and interlock the ends as described at the begin- PERFORATION CANNOT BE ning of the Installing Vent Components section. INSIDE THE WALL •...
  • Page 22 openable fixed closed J or K 1 2 3 4 1 2 3 4 =AIR SUPPLY INLET =AREA WHERE TERMINAL IS NOT PERMITTED =VENT TERMINAL 1 2 3 4 1 2 3 4 = 3 ft. (U.S.A.) = 12" ....clearances above grade, veran- 6 ft.

  • Page 23: Step 4 Positioning, Leveling, And Securing The Fireplace

    For Vertical Terminations - To locate the vent and install the vent sections: HORIZONTAL OVERHANG • Locate and mark the vent centerpoint on the underside of the roof, and drive a nail through the centerpoint. 2 FT. 2 FT. MIN. VERTICAL MIN.

  • Page 24: Step 5 The Gas Control Systems

    Step 7. Gas Pressure Requirements approved and/or licensed as required by the locality. Pressure requirements for Hearth Technologies gas NOTE: Before the first firing of the fireplace, the gas fireplaces are shown in the table below.

  • Page 25: Step 8 Wiring The Fireplace

    BLACK S2 REMOTE SWITCH 3/16” PIGGYBACK CONNECTOR PIGTAIL ON/OFF WHITE T2 SWITCH GAS VALUE RED T1 THERMOPILE THERMOCOUPLE OPTIONAL WALL SWITCH, BLACK S1 Figure 31. Standing Pilot Ignition Wiring Diagram THERMOSTAT OR REMOTE Step 8. Wiring the Fireplace Optional Accessories NOTE: Electrical wiring must be installed by a licensed electrician.

  • Page 26: Step 9 Finishing

    CAUTION: IF JOINTS BETWEEN THE FINISHED WALLS Step 9. Finishing AND THE FIREPLACE SURROUND (TOP AND SIDES) Figure 33 shows the minimum vertical and corresponding ARE SEALED, A 300° F. MINIMUM SEALANT MATE- maximum horizontal dimensions of fireplace mantels or other RIAL MUST BE USED.

  • Page 27: Step 10 Installing Trim, Logs, And Ember Material

    Step 10. Installing Trim, Logs, Placing the Ember Material and Ember Material Ember material is shipped with this gas fireplace. The bag Installing the Trim labeled Golden Ember (GE-93) is flame colorant material. The bag labeled Glowing Ember (050-721) is standard glow- Combustible materials may be brought up to the specified ing ember material.

  • Page 28: Step 11 Before Lighting The Fireplace

    Step 12. Lighting the Fireplace Step 11. Before Lighting the Fireplace You’ve reviewed all safety warnings, you’ve checked the Before lighting the fireplace, be sure to do the following: fireplace for gas leaks, you know the vent system is Remove all paperwork from underneath the fireplace. unobstructed, and you’ve checked for faulty components.

  • Page 29: Section 4: Maintaining And Servicing Your Fireplace

    Maintaining and Servicing Your Fireplace Fireplace Maintenance Although the frequency of your fireplace servicing and main- tenance will depend on use and the type of installation, you should have a qualified service technician perform an appli- ance check-up at the beginning of each heating season. See the table below for specific guidelines regarding each fireplace maintenance task.
