HYGGER HG-951 - Eco Slim Wave Maker Pump Manual

Instruction

This wave maker ocean according to five time range of Dawn, Sunrise, DayIight, Sunset and Moonlight. Each time range the wave mode, intensity and wave frequency adjustable.

Installation

Install the wave maker at the position 15-20cm below water level. Place the magnetic mount outside of tank, The wave maker can be up and down of any direction according to the actual situation.

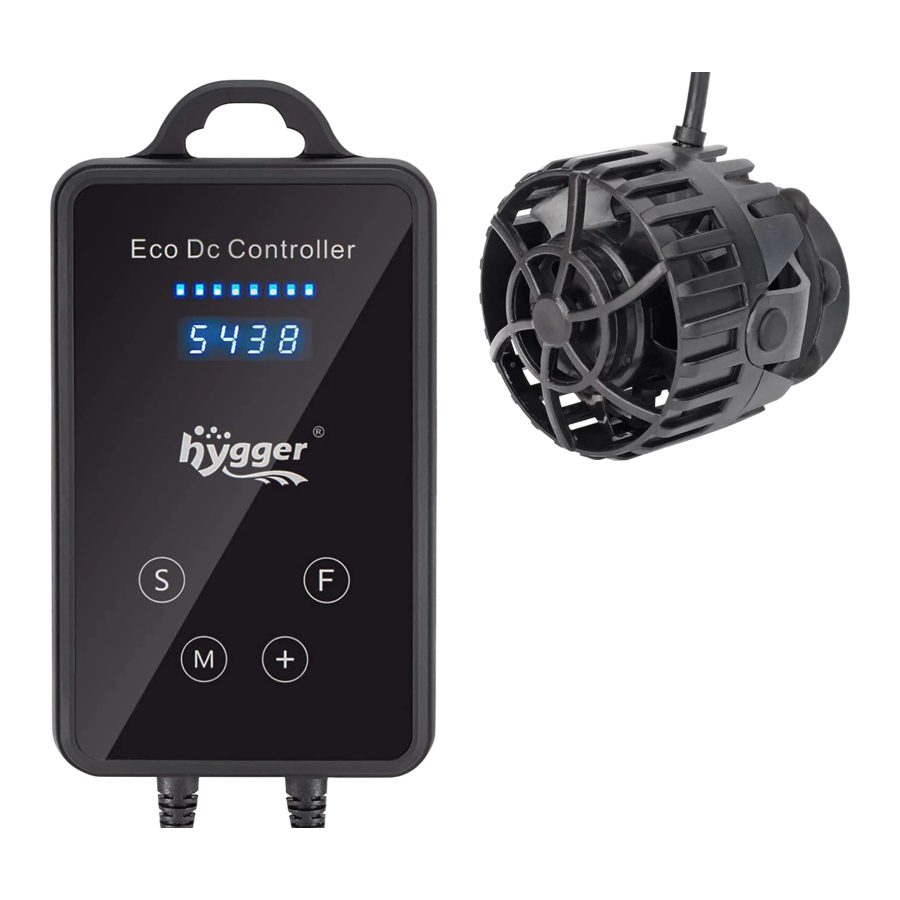

Controller Panel

LED Display

8 LED lights can display the information of wave-making mode, speed, power, frequency.
When the first five lights on it means the pump work at 40% of the max power.
When six lights on it means the pump work at 60% intensity.
When seven lights on it means the pump work at 80% intensity.
When eight lights on it means the pump work at 100% intensity.

In classic wave-making mode, if power is set at 40%, the first five lights will be lighted one by one per wave frequency accordingly and if set at 60%, the first six lights will be lighted one by one per wave frequency accordingly.
In constant stream mode, when power is set to 80%, the first seven lights are turned on in turn during power-rising stage (all six lights are on), and the lights are turned off in turn when the wave-making flow is weakened.
Random mode is actually the random working of the three modes (Classic Wave, Nutrition Transmission Wave, Constant Stream). So the lights status is per the actual mode status.

Digital tube Display

88:88 shows the time or wave mode, select by the key of "S". When the middle two points flashing it shows the time, and then touch the key "S", it will shows the wave mode information, the first number of the Digital tube shows the time range, the second shows power intensity, the third shows wave mode, the last one shows wave frequency.

Button Definition

Function Setting

Time set

Press the button to enter time set mode
Press the button, the first digital display starts to flash
Press the button one time, the digital display one bit to the right
Press the button to calibrate the flashing digital display
Wait a few seconds after the setting is completed until the digital display stops flashing to complete the save.

Tidal Time Setting

The digital display of the controller with 4 digits, the first digit is modified to switch to tide period. The factory-set tide table with 5 periods:

05:30-07:30	Dawn
07:30-09:30	Sunrise
09:30-14:00	Day
14:00-16:30	Sunset
16:30-05:30	Night

Press the button to enter the wave setting mode, such as display
Press the button once, the first digit starts to flash
Press the button, modify the first digit can switch different time periods and modify the corresponding power and wave making mode and wave frequency.

Power Setting

Press the button to enter wave setting mode, such as display
Press the button twice to switch to the second digit display start flashing
Press the button to modify the power of the current tidal period, the current power setting is divided into 4 levels.

	Power set at 40%
	Power set at 60%
	Power set at 80%
	Power set at 100%

Wait a few seconds after the setting is completed until the digital display stops flashing to complete the save.

Wave Mode Setting

Press the button to enter wave setting mode, such as display
Press the button three times to switch to the third digit display start flashing
Press the button to modify to classic wave or nutrient transfer or constant stream or random modes.

	Classic Wave
	Nutrition Transfer Wave
	Constant Stream
	Random Mode

Note: The random mode is a combination of the four modes with random rapid changes and all power and frequency are also random outputs.so when this mode enabled, the second and fourth digit display cannot be adjusted.

Wave frequency setting

Press the to switch to wave setting mode, such as display
Press the button 4 times, switch to the fourth digital display start flashing
Press the button to calibrate the currently flashing digital display number between 1 to 8.

Wait a few seconds after the setting is completed until the digital display stops flashing to complete the save.

Feeding Mode Setting

Press the button to pause action in any mode of the pump and display the content
At this point, the 10—minute countdown will begin, it will return to the original working state after the end.
If need manually recovery, press the button again.

Common Faults:
	Software Overcurrent Protection
	Hardware Overcurrent Protection
	Undervoltage Protection
	Overvoltage Protection
	Phase Loss Protection
	Locked-rotor protection/Dry running protection
	Startup Failed

Digital tube No definition

Time range

1. 05:30-07:30 (Dawn):
2. 07:30-09:00 (Sunrise):
3. 09:00-14:00 (Daylight):
4. 14:00-16:30 (Sunset):
5. 16:30-05:30 (Night):

Intensity

1. 40%
2. 60%
3. 80%
4. 100%

Wave Mode

1. Classic waves
2. Nutrition transmission wave
3. Constant stream
4. Random Mode

Frequency
1. Fast
2.
3.
4.
5.
6.
7.
8. Lowest

Factory setting

Note: When setting the wave maker some issues need to know:

1. When adjust to mode 3 (The third digital tube shows 3) Constant stream mode, the last digital tube can not be adjusted. The default is 8. Because the Constant stream mode only need to adjust the power, for example, 5138,5238,5338,5438.
2. When adjust to mode 4 (The third digital tube shows 4) Random mode. The first and digital tube can not be adjusted, because the Random mode does not need to set intensity and wave frequency. Such as 1040,2040,3040,4040,5040.
3. When the wave maker run reversal it means you need to clean the impeller and restart the wave maker.

Parameter

Maintain

Clean the wave pump regularly to ensure its effective operation;
If there is water on the surface of the control box, please dry it with a dry cloth to prevent water from entering control box;
When cleaning the debris in pump body, firstly, remove the hook brackets on both sides of the pump base, then remove the intermediate disc and the impeller, wipe the impeller with a soft cloth, and clean pump body with water;
This product is suitable for indoor use. Don't immerse the controller box and adapter into water.

Notice

Note: If the controller shows "err" means there are several cases:

1. The wave maker never immerse in water
2. The wave maker is not connected to the controller
3. The wave maker stuck, need to clean and reassemble it.
4. Dry run not allow In order to guarantee the product performance.
5. Keep the controller and adapter away from water and splash water.
6. To avoid damage please don 't open the controller and adapter.
