Summary of Contents for Furniture of America CM-CR151

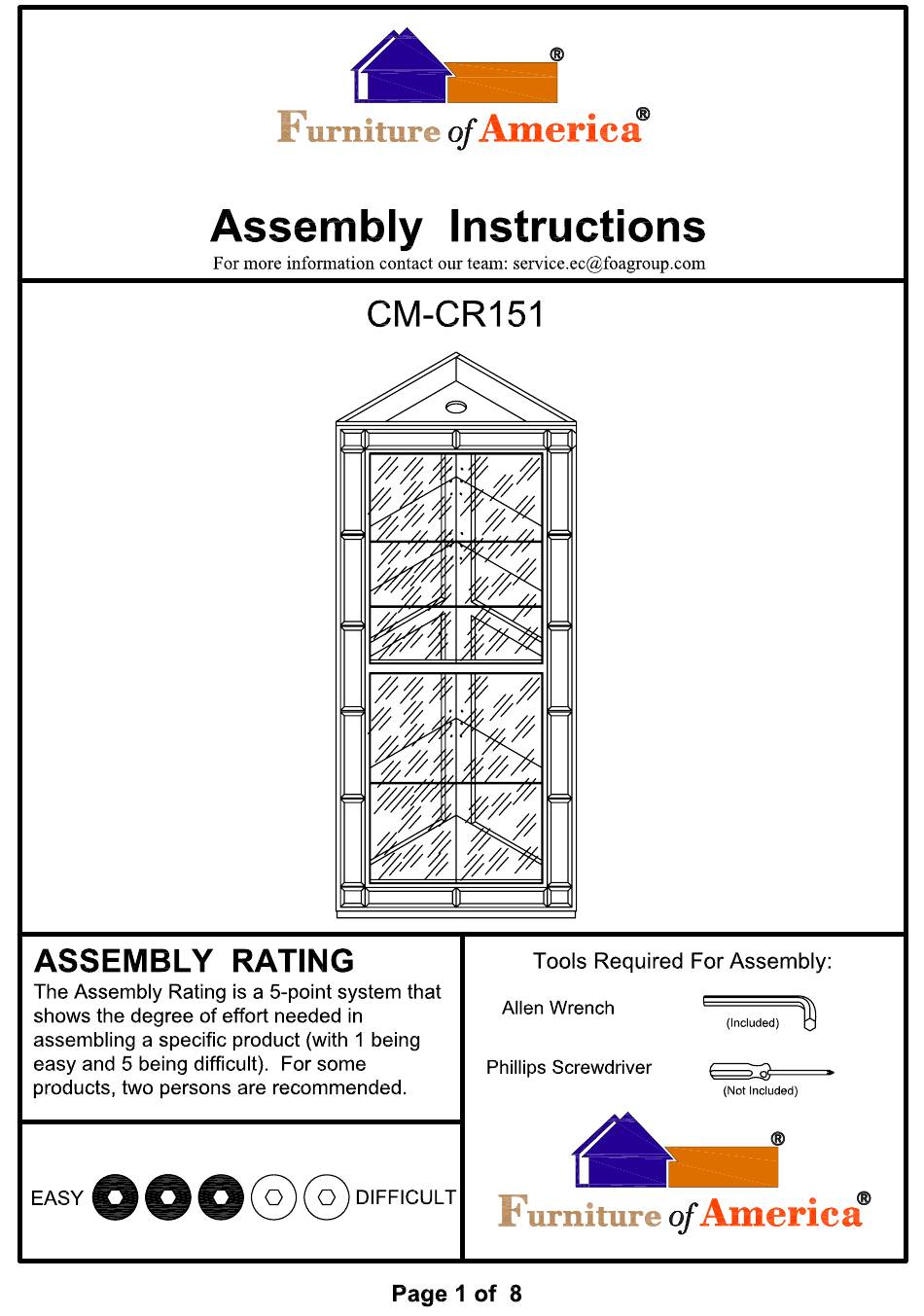

- Page 1 Rev: 17-10-24...
- Page 5 Align magnet (#I) to bottom panel, then secure by using screws (#K). Align magnet (#I) and light (#L) to the holes of the top panel (#1), then secure by using screws (#K). Insert dowels (#D) to the holes of the right side panel (#3), then attach top and bottom panel (#1,7) to the right side panel (#3).
- Page 6 Prepare 10 bolts assembly by inserting washer (#B) onto bolts (#A). Align left and right side panels (#2,3) to the holes of the front panel (#4). Secure by using bolts (#A). Prepare 5 bolts assembly by inserting washer (#B) onto bolts (#A). Align bottom stretcher (#8) to the holes of the panels (#2,3,4).
- Page 7 Attach shelf pins (#J) to the desired height of the shelves (#6). Carefully place shelves (#6) onto the shelf pins (#J). Align and attach U support up (#E) to the glass Align and attach push metal (#6,7), then secure by tightening the screws on (#G) to the glass (#6,7).
- Page 8 Align and fit glass (#6,7) to the supports (#F), then secure by tightening screws from the supports (#F). Make sure supports (#E) fit into the plastic (#H) located at the top of the cabinet.
