Summary of Contents for Furniture of America CM-CR140

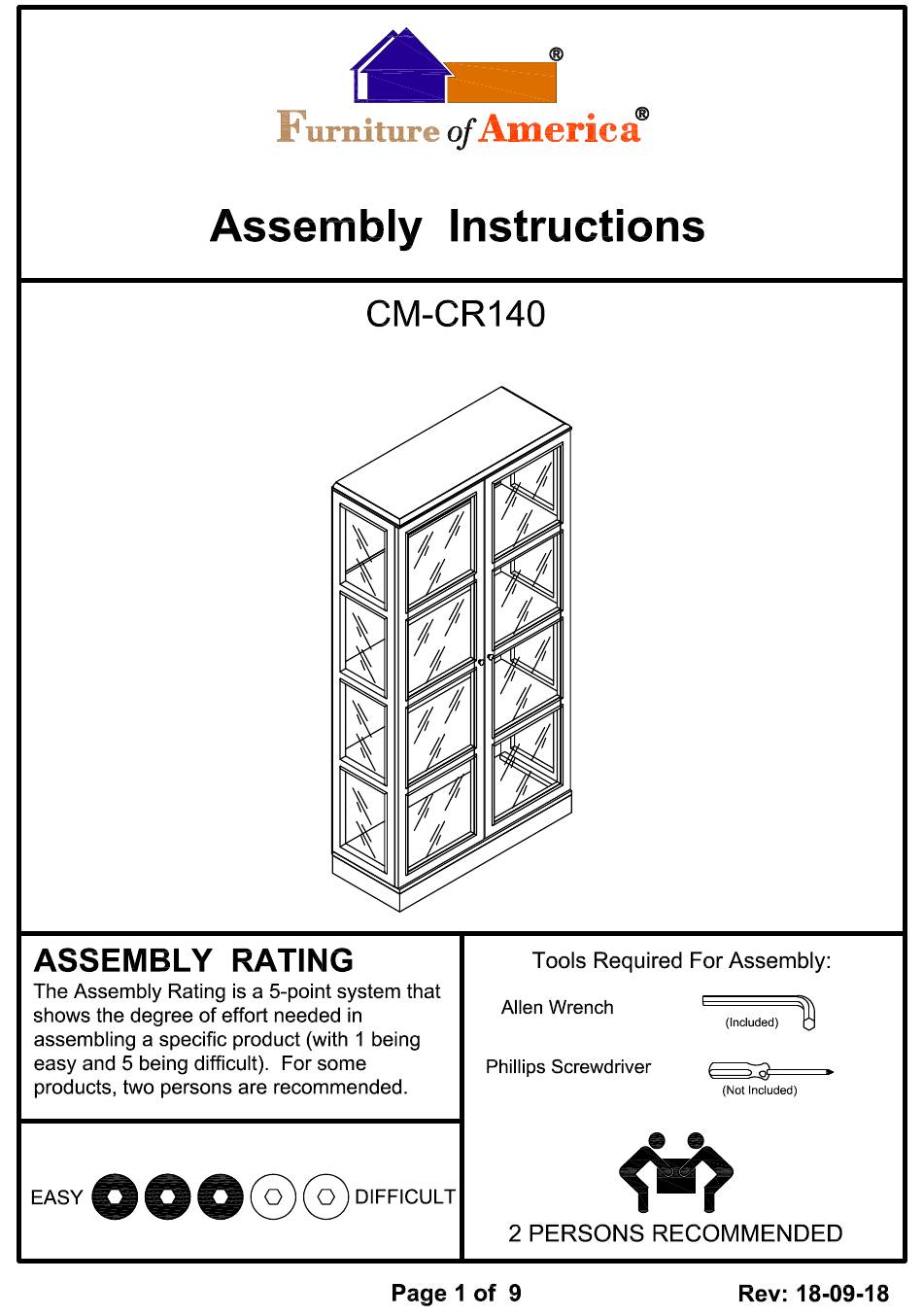

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 3 Cam Lock Fastener Assembly Board A Cam Locks are fasteners used to join two boards together, usually the edge of one board (A) to the flat side of another board (B). flat side edge to join Board B Cam Lock Cam Pin To use Cam Lock Step 2 - Fit the...
- Page 6 Secure magnets (#G) to panels Secure knobs (#C) to glass door (#8) (#1,2), by using screws (#F). by using bolts (#D). Secure cam bolts (#A) to panels (#1,2,3,4). Align hinges (#E) to glass doors (#8), then secure by using screws (#F). Attach dowels (#I) to dowel holes of side panels (#3,4), then align panels (#5) and crossbars (#6,7) to the cam bolts and dowels of the side panels (#3,4).
- Page 7 Insert dowels (#I) to dowel holes of bottom panel (#2), then align bottom panel (#2) to the bottom of the unit. Secure by using cam locks (#B). Insert dowels (#I) to dowel holes of the top panel (#1), then align top panel (#1) to the unit.
- Page 8 Align mirrors (#11,12,13) in correspondence to back panels (#9,10), then secure by using screws (#H). Align glass doors (#8) to the unit, then secure by using screws (#F).
