MANUAL
SPECIFICATIONS
Frequency range FM: 87.5 — 108 MHz
(0.05 MHz*
scan step)
AM: 531 —~ 1602 kHz
*The frequency display is raised or
lowered by steps of 0.1 MHz.
(Example: Frequency 88.05 MHz is
displayed as 88.00 MHz.)
Intermediate frequency
FM: 10:7 MHz
AM: 450 kHz
Antenna
FM: Earphone cord antenna
AM: Built-in ferrite bar antenna
Output
Stereo earphone jack (stereo 42.5
mm, load impedance 16 ohms)
Power output
18 mW
+ 18 mW (at 10%
harmonic distortion)
Power requirements
3 V DC, two R03 (size AAA)
batteries
Battery life
Using Sony batteries UM-4 (NU)
FM: Approx. 16 hours
AM: Approx. 23 hours
Dimensions
Approx. 59 x 100 x 18.3 mm
(wihid) incl. projecting parts and
controls
Weight
Approx. 90 g incl. batteries
Supplied accessories
Earphones (1), Ear pad (2),
Carrying case (1)
Design and specifications are subject to change
without notice.
Note
This appliance conforms with EEC Directive
87/308/EEC regarding interference suppression.

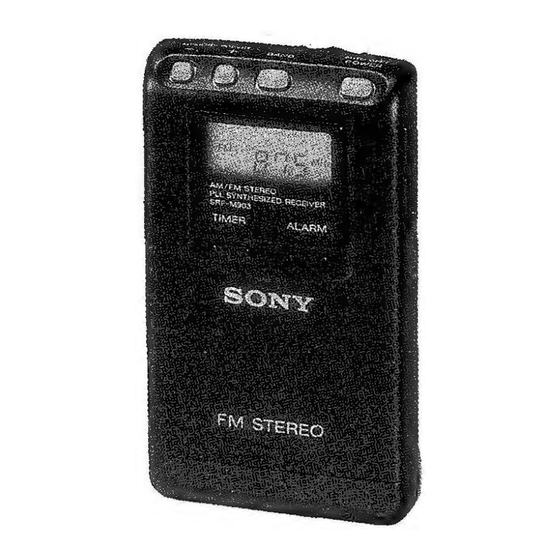

FEATURES
e AM/FM stereo PLL (Phiase Locked Loop)
synthesized receiver.
¢ UP to 14 stations (7 for each band) can be stored
for button-touch tuning (memory preset tuning).
e The tuned frequency is digitally displayed to make
searching for the desired station easier. When the
radio is off, the current time is displayed.
¢ Beep sound notifies you of the preset time (timer
and alarm function).
* Power goes off automatically in about 90 minutes
(power saving features).
AEP Model
UK Model
E Model
NOTES
ON CHIP COMPONENT
REPLACEMENT
@ Never reuse a disconnected chip component.
®@ Notice that the minus side of a tantalum capacitor may be
damaged by heat.
MICROFILM
