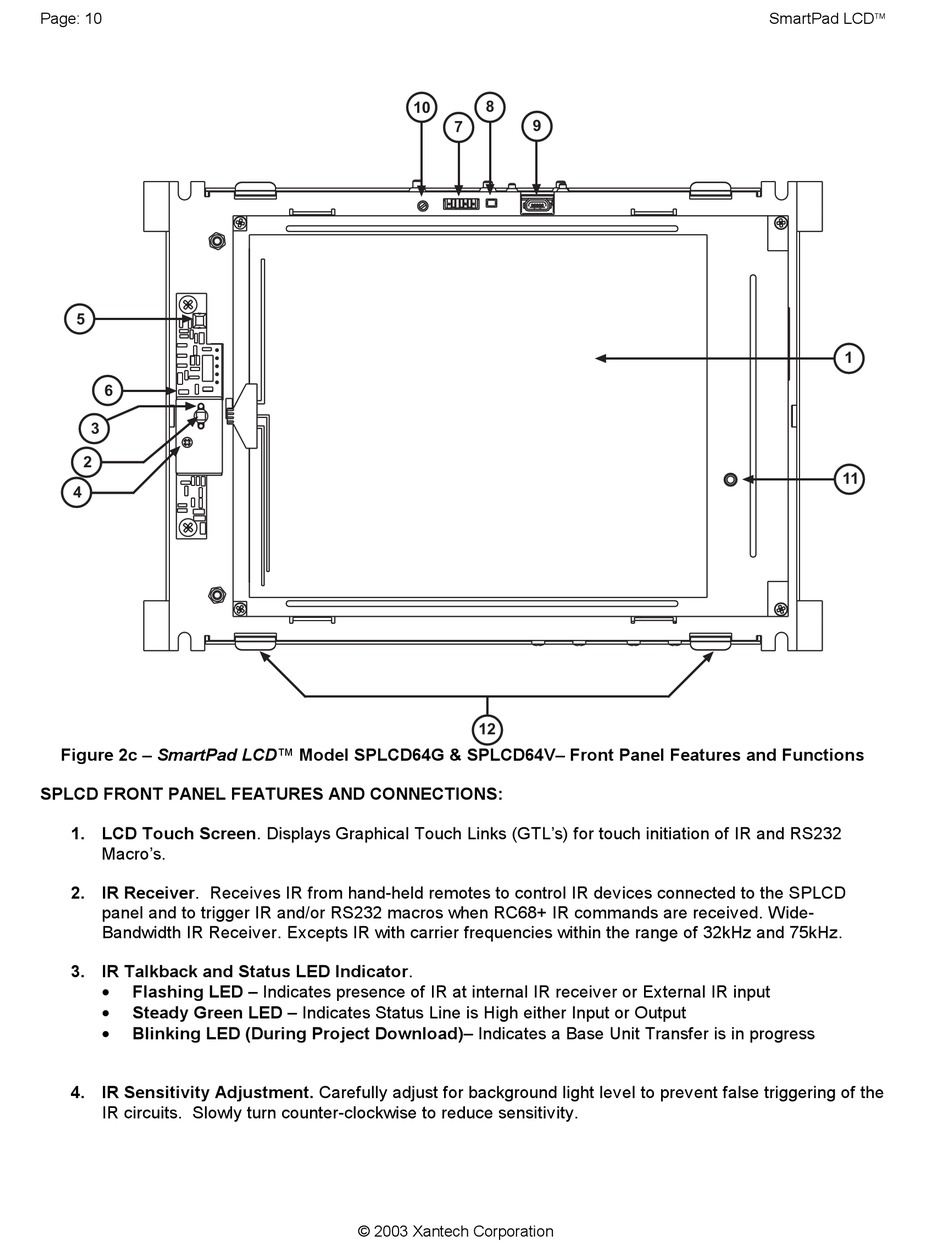

Figure 2c – SmartPad LCD™ Model SPLCD64G & SPLCD64V– Front Panel Features and Functions

SPLCD FRONT PANEL FEATURES AND CONNECTIONS:

1. LCD Touch Screen. Displays Graphical Touch Links (GTL's) for touch initiation of IR and RS232
Macro's.
2. IR Receiver. Receives IR from hand-held remotes to control IR devices connected to the SPLCD
panel and to trigger IR and/or RS232 macros when RC68+ IR commands are received. Wide-
Bandwidth IR Receiver. Excepts IR with carrier frequencies within the range of 32kHz and 75kHz.
3. IR Talkback and Status LED Indicator.
•
Flashing LED – Indicates presence of IR at internal IR receiver or External IR input
•
Steady Green LED – Indicates Status Line is High either Input or Output
•
Blinking LED (During Project Download)– Indicates a Base Unit Transfer is in progress
4. IR Sensitivity Adjustment. Carefully adjust for background light level to prevent false triggering of the
IR circuits. Slowly turn counter-clockwise to reduce sensitivity.
