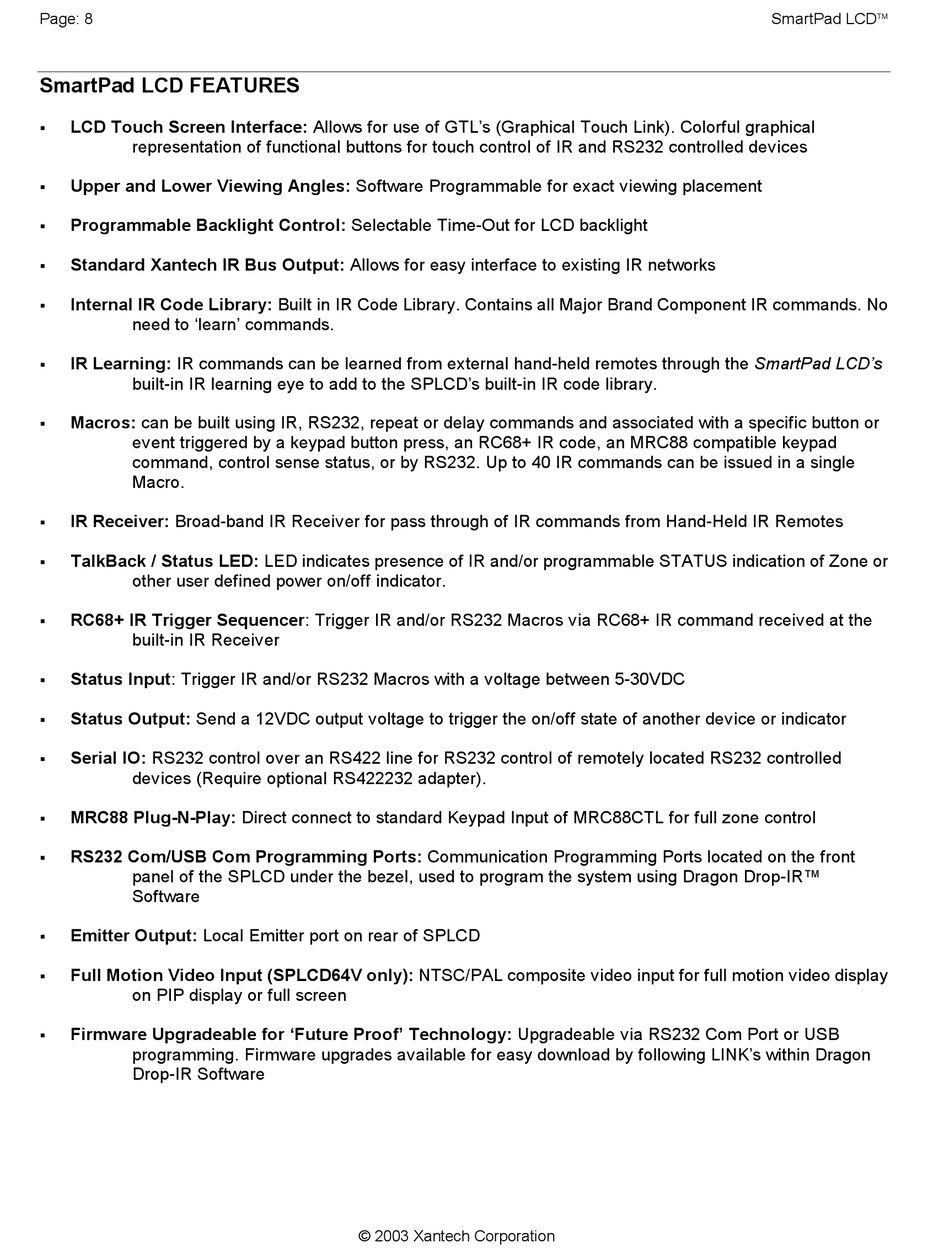

SmartPad LCD FEATURES

LCD Touch Screen Interface: Allows for use of GTL's (Graphical Touch Link). Colorful graphical
representation of functional buttons for touch control of IR and RS232 controlled devices
Upper and Lower Viewing Angles: Software Programmable for exact viewing placement
Programmable Backlight Control: Selectable Time-Out for LCD backlight
Standard Xantech IR Bus Output: Allows for easy interface to existing IR networks
Internal IR Code Library: Built in IR Code Library. Contains all Major Brand Component IR commands. No
need to 'learn' commands.
IR Learning: IR commands can be learned from external hand-held remotes through the SmartPad LCD's
built-in IR learning eye to add to the SPLCD's built-in IR code library.
Macros: can be built using IR, RS232, repeat or delay commands and associated with a specific button or
event triggered by a keypad button press, an RC68+ IR code, an MRC88 compatible keypad
command, control sense status, or by RS232. Up to 40 IR commands can be issued in a single
Macro.
IR Receiver: Broad-band IR Receiver for pass through of IR commands from Hand-Held IR Remotes
TalkBack / Status LED: LED indicates presence of IR and/or programmable STATUS indication of Zone or
other user defined power on/off indicator.
RC68+ IR Trigger Sequencer: Trigger IR and/or RS232 Macros via RC68+ IR command received at the
built-in IR Receiver
Status Input: Trigger IR and/or RS232 Macros with a voltage between 5-30VDC
Status Output: Send a 12VDC output voltage to trigger the on/off state of another device or indicator
Serial IO: RS232 control over an RS422 line for RS232 control of remotely located RS232 controlled
devices (Require optional RS422232 adapter).
MRC88 Plug-N-Play: Direct connect to standard Keypad Input of MRC88CTL for full zone control
RS232 Com/USB Com Programming Ports: Communication Programming Ports located on the front
panel of the SPLCD under the bezel, used to program the system using Dragon Drop-IR™
Software
Emitter Output: Local Emitter port on rear of SPLCD
Full Motion Video Input (SPLCD64V only): NTSC/PAL composite video input for full motion video display
on PIP display or full screen
Firmware Upgradeable for 'Future Proof' Technology: Upgradeable via RS232 Com Port or USB
programming. Firmware upgrades available for easy download by following LINK's within Dragon
Drop-IR Software
