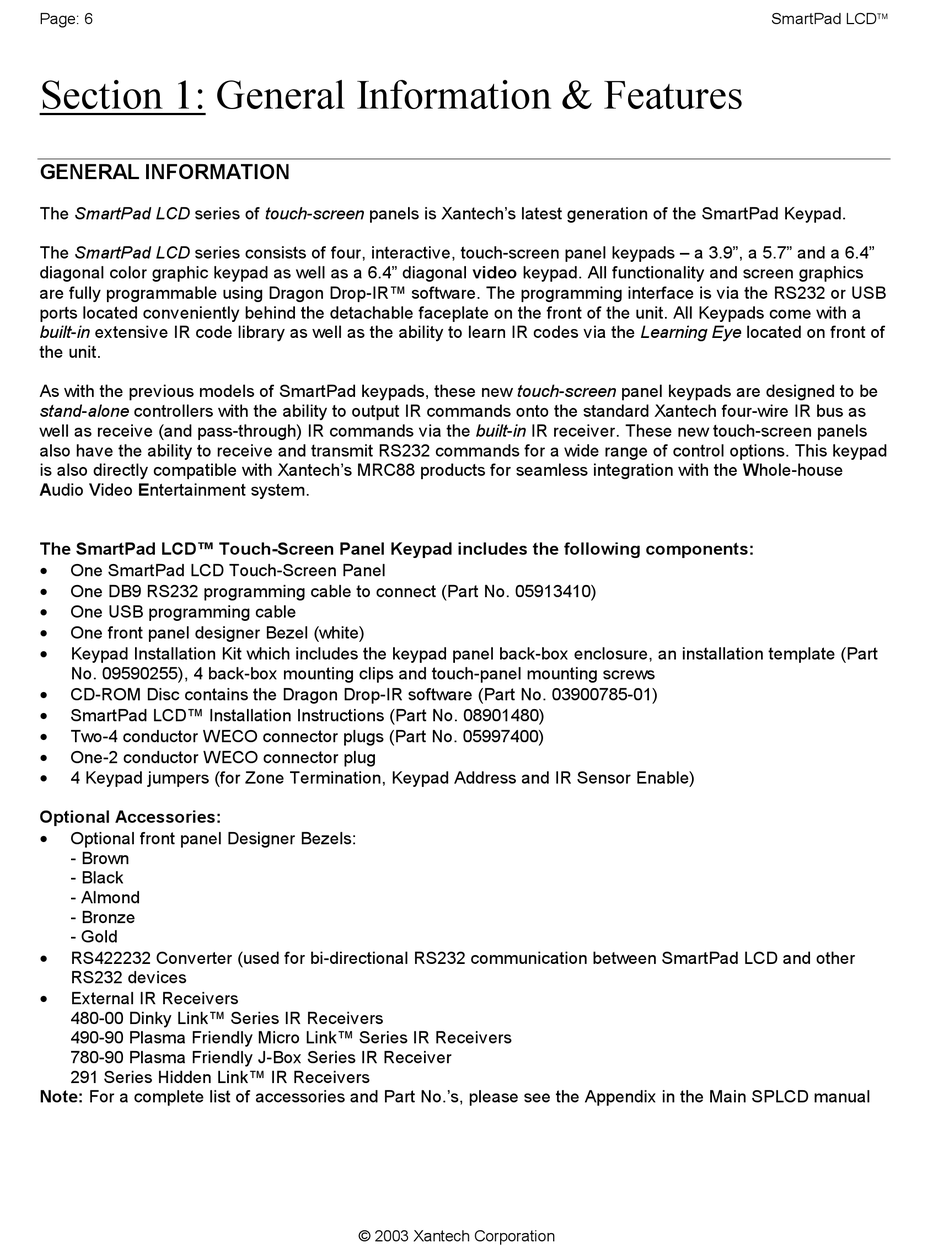

Section 1: General Information & Features

GENERAL INFORMATION

The SmartPad LCD series of touch-screen panels is Xantech's latest generation of the SmartPad Keypad.
The SmartPad LCD series consists of four, interactive, touch-screen panel keypads – a 3.9", a 5.7" and a 6.4"
diagonal color graphic keypad as well as a 6.4" diagonal video keypad. All functionality and screen graphics
are fully programmable using Dragon Drop-IR™ software. The programming interface is via the RS232 or USB
ports located conveniently behind the detachable faceplate on the front of the unit. All Keypads come with a
built-in extensive IR code library as well as the ability to learn IR codes via the Learning Eye located on front of
the unit.
As with the previous models of SmartPad keypads, these new touch-screen panel keypads are designed to be
stand-alone controllers with the ability to output IR commands onto the standard Xantech four-wire IR bus as
well as receive (and pass-through) IR commands via the built-in IR receiver. These new touch-screen panels
also have the ability to receive and transmit RS232 commands for a wide range of control options. This keypad
is also directly compatible with Xantech's MRC88 products for seamless integration with the Whole-house
Audio Video Entertainment system.
The SmartPad LCD™ Touch-Screen Panel Keypad includes the following components:
• One SmartPad LCD Touch-Screen Panel
•
One DB9 RS232 programming cable to connect (Part No. 05913410)
•
One USB programming cable
• One front panel designer Bezel (white)
• Keypad Installation Kit which includes the keypad panel back-box enclosure, an installation template (Part
No. 09590255), 4 back-box mounting clips and touch-panel mounting screws
•
CD-ROM Disc contains the Dragon Drop-IR software (Part No. 03900785-01)
•
SmartPad LCD™ Installation Instructions (Part No. 08901480)
•
Two-4 conductor WECO connector plugs (Part No. 05997400)
• One-2 conductor WECO connector plug
•
4 Keypad jumpers (for Zone Termination, Keypad Address and IR Sensor Enable)

Optional Accessories:

•
Optional front panel Designer Bezels:
- Brown
- Black
- Almond
- Bronze
- Gold
•
RS422232 Converter (used for bi-directional RS232 communication between SmartPad LCD and other
RS232 devices
•
External IR Receivers
480-00 Dinky Link™ Series IR Receivers
490-90 Plasma Friendly Micro Link™ Series IR Receivers
780-90 Plasma Friendly J-Box Series IR Receiver
291 Series Hidden Link™ IR Receivers
Note: For a complete list of accessories and Part No.'s, please see the Appendix in the Main SPLCD manual
© 2003 Xantech Corporation
