Summary of Contents for Xantech HDMI3X1
- Page 1 HDMI3X1 User Manual www.xantech.com - 1 -...

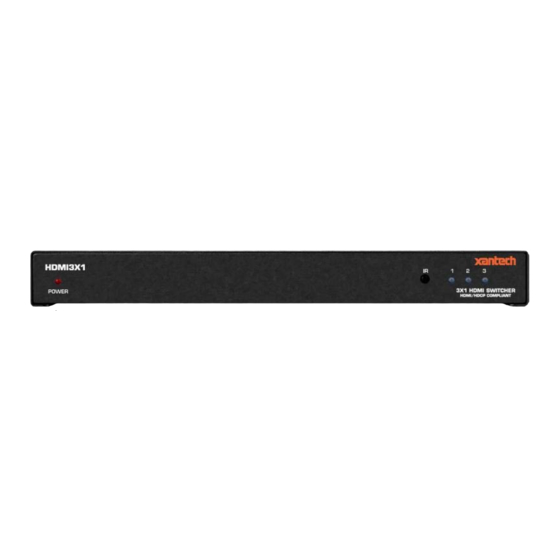

- Page 2 The HDMI3X1 Switcher allows three HDTV HDMI devices to be switched easily in to one HDTV HDMI compatible monitor or projector. Simply connect your HDTV display to the Switcher’s display output. The HDMI3X1 Switcher can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
- Page 3 INSTRUCTIONS 1) Connect the supplied cables from the HDTV HDMI sources into the 3x1 HDMI Switcher inputs. 2) Connect the cables from your display (monitor or projector) into the HDMI out of the 3x1 HDMI Switcher. 3) Plug the 5VDC power supply into the 3x1 HDMI Switcher. How to Control the 3x1 HDMI Switcher Use the RMT3-IR remote control to toggle between sources.
- Page 4 - 4 -...
-
Page 5: Specifications
Fax: 800.492.6832 email: tech@xantech.com HDMI3X1 User Manual © 2007 Xantech Corporation This document is copyright protected. No part of this manual may be copied or reproduced in any form without prior written consent from Xantech Corporation. Document Number 08905127A IREXTENDER SPECIFICATIONS 1.65 Gbps...
