Introduction

Our XT-SW21-4K18G 4K HDMI 2.0 switcher distributes 2x HDMI sources to a single output. The switcher supports full HDMI 2.0 and HDCP 2.2
with video resolutions up to and including 4K @ 60Hz 4:4:4. The 2-Way switcher also includes the advanced features of audio breakout and EDID
management.

Key Features

• Features 2x HDMI inputs that can be switched to a single HDMI output
• Supports full HDMI 2.0 specification 4K UHD video (4K @ 60Hz 4:4:4)
• Supports 3D signal display
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
• Supports CEC bypass (Consumer Electronics Control)
• Controlled via front panel and IR
• Advanced EDID management
• HDCP 2.2 compliant
© 2018 XANTECH
is a registered trademark of Nortek Security & Control.
®
XT-SW21-4K18G

User Manual

XT-SW21-4K18G
USER MANUAL
10019339 REV-A0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XT-SW21-4K18G and is the answer not in the manual?

Questions and answers

Summary of Contents for Xantech XT-SW21-4K18G

  • Page 1: User Manual

    Introduction Our XT-SW21-4K18G 4K HDMI 2.0 switcher distributes 2x HDMI sources to a single output. The switcher supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4. The 2-Way switcher also includes the advanced features of audio breakout and EDID management.

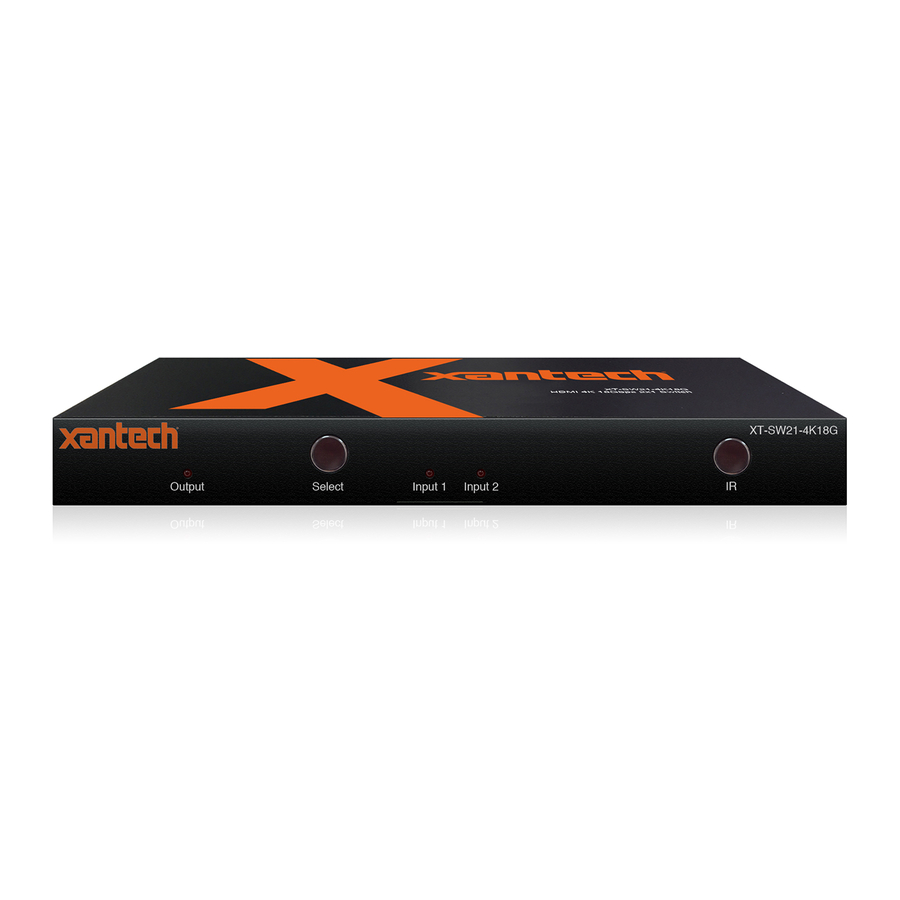

  • Page 2: Panel Description

    Input 1 Input 2 Output 5V 1A Audio Out active HDMI display IR receiver window - for receiving IR from Xantech XT-SW21- Select button - Press to scroll through HDMI source inputs 4K18G switcher remote control XT-SW21-4K18G Rear Panel Output...
  • Page 3 Configuration of EDID settings can be achieved using the product dip-switches on the XT-SW21-4K18G. EDID dip-switch settings are shown below. Note: You must power cycle the product after making EDID changes. For some sources it may be necessary to power cycle the source after EDID changes have been made for the source to update its video &...
  • Page 4 ® XT-SW21-4K18G USER MANUAL www.xantech.com...
  • Page 5: Specifications

    Storage Temperature : -4°F to 140°F (-20°C to 60°C) Power Supply : 5V/1A DC Package Contents: • 1x XT-SW21-4K18G • 1x 5V/1A DC power supply • 1x Remote control • 1x Mounting kit • 1x Quick reference guide © 2018 XANTECH is a registered trademark of Nortek Security &...
  • Page 6 ® XT-SW21-4K18G USER MANUAL Certifications FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
