INSTALLATION INSTRUCTIONS

DESCRIPTION

The DPC100 is a Doorbell / Paging Controller that can be combined with a MRC88CTL to provide
whole-house paging and doorbell capability. Adding the Doorbell Communicator (DCSS or DCBB)
and Doorbell Communicator Hub (DCH4) with the MRC88CTL system creates a complete entry
control and paging solution. The DPC100 can also provide "Music on hold" for an existing phone line.

SPECIFICATIONS

Power: 120VAC/13.8VAC 1.25Amp, UL listed adaptor provided.
Dimensions: 133mm x 89mm x 44mm (5.25" x 3.5" x 1.75")
Shipping Weight: 1.36 kg (3 lbs)
Environmental: 0C to 32C (32F to 90F) with 5% to 95% non-condensing humidity.
REN: 0.5A
Max Doorbell Switch Wire Run: 305m (1000 ft) max, 24 AWG
Max Load on Page Trigger Output: 1kOhm
Talk Battery: 36VDC
08905106B
DPC100
Doorbell / Paging Controller
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DPC100 and is the answer not in the manual?

Questions and answers

Related Manuals for Xantech DPC100

Summary of Contents for Xantech DPC100

  • Page 1: Installation Instructions

    INSTALLATION INSTRUCTIONS DESCRIPTION The DPC100 is a Doorbell / Paging Controller that can be combined with a MRC88CTL to provide whole-house paging and doorbell capability. Adding the Doorbell Communicator (DCSS or DCBB) and Doorbell Communicator Hub (DCH4) with the MRC88CTL system creates a complete entry control and paging solution.

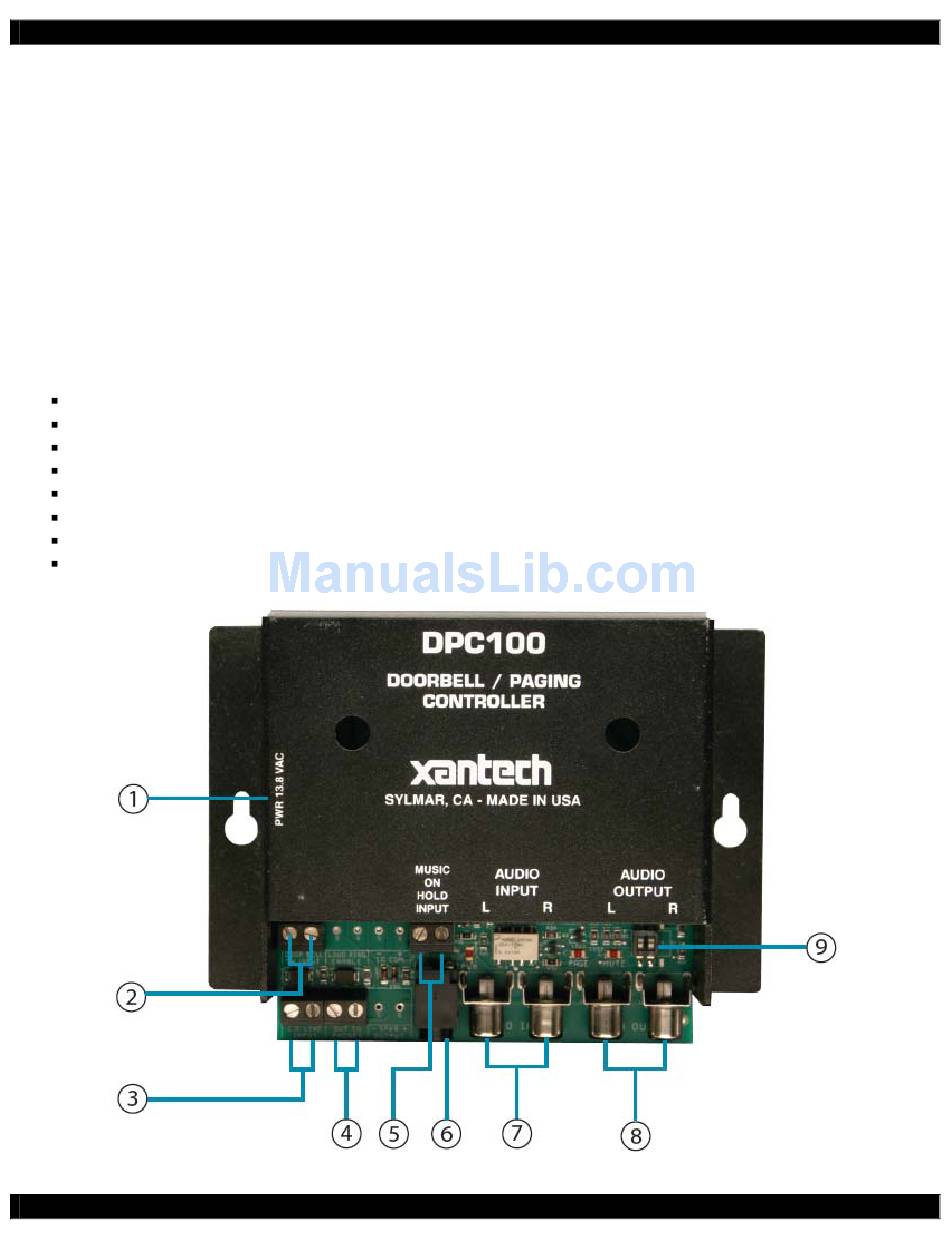

  • Page 2 1. Power supply connection. Be sure to use the included power supply only. 2. Doorbell Switch Input (lighted or non-lighted). Provides door chime over speakers (not polarity sensitive). This input can also be connected to a DCH4 for a unique front / back door chimes.
  • Page 3 APPLICATION 08905106B - 3 -...
  • Page 4 D. On-Hold Alarm Tones The DPC100 can provide on-hold alarm tones to alert you that a caller has been left on hold. After each minute the call has been left on hold, the DPC100 will momentarily mute the background music and output a double beep tone over the speakers.
  • Page 5 6-16V lighted doorbell switches. With DIP switch 2 in the ON position, the doorbell input terminals on the DPC100 can be connected to the DCH4 normally open auxiliary relay contacts. When a door phone on the DCH4 is activated, the DPC100 will momentarily mute the background music and provide a door chime (ding-dong) sound over the speakers.
  • Page 6 Installation Instructions, DPC100 © 2007 Xantech Corporation, Document #08905106B This document is copyright protected. No part of this manual may be copied or reproduced in any form without prior written consent from Xantech Corporation. Xantech Corporation shall not be liable for operational, technical, or editorial errors/omissions made in this document.
