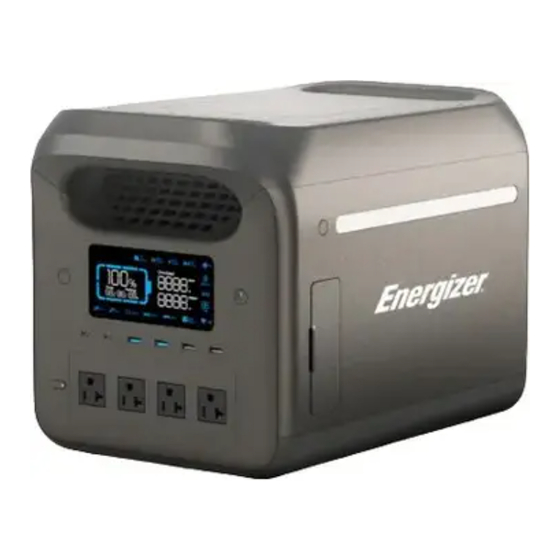

- Page 1 ENERGIZER SOLAR PEAK 1800 ENGLISH Energizer Solar Peak 1800 Portable Power Station User Manual...
-
Page 2: Table Of Contents
ENERGIZER SOLAR PEAK 1800 ENGLISH Contents Parameters Safety Guidelines Warning Discard User Guidelines Product Overview LCD Screen How to Use AC Charging PV Charging Car Charging Intelligent inversions Energizer Solar Portable Power App EPS Function FAQ’s Error Messages & Solutions What’s in the box... -
Page 3: Parameters
ENERGIZER SOLAR PEAK 1800 ENGLISH Parameters General Net Weight 22kg (48.5lbs) Dimensions (W x H x D) 432 x 270 x 300mm (17” x 10.6” x 11.8”) Battery Capacity 1229Wh 51.2V ⎓ ,24Ah WiFi Supported Output (EU/FR/AU/ZA) Pure sine-wave, total 1800W (peak 3000W), AC Output x 3 (Inverter mode) 220-240V ~ (50/60Hz), 12A Max. -
Page 4: Safety Guidelines
ENERGIZER SOLAR PEAK 1800 ENGLISH Parameters Input Charging AC Charging Power 1200W Max. PV/Car Charging Power x 2 400W Max. AC+PV Charging Power 1200W Max. Battery Cell Type Lithium Iron Phosphate Battery (LiFePO Life Cycle 3,000 cycles Protection Type Over temperature protection, low temperature protection, over... -
Page 5: Discard
When connecting the power supply to a refrigerator that stores medicine, vaccines or other valuable items, it is recommended to set the AC output to “Never off” in the Energizer Solar Portable Power App, so as to ensure continuous power. Users should pay attention to power consumption. -
Page 6: User Guidelines
ENERGIZER SOLAR PEAK 1800 ENGLISH User Guidelines Product Overview Ventilation opening LCD button ON/OFF button 2 x USB-A quick charge output 2 x USB-C output 2 x USB-A output AC output button AC output sockets PAGE 04... - Page 7 ENERGIZER SOLAR PEAK 1800 ENGLISH Ventilation opening Overload protection switch AC input socket Solar/car charge input Quick charge/slow charge switch LED light LED light button 12V Car Charger Port 2 x DC5521 plug DC output ON/OFF PAGE 05...
-
Page 8: Lcd Screen
2 hours, the product will automatically shut down, and the standby time can be set it on the Energizer Solar Portable Power App; when the power is 5% or below, the product will be forced to enter the low power mode. - Page 9 ENERGIZER SOLAR PEAK 1800 ENGLISH • In normal mode, long press the LED light button to exit the automatic shutdown setting, and the battery icon the screen will flash. Long press again to enter the automatic shutdown setting, and the battery icon will not flash.
- Page 10 ENERGIZER SOLAR PEAK 1800 ENGLISH • After the main power switch is turned on, press the 12V DC output power switch to enable the DC output port. • Press the 12V DC output power switch again to turn it off.
-
Page 11: Ac Charging
The slow charge mode is on by default when power station is turned on, and can be switched to quick charge mode by the button. Quick and slow charging mode switching can also be set by the Energizer Solar Portable Power App. If the current is continuously higher than 20A, the charging input port will start the self-protection function, and the charging overload protection switch will automatically trip. -
Page 12: Pv Charging
Before connecting the solar panel, check whether its output voltage is within the power station specifications to avoid damage to power station. *The interface of this product is DC7909. If you need an adapter cable from MC4 to DC7909, please contact Energizer Solar at www.energizersolar.com on how to purchase. -
Page 13: Intelligent Inversions
Energizer Solar Portable Power App You are able to view information and data and control this product via the Energizer Solar Portable Power App. To download the app, search for [Energizer Solar Portable Power] in the Google App Store or Apple App Store. Once downloaded, create an account and register your product to manage and control how you use your Energizer Solar Portable Power Station. -
Page 14: Eps Function
Turn it off, and keep it in a dry and ventilated place. Do not expose it close to water. For long-term storage, suggest discharge to 0% and charge to 100% every 3 months to extend the service life. Can it be taken on a plane? No, the Energizer Solar Peak 1800 does not comply with aviation standards. PAGE 12... -
Page 15: Error Messages & Solutions
ENERGIZER SOLAR PEAK 1800 ENGLISH Error Messages & Solutions Icon Icon Characteristics Fault Description Solution Error code always on Serious battery fault Turn on and off, contact after sales if still not fixed. Error code always on ΔV too big Auto shutdown, fault will be cleared after reboot. - Page 16 If there is a warning occurs during the use of this product, and the warning icon still does not disappear after restarting the device, please stop using it immediately (do not try to charge or discharge). If none of the above information can solve problem you encounter, please contact Energizer Solar at www.energizersolar.com PAGE 14...
-
Page 17: What's In The Box
Users are expected to take responsibility for their actions and any resulting consequences. Energizer Solar is not responsible for any losses that may occur if users do not adhere to the instructions in this user manual. - Page 18 ENERGIZER SOLAR PEAK 1800 ENGLISH Stay powered up wherever you roam with the Energizer Solar Peak 1800. The unrivaled portable power station that ensures you’re always equipped with reliable, worry-free energy.
