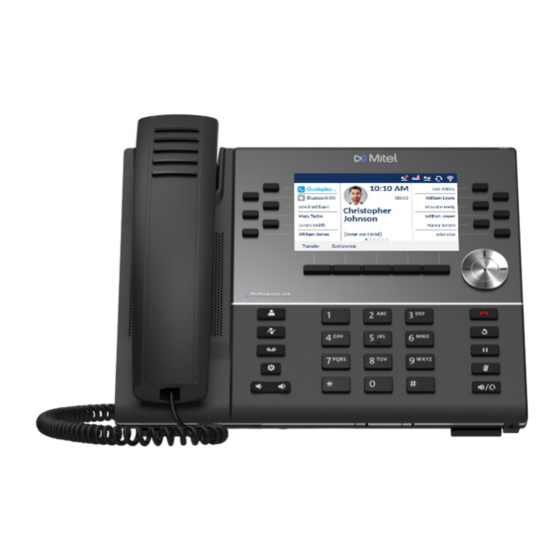

Mitel 6930/6930w SIP Phone - Quick Reference Guide
QUICK REFERENCE GUIDE
Getting started
Bottom Softkeys
5 context-sensitive softkeys
that support up to 24 functions
Directory
Displays
a list of your
contacts.
Callers List
Displays a list of
missed, dialed
and answered
calls.
Voicemail
Provides
access to
your voicemail
service.
Settings
Provides
services and
options that
allow you to
customize
your phone.
Navigation/Select
Volume
Multi-directional navigation
Adjusts the
keys that allow you to navigate
volume of
through the phone's UI. Pressing
the ringer,
the center Select button sets
handset,
options and performs various
speaker,
actions such as dialing out from
and headset.
Contacts or Call History.
On the Home screen,
the left and right navigation
keys can be used to switch
between the home screen,
the line manager, and active calls.
© Copyright 2022, Mitel Networks Corporation. All Rights Reserved.
The trademarks, service marks, logos and graphics (collectively "Trademarks") appearing on Mitel's Internet sites or in its publications are registered and unregistered trademarks of Mitel Networks Corporation (MNC) or its subsidiaries (collectively "Mitel") or others.
Use of the Trademarks is prohibited without the express consent from Mitel. Please contact our legal department at legal@mitel.com for additional information. For a list of the worldwide Mitel Networks Corporation registered trademarks, please refer to the website:
http://www.mitel.com/trademarks.
Mitel's Power Over Ethernet (PoE) Powered Device (PD) products are covered by one or more of the U.S. patents (and any foreign patent counterparts thereto) identified at Mitel's website: www.mitel.com/patents. For more information on the PD patents that are licensed,
please refer to www.cmspatents.com.
Top SoftKeys
Goodbye
.
12 programmable keys that support
Ends the active
up to 44 functions.
call and used for r
exiting lists and
menus.
Redial
Displays Call
History with a list
of outgoing calls.
Hold
Places an active
call on hold or
resumes a call
from hold.
Mute
Mutes/unmutes
all outgoing audio
on headset,
handset or
speaker.
Speaker/Headset
Toggles the phone's audio between speaker
and headset. If you are using a DHSG/EHS
headset, ensure that the headset jack adapter is
removed from the headset port. See the Mitel 6930
SIP Phone Installation Guide for more details.
Warning!
The headset port is for headset use only.
Plugging any other devices into this port
may cause damage to the phone and will
void your warranty.
Information Regarding Model Variants
The 6930L and 6930Lt variant has the Bluetooth circuitry removed and so all associated
features and capability relating to Bluetooth are not available. Any information within this
user guide that relates to Bluetooth wireless capabilities do not apply to the 6930L or
6930Lt variants.
A new variant of the 6930 IP Phone is available called the 6930w IP Phone. The 6930w
IP Phone is physically identical to the 6930 IP Phone. There are new features supported
by the 6930w IP Phone relative to the 6930 IP Phone, namely embedded Wi-Fi,
Bluetooth 5.0, IEEE 802.3az standard (Energy Efficient Ethernet) capability. The 6930w
IP Phone also supports the same accessories as the current 6930 IP Phone.
Basic call handling
Making a call
1. Lift the handset, press the Line key or press
the key, and at the dial tone, enter
the number.
2. Press the Line / Call appearance button and
at the dial tone, enter the number.
Ending a call
Place the handset back in its cradle, press the Ignore softkey, or press the
Answering a call
Lift the handset, press the Answer softkey or press the
operation.
Redialing
Press the Redial softkey once or the
or
Press the key once to access the Call History application that displays a list of
recently dialed numbers. Use the up and down navigation keys to scroll through the
entries and select a number. Press either the Select button or the Dial softkey to redial
the selected number.
Muting or unmuting a call
key for handsfree
key twice to call the last dialed number
58016676 REV00
key.
