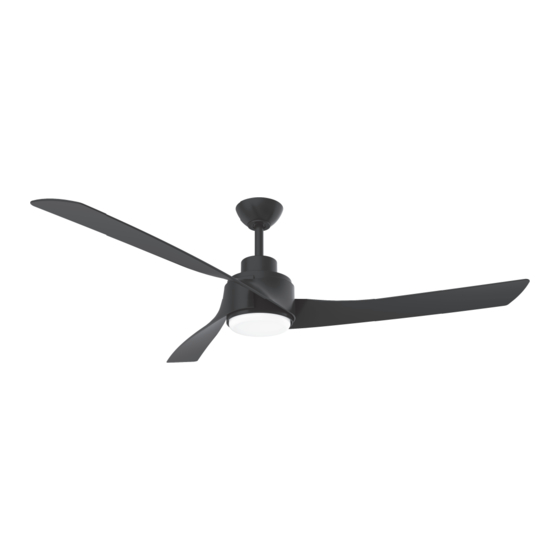

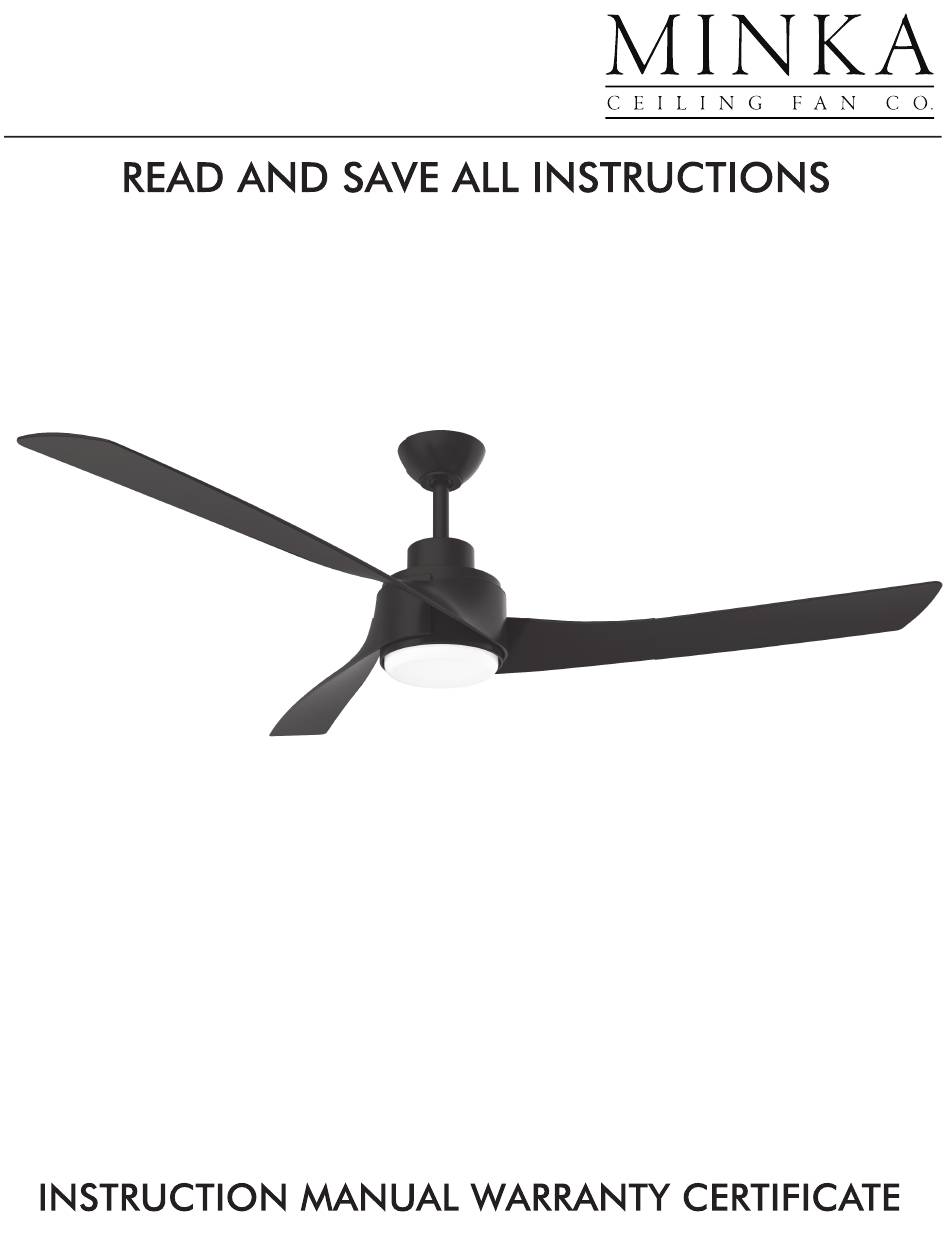

- Page 1 Ormond 60" Ceiling Fan for Indoor Location...
- Page 2 2021...
-
Page 3: Table Of Contents
The Minka warranty is for one (1) year from the date of purchase from an authorized Minka dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. - Page 4 READ AND SAVE THESE INSTRUCTIONS. DL-1167RYS-02 DL-4103T02...
- Page 5 A. Blade attachment hardware: 1/4" x 15.8 mm blade screws (9 + 1 spare) Metal washer (9 + 1 spare) B. 1/4" x 12.7 mm Flywheel screws (3 +1 spare) C. Wire nuts (3) D. Balancing kit Flywheel 16W LED assembly 10.
- Page 6 You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped ceiling. Longer downrods are available from your Minka dealer. To hang your fan where there is an existing fixture but no ceiling joist, you may need to install a hanger bar as shown...
-
Page 7: Hanging The Fan
All of the parts, hardware and components such as the hanger bracket and hanger ball have been provided for your safety and the proper installation of your new ceiling fan. The use of other parts, hardware or components not supplied by Minka with the fan will void the Minka Warranty. seats... -
Page 8: Electrical Connections
DOWN LIGHT Step 4. Connect the ground wire (green or bare copper) from the outlet box to the ground wire of hanging ball and the ground wire of hanger bracket. Secure wire connection with the plastic wire nut provided. (Fig.13) Note: After making electrical connections, spliced conductors should be turned upward and pushed carefully up into the outlet box. -
Page 9: Installing The Canopy And Canopy Cover
INSTALLING THE CANOPY AND CANOPY COVER OUTLET BOX HANGER BRACKET HANG BALL CANOPY CANOPY COVER FIG. 14... -
Page 10: Installing The Flywheel
INSTALLING THE FLYWHEEL Pay attention to the arrow labels on the fan motor assembly and the flywheel. Start from this label and align the three holes on the flywheel to the three holes on the fan motor assembly. Tighten the flywheel onto the bottom of fan motor assembly by using the three flywheel screws. (Fig.15) IMPORTANT: Please follow the instruction manual and DO NOT use the wrong screws in the step process. -
Page 11: Installing The Fan Blades
INSTALLING THE FAN BLADES Insert the fan blade into the slot of flywheel and tighten the fan blade by using the three blade screws and the three metal washers securely. Repeat same process the other two blades. (Fig.16) BLADE SLOT ON THE FLYWHEEL FLYWHEEL METAL WASHER... -
Page 12: Operating The Remote Control
WARNNING：Non-rechargeable batteries are not to be recharged. Batteries are to be inserted with the correct polarity. Exhausted batteries are to be removed from the product. DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EXPLODE OR LEAK. : Low speed : Medium speed : High speed FIG. - Page 15 0.28 18.37 2790 8.53 9.88 2.019 0.51 59.38 5932 Estimated Yearly Energy Cost 4,460 Cubic Feet Per Minute • more air the fan will move • Cost Range of Similar Models (19” - 84”) Feet Per Minute Per Watt • Based on 12 cents per kWh and 6.4 hours use per day •...
- Page 16 MINKA CEILING FAN CO. CF360KR-03 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
