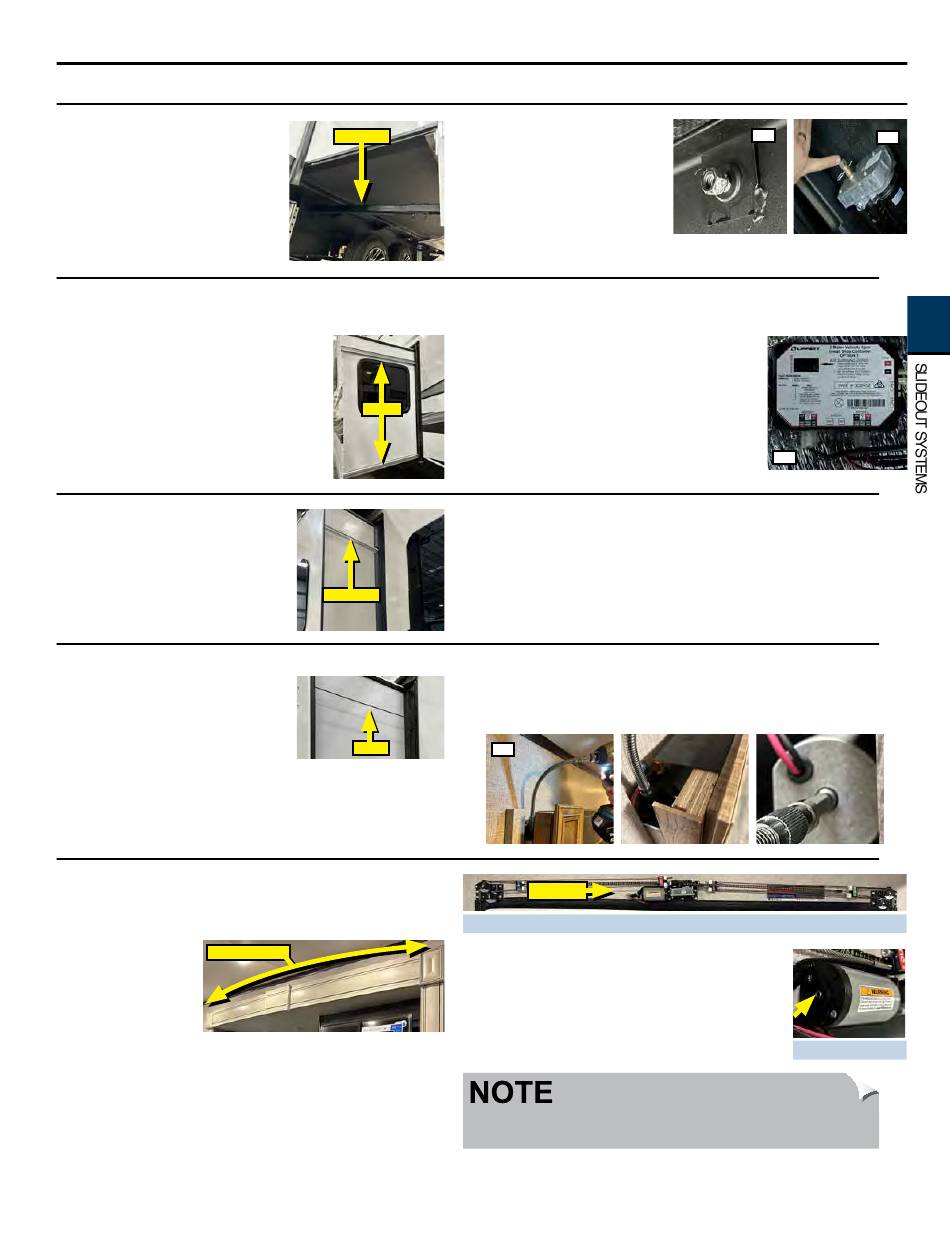

Slide Types
Through Frame
Location: Both flush floor & above
floor. Will be on the main floor of a
5th wheel, or any travel trailer where
the slideout is at the floor level.
Characteristics: Ram arms can be
found under the slideout.
Lippert - Schwintek In Wall
Location: Found throughout the coach whether it's a 5th wheel
or travel trailer.
Characteristics: There will be two tracks on
each end wall both fastened to the box. One
track will be at the very bottom and the other
will be toward the top.
Lippert Slim Rack In Wall
Location: Found throughout the
coach, used for main floor slideouts
that are larger than 120".
Characteristics: There will be two
small/thin tracks on each end wall.
Norco Exact Slide
In Wall Cable Slide (5.5)
TM
Location: Both flush floor & above
floor. Can be throughout the coach on
both 5th wheels and travel trailers.
Characteristics: There will be two
cables on each endwall, one in both the lower and upper
portion of the wall.
Manual Retract Procedure: The slide-out motors can be
accessed behind the corners of the upper fascia on the interior
Norco Accu Slide
Traditional Cable Slide (G4)
TM
Location: Both flush floor & above floor: Can be throughout
the coach on both 5th wheela (above floor only) and travel
trailers (either setup).
Bow in Fascia
Characteristics: The
center of the interior
fascia on the top of
slide room will bow
outward and protrude into the coach. Behind the curve in the
fascia is the slide-out motor, gears, and cables.
Manual Retract Procedure: You can access the slide out
motor from above the fascia; but if there is not enough room
above to allow access, the fascia will need to be removed. The
top, bottom, center, and end trim pieces are attached to a
SLIDEOUT SYSTEMS
Manual Retract Procedure: On
Ram Arm
the opposite side of the coach
from the slide there will be a 3/4"
nut either on the frame rail (A) or
on a motor accessed through a
removable, screwed-down panel
on the under-side (B). Using a
ratchet or a tire iron, rotate the nut clockwise to retract the slide manually.
Manual Retract Procedure: Locate the slideout system controller (C).
Unplug motor 1 and motor 2 connectors at the bottom of the slideout
controller. This releases the motor brakes for each
motor. The slideout room can now be manually
pushed in. Larger rooms may require several
people to push or pull them. Keep both sides of
Tracks
the slideout even while pushing/pulling. When the
room is completely in, plug both motor connectors
back into the control module. This will apply the
motor brakes for road travel.
These tracks are only fastened at each end of the track and appear to
"float" on the endwalls.
Manual Retract Procedure: Due to the motors being located in the wall
and the size of the slide out, the Lippert Slim Rack system will need to be
Slim Track
manually retracted by a professional. Please contact Customer Service, or
your nearest Jayco Dealer for assistance.
of the slide. The flexible drill extension (D) provided in your Customer
Information Packet is used to manually turn the motors. Retract the motors
by rotating clockwise. Retract each side in small steps, going back and
forth from side to side, until the slide is full retracted.
Cable
D
header board with brad nails. The center trim piece is
attached with glue. Gently pry the trim away to reveal
screws that attach the header board to the slide-out
roof. Remove the screws to take the fascia down. Use
the flexible drill extension (D above) provided in your
Customer Information Packet to turn the motor
clockwise and retract the slide-out.
Fascias that do not have center and end trim pieces, need only
remove the bottom trim to access the header board screws.
Motor
View of Slide Motor System Behind Fascia
A
B
5
C
Motor Access Point
