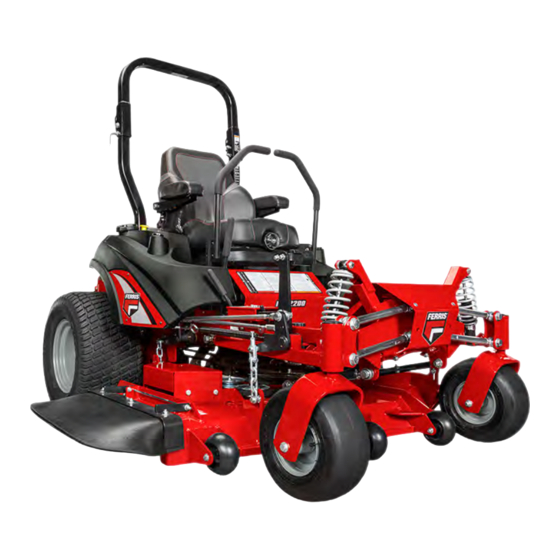

Summary of Contents for Ferris ISX2200 Series
-
Page 2: Table Of Contents
Table of Contents: Specifications..............30 Warranty................32 General Information.............. 3 Warranty Statement............32 Declaration of Conformity Statement......... 3 Identifying Your Unit ............3 CE Identification Tag Markings........... 3 Operator Safety..............4 Safety Alert Symbol and Signal Words......4 Operating Safely...............4 Slope Identification Guide..........7 Safety Rules and Information...........7 Safety Decals and Icons (Export Models)...... -
Page 3: General Information
Record your product model number, product serial number, engine model number, and engine serial number in the space Ferris is a registered trademark of Briggs & Stratton. provided for easy access. Declaration of Conformity When contacting your authorized service dealer for... -
Page 4: Operator Safety
injury. In addition, a hazard symbol may be used to represent the type of hazard. DANGER indicates a hazard which, if not avoided, will result in death or serious injury. WARNING indicates a hazard which, if not avoided, could result in death or serious injury. CAUTION indicates a hazard which, if not avoided, could result in minor or moderate injury. - Page 5 Read the Manual operate on a slope greater than 15 degrees (a 5.4 foot rise over a 20 foot length). Avoid turning down slopes; if possible turn up slopes. Avoid sudden turns or rapid speed changes. Reduce speed and use extreme caution on ALL slopes. ...
- Page 6 attempt to alter or bypass the system. See your dealer Check for overhead clearances before driving under any immediately if the system does not pass all the safety objects. Do not allow the roll bar to contact low overhanging interlock system tests found in this manual. obstacles such as tree branches and guide wires. ...
-
Page 7: Slope Identification Guide
Slope Identification Guide Training • Read, understand, and follow all instructions in the manual and on the unit before starting. If the operator(s) or mechanic(s) can not read English it is the owner’s responsibility to explain this material to them. •... - Page 8 conditions can affect the machines stability. Use caution • OSHA regulations may require the use of hearing when operating near drop-offs. protection when exposed to sound levels greater than 85 dBA for an 8 hour time period. • Do not mow in reverse unless absolutely necessary. Always look down, behind and to the side before changing directions. ...
- Page 9 • Do not use grass catcher on steep slopes. • Never fill containers inside a vehicle or on a truck bed with a plastic bed liner. Always place containers on the • Do not mow slopes if you cannot back up them. ground away from your vehicle before filling. ...
- Page 10 Roll Bar Instructions first and the positive last. Reconnect positive first and negative last. For models equipped with factory-installed Roll Over • Use care when checking blades. Wrap the blade(s) or Protection System (ROPS). wear gloves, and use caution when servicing them. Only replace blades.
-
Page 11: Safety Decals And Icons (Export Models)
• EVERY 100 HOURS - Inspect the ROLL BAR structure 1) Check for dirt or debris in the retraction mechanism. If and mounting hardware for: dirt or debris is found, it should be removed. 1) Any cracks in the structure (structural members and/or 2) Check to make sure the retraction mechanism retracts welds). - Page 12 E. Part Number: 7106109 Danger - Thrown objects hazard: Keep bystanders and children a F. Part Number: 5061042 safe distance away. Remove objects G. Part Number: 5100536 that can be thrown by the blade. Do H. Part Number: 5100685 not mow without discharge chute in place.
-
Page 13: Safety Icons For Optional Jack Kit Accessory
Warning: Fire Hazard - Keep children, open flames and sparks away from the battery, which could ignite explosive gases. Warning: Sulfuric acid can cause blindness or severe burns - Always wear safety goggles or a face shield when 5100685 - Decal, Warning, working on or near a battery. -
Page 14: Safety Interlock System
Zero-Turn-Rider Controls 2.) Crushing Hazard, Mower: (1.) Park machine on flat level ground and engage the parking brake; (2.) Stop the engine and remove the ignition key; (3.) Properly jack the machine and secure with jack stands before working under the machine. Safety Interlock System This unit is equipped with safety interlock switches. - Page 15 Moving a lever forward (A) from the NEUTRAL position (B) increases the FORWARD speed of the associated wheel, and pulling back (C) on a lever increases the REVERSE speed. Moving the levers outwards (D) from the NEUTRAL position locks the levers in the NEUTRAL LOCKOUT position. Note: The further a lever is moved away from the neutral position the faster the drive wheel will turn.
-
Page 16: Instrument Control Panel
Transmission Oil Fill: Transmission oil is added through the Fast throttle speed. Slow throttle speed. hydraulic oil tanks. It also serves as extra holding capacity for oil as the transmissions heat up and the hydraulic oil Ignition Switch: The ignition switch starts and stops the expands. -
Page 17: Operation
To begin recording PTO hours, pull the PTO switch up to engage the PTO clutch. The unit's engine must be running. WARNING The mode icon will display a "P" and the hour glass icon will Do NOT load this zero-turn rider on a trailer or truck using flash. -
Page 18: Stopping The Zero-Turn Riding Mower
turn the ignition switch to OFF immediately, and consult the engine operator's manual. Warm up the engine by running it for at least a minute before engaging the PTO switch or driving the unit. 4. After warming the engine always operate the unit at FULL throttle when mowing. - Page 19 Reverse Travel Practice To turn in place, “zero-turn,” gradually move one ground speed control lever forward from neutral and the other lever LOOK DOWN AND BEHIND, then gradually move both back from neutral simultaneously. Repeat several times. ground speed control levers evenly BACK from neutral. Slow Note: Changing the amount each ground speed control lever down and repeat.
-
Page 20: Mowing
Mowing 1. Engage the parking brake. Make sure that the PTO switch is disengaged, the ground speed control levers are locked in the NEUTRAL position and the operator is in the seat. 2. Start the engine. See Starting the Engine. 3. - Page 21 • Avoid mowing after rain or even heavy dew, and never The remainder of the mowing should be done in the opposite mulch when the grass is wet (moist grass does not mulch direction so that the clippings are dispersed OUT onto the well, and clumps beneath the mower deck).
-
Page 22: Pushing The Unit By Hand
The best mulching action typically results from cutting only the top 1/2 inch to 3/4 inch of grass blade. This provides short clippings which decompose properly (much more quickly than longer clippings). The ideal cutting height will vary with climate, time of year, and quality of your lawn. We recommend that you experiment with both the cutting height and ground speed until you achieve the best cut. -
Page 23: Attaching A Trailer
Attaching a Trailer 1. Pull the hair pin clips (A, Figure 20) out of the retainer pins (B). The maximum weight of a towed trailer should be less than 200 lbs (91kg). Secure the trailer with an appropriately sized clevis pin (A, Figure 21) and clip (B). Excessive towed loads can cause loss of traction and loss of control on slopes. -
Page 24: Check Engine Oil Level
Electronic Fuel Injection (EFI) System - EFI Models 2. Fill the fuel tank to the bottom of the filler neck. This will EFI is an electronically-controlled fuel management system allow for fuel expansion. which is monitored by an Electronic Control Unit (ECU). A Note: Do not overfill. -
Page 25: Purging The Air From The Hydraulic System
3. Stop the engine and engage the parking brake. 4. Close the transaxle’s bypass valves, start the engine, release the parking brake, and slowly move the unit’s ground speed control levers in both forward and reverse directions (5 to 6 times), as air is purged from the unit, the oil level will drop. -
Page 26: Lubricating The Forefront Suspension Control Arms
Generally, all moving metal parts should be oiled where contact is made with other parts. Keep oil and grease off belts and pulleys. Remember to wipe fittings and surfaces clean both before and after lubrication. Lubricating the ForeFront Suspension Control Arms Interval: Every 50 hours. -
Page 27: Seat Adjustment
2. Grease the front caster. 3. Remove the 1/4-28 grease fitting and reinstall the 1/4-28 bolt. 4. Repeat the process for the other side of the unit. Seat Adjustment To Adjust the Control Lever Placement The seat can be adjusted forward and back. Move the lever Loosen the jam nuts and adjust the placement bolt (B) in or (A, Figure 30), position the seat as desired, and release the out to properly adjust the control lever end spacing. -
Page 28: Cutting Height Adjustment
4. Slowly release the deck lift foot pedal until it comes to rest against the cutting height adjustment pin. WARNING Unsafe Operation Hazard. To set the cutting height at 5" (12,7 cm): DO NOT adjust the unit for a faster overall speed forward or 1. -
Page 29: Storage
Long Term Storage (Longer Than 30 Days) Before you store your unit for the off-season, read the Fuel and Maintenance instructions in the OPERATOR SAFETY section, then perform the following steps: 1. Drain crankcase oil while engine is hot and refill with a grade of oil that will be required when unit is used again. -
Page 30: Maintenance Schedule
7. Inflate tires to proper pressure. Check fluid levels. *More often in hot (Over 85°F, 30°C) weather or dusty operating conditions. 8. Start the engine and let it run slowly. DO NOT run at high **If equipped, replace if damaged. speed immediately after starting. - Page 31 Models with 61" Mower Decks Models with 61" Mower Decks Overall Width (with discharge 78" (198 cm) Weight (approximate) 1398 lbs (634 kg) chute down) Height 72" (183 cm)
- Page 32 Unless required under Australian Consumer Law, Ferris shall not be liable under this Warranty to the Customer or any other person in connection with this Warranty, for consequential, direct or indirect damages, loss or costs incurred or suffered by the Customer or any other person;...
- Page 33 ABOUT YOUR WARRANTY Warranty service is available only through Ferris Authorized Service Dealers. This warranty only covers defects in materials or workmanship. It does not cover damage caused by improper use or abuse, improper maintenance or repair, normal wear and tear, or stale or unapproved fuel.
- Page 34 Notes...
- Page 35 Notes...
