After these requirements are confirmed the control valve can be maintained and repaired.
Description of the Procedure
1. Disconnect the air supply from the actuator and / or
assembled accessories.
2. Disassemble the positioner from the valve as neces-
sary (See Figure 7: Remove the positioner).
3. Move the actuator to the open (retracted) position.
4. Turn the cap screws (240) counter clockwise to loosen
(See Figure 8: Remove the actuator).
5. Turn the lock nut (113) clockwise to loosen. Keep ac-
tuator coupling (345) from turning by securing with a
wrench.
6. Turn the yoke lock nut (76) counter clockwise to loos-
en.
7. Lift off and store the actuator safely.
8. Place the valve body assembly on a table for disas-
sembly.
NOTICE
are basically two different constructions that primarily re-
late to the seat design. This also applies to the bonnets
and packing, which are all described individually due to
the variety of combinations.
14
FCD VLEEIM1485-04 (EN/A4) November 2022
Before you start working, find out which
valve variant you are dealing with. There

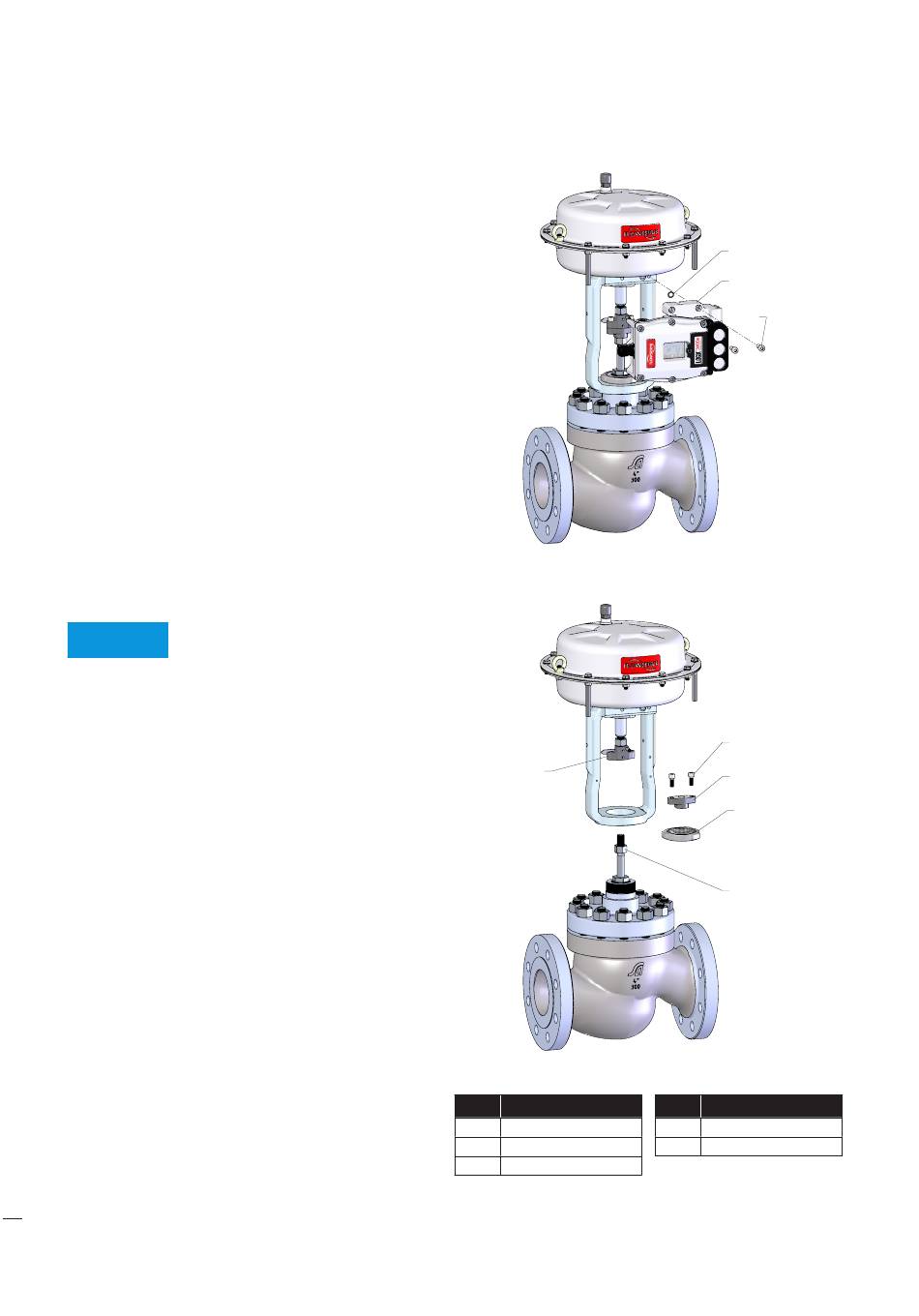

Figure 7: Remove the positioner
249
Figure 8: Remove the actuator
Item Part
76 Yoke Lock Nut
113 Lock Nut
240 Socket Head Srew (2x)
Table 10: Coupling parts identification
O-ring
Positioner
Socket
screw
240
345
76
113
Item Part
249 Actuator Coupling
345 Valve Coupling
