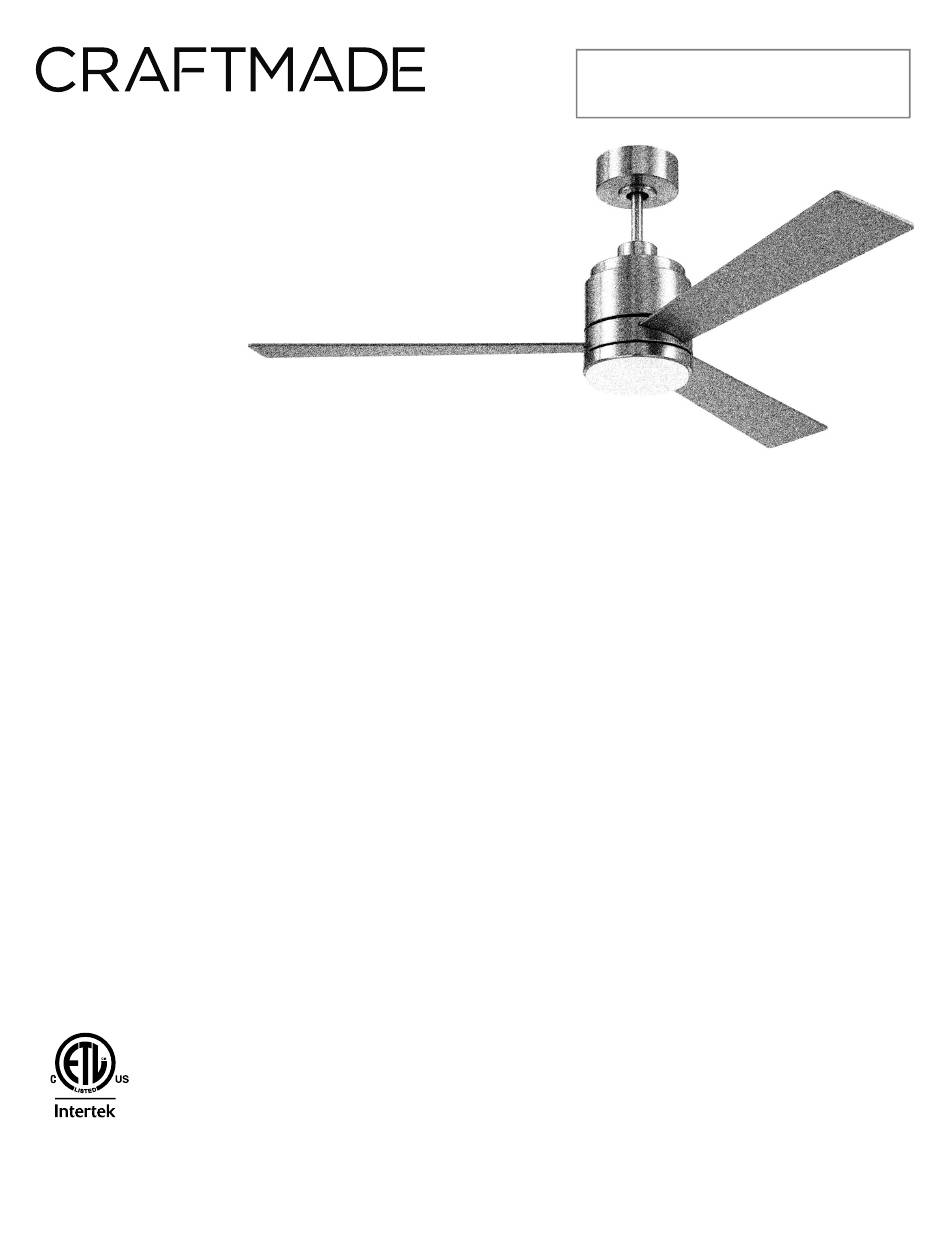

McCoy
Installation Guide
For Model:
MCY52
4007498
net weight of 3 blades fan: 13.82 lb (6.27 kg)
net weight of 4 blades fan: 14.33 lb (6.49 kg)
net weight of 5 blades fan: 15.21 lb (6.89 kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE

Table of Contents:

Warranty. pg. 11
page 1
PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the McCoy MCY52 and is the answer not in the manual?

Questions and answers

Related Manuals for Craftmade McCoy MCY52

Summary of Contents for Craftmade McCoy MCY52

  • Page 1: Table Of Contents

    READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE McCoy Installation Guide For Model: MCY52 Table of Contents: Safety Tips. pg. 2 Unpacking Your Fan. pg. 3 Parts Inventory. pg. 3 Installation Preparation. pg. 4 Hanging Bracket Installation. pg. 4 Fan Assembly.

  • Page 2: Safety Tips

    Do not operate the reverse switch until the fan has come to a complete stop. Do not use detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for most cleaning. Distributed by: Craftmade, 3901 S. 20 Avenue, DFW Airport, TX, 75261; 800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur.

  • Page 3: Unpacking Your Fan

    1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.

  • Page 4: Installation Preparation

    3. Installation Preparation. blade edge To prevent personal injury and damage, ensure that the hanging location allows the blades a clearance of 7 feet (2.13m) from the floor and 7 feet inches 30in. (76cm) from any wall or obstruction. (2.13 m) (76 cm) This fan is suitable for room sizes up to 400 square feet (37.2 square meters).

  • Page 5: Fan Assembly. Pgs

    5. Fan Assembly. stop pin set screw Remove hanging ball from downrod provided by loosening set screw on hanging ball. Remove pin hanging ball and clip. Lower hanging ball and remove stop pin. clip Slide hanging ball off of the downrod. [Refer to diagram 1.] diagram 1 Loosen yoke set screws and nut at top of motor...

  • Page 6: Wiring. Pgs

    5. Fan Assembly. (cont.) wood ceiling With the hanging bracket secured to the outlet box and joist able to support the fan, you are now ready to hang your safety cable loop fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket and let hanging ball rest on the hanging bracket.

  • Page 7: Canopy Assembly

    6. Wiring. (cont.) Modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment. *NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 8: Blade Assembly

    8. Blade Assembly. WARNING: To reduce the risk of serious bodily injury, DO NOT use power tools to assemble the blades. If screws are overtightened, blades may motor housing crack and break. Tip: Place one fiber washer on each blade attachment screw prior to installing blades.

  • Page 9: Wall Control Operation

    9. Light Kit Assembly (Optional). (cont.) motor housing If you wish to USE the light, align grooves on shade with nodules on inside of fitter plate and push up gently on shade. Turn shade to the RIGHT (clockwise) until shade slides completely into place.

  • Page 10: Testing Your Fan

    11. Testing Your Fan. LIGHT DIMMER It is recommended that you test fan before SPEEDS finalizing installation. Move the slider switches on the wall control to the lowermost position (OFF). Restore power from circuit box. Test fan speeds with slider switch on right side of wall control. MEDIUM-LOW Start at the OFF position (no blade movement) MEDIUM...

  • Page 11: Troubleshooting

    Troubleshooting. Warranty. CRAFTMADE LIMITED LIFETIME WARRANTY: WARNING: Failure to disconnect power supply CRAFTMADE warrants this fan for use as intended prior to troubleshooting any wiring issues may under the following provision: CRAFTMADE will result in serious injury. replace any fan which has faulty performance due to a defect in material or workmanship or fails to operate satisfactorily when failure results from normal use.
