- Page 1 User's Manual M730V LCD Monitor...
-
Page 2: Federal Communications Commission (Fcc) Statement
Federal Communications Commission (F.C.C.) Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ... 2 INTRODUCTION ... 3 Product Description ... 3 Package Overview ... 3 Recommended Use of the Monitor ... 4 The Guideline of Operation Angle of LCD Monito ... 5 The Camera Function in LCD Monitor ... 6 CONTROLS AND ADJUSTMENTS ... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please read the following instructions carefully. This manual should be retained for future reference. 1. To clean the LCD Monitor screen make sure the Monitor is in the power off mode. Unplug the Monitor from its power source before cleaning it. Stand away from the LCD Monitor and spray cleaning solution onto a rag. -
Page 5: Introduction

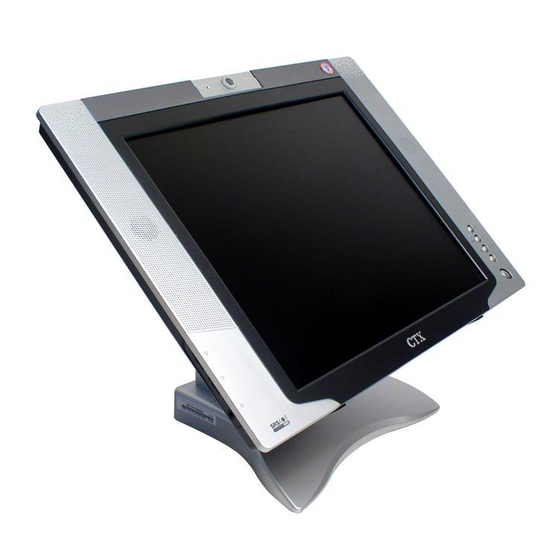

Product Description Your LCD monitor incorporates high quality display, solid structure and multimedia savvy. With user-friendly interfaces, user will enjoy the professional PC application as well as Audio Video performances. In addition, it has power-saving capabilities and emits no X-ray radiation. The features are: •... -
Page 6: Recommended Use Of The Monitor
Recommended Use of the Monitor • Power – Use the type of power indicated on the marking label. • Plugs – Do not remove any of the prongs of the monitor's three-pronged power plug. – Disconnect the power plug from the AC outlet if you are not going to use it for an indefinite period of time. -
Page 7: The Guideline Of Operation Angle Of Lcd Monito
The Guideline of Operation Angle of LCD Monitor 1. Unpack the monitor from Carton box. 2. Put the monitor on a flat table. 3. To hold the base of monitor with one hand and pull the frame of panel of monitor, let the panel up with base on the vertical position. -
Page 8: The Camera Function In Lcd Monitor
The Camera Function in LCD Monitor The Built-in Camera and Microphone are useful tools which enable internet study, net meeting, chat, and other entertainment purposes & functions. The Scope of View Angle INTRODUCTION Microphone The Guideline for Adjusting the Angle of Camera 0°... -
Page 9: Controls And Adjustments
CONTROLS AND ADJUSTMENTS Once you have installed this monitor with your system, please read the instructions in this section, It provides you some guidelines on how to use the monitor more efficiently, and lead you through the various functions of the user controls and explain how to adjust the monitor to your personal preference. -
Page 10: Osd Main Menu
CONTROLS AND ADJUSTMENTS On Screen Display (OSD) Main menu 1. Press " " to open the OSD main menu. 2. Use the " " and " " arrows to move through the displayed functions. 3. Press " " to confirm your selected function. When the main screen starts, there are following functions to choose Auto-Tune (It is disabled in DVI Mode) -
Page 11: Color 1
CONTROLS AND ADJUSTMENTS Color To enter this item menu, you can choose either the Auto Color, Color 1, Color 2, Color 3, Best Color and User mode. Auto Color It is disabled in DVI Mode Color 1 Color 2 Color 3 Best Color User Image... -
Page 12: Osd Setting
CONTROLS AND ADJUSTMENTS OSD Setting To enter this item menu, it can be adjusted OSD position and OSD timeout. H. Position V. Position Center OSD timeout Language To select the OSD languages between English, German, French, Spanish, Italian, Chinese, Japanese or Russian . Reset •... -
Page 13: Energy Declaration
CONTROLS AND ADJUSTMENTS Energy Declaration This monitor is equipped with a function for saving energy, which supports the VESA Display Power Management Signaling (DPMS) standard. This means that the monitor must be connected to a computer. The time settings for switching to a power saving mode are adjusted from the system unit by software. -
Page 14: Troubleshooting
TROUBLESHOOTING Troubleshooting If you are experiencing trouble with the LCD display refer to the following. If the problem persists please contact your local dealer or our service center. The monitor does not respond after you turn on the system. • Check if the monitor is turned on. •... -
Page 15: Technical Information
TECHNICAL INFORMATION Compatibility This LCD monitor supports multiple operating platforms such as IBM compatible computers. This section provides you with detailed information on pin assignment of the D-Sub/DVI connector and the preset timing chart of the prevailing video standards. VGA Pin Assignment Male Mini D-15 Connector VGA Modes Other Modes... -
Page 16: Dvi Pin Assignment
TECHNICAL INFORMATION DVI Pin Assignment DVI Modes Resolution VCLK(MHz) 640*480 25.175 800*600 40.000 1024*768 65.000 1280*1024 108.000 DVI Connector Horizontal Vertical Frequency(KHz) Frequency(Hz) 31.469 37.879 48.363 63.981 Standard 59.940 IBM VGA 60.000 VESA 60.000 VESA 60.000 VESA... -
Page 17: Specification
TECHNICAL INFORMATION Specifications LCD Panel [Monitor] Effective display size Resolution (max.) Displayable colors Brightness Contrast ratio Response time Scan Frequency(VGA) Scan Frequency(DVI) Audio Input Audio Output User controls Power Consumption Input signal Power Supply Plug & Play USB Hub [Camera] pixels resolution Object Distance...
