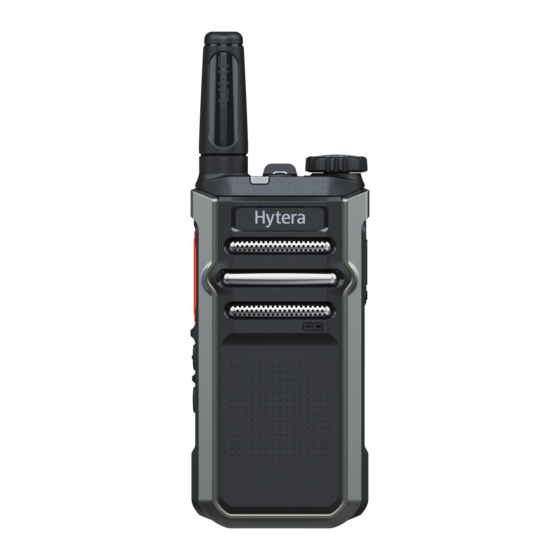

- Page 1 AP32X Two-way Radio User Manual Hytera Communications Corporation Limited...
- Page 2 Preface Welcome to the world of Hytera and thank you for purchasing this product. This manual includes a description of the functions and step-by-step procedures for use. To avoid bodily injury or property loss caused by incorrect operation, please carefully read the Safety Information Booklet before use.
- Page 3 Copyright Information Hytera is the trademark or registered trademark of Hytera Communications Corporation Limited (the Company) in the People's Republic of China (PRC) and/or other countries or areas. The Company retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners.
- Page 4 IC SAR statement This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The portable device is designed to meet the requirements for exposure to radio waves established by the ISED.
-
Page 5: Table Of Contents
User Manual Contents Contents Documentation Information ........................1 1. Packing List .............................. 3 2. Product Layout ............................4 3. Before Use ..............................5 3.1 Charge the Battery ..........................5 3.2 Attach the Belt Clip ..........................5 3.3 Attach the Audio Accessory ......................... 6 4. -
Page 6: Documentation Information
User Manual Documentation Information Documentation Information Documentation Conventions Instruction Conventions Icon Description Indicates information that can help you make better use of your product. Indicates references that can further describe the related topics. Indicates situations that could cause data loss or equipment damage. Indicates situations that could cause minor personal injury. - Page 7 Documentation Information User Manual Operation Description Short press Press and release quickly. Long press Press and hold for preset time. Press and hold Keep the key pressed.
-
Page 8: Packing List
User Manual Packing List 1. Packing List Unpack carefully and check that you have received the following items. If any item is missing or damaged, contact your dealer. Item Quantity (PCS) Item Quantity (PCS) Radio Strap Belt Clip Documentation Kit Figures in this manual are only for reference. -
Page 9: Product Layout
Product Layout User Manual 2. Product Layout To assign other features to programmable keys, contact your dealer. -
Page 10: Before Use
User Manual Before Use 3. Before Use 3.1 Charge the Battery Read the Safety Information Booklet before charging. The remaining lithium-ion battery power is limited to 30% pursuant to the new lithium battery shipment regulation approved by the International Air Transport Association (IATA). Use the USB Type-C cable to connect the radio with battery attached to the power adapter, power bank, or PC. -
Page 11: Attach The Audio Accessory
Before Use User Manual 3.3 Attach the Audio Accessory For optimal waterproof and dustproof performance, do as follows: Attach the accessory with care to avoid scraping the silicone rubber surrounding the audio jack. Close the audio jack cover after removing the accessory. Open the audio jack cover. -
Page 12: Basic Operations
User Manual Basic Operations 4. Basic Operations 4.1 Turn On or Off the Radio Long press the On-Off key. 4.2 Check the Battery Power Press the preprogrammed Check Battery Power key. You can learn about the remaining battery power through the LED indicator and Text To Speech (TTS). LED Indicator Battery Level Glows green for 2s... -
Page 13: Make A Call On Analog Channel (Without Signaling)
Basic Operations User Manual 4.7 Make a Call on Analog Channel (Without Signaling) To ensure optimal voice quality on the receiving radio, keep the microphone about 2.5 cm to 5 cm away from your mouth during speaking. On an analog channel without signaling, you can initiate a call to all the other users on the channel. Rotate the Channel Selector knob to select an analog channel. -
Page 14: Operating Status
User Manual Operating Status 5. Operating Status You can learn the radio status through the LED indicator. LED Indicator Radio Status Flashes green The radio is being turned on. Glows red The radio is transmitting. Glows green The radio is receiving. Once every minute The battery power is low. -
Page 15: Supplementary Services
Supplementary Services User Manual 6. Supplementary Services To configure the features in this chapter, contact your dealer. 6.1 VOX Voice Activated Transmit (VOX) allows the voice to trigger transmission. When the voice detected by the microphone reaches the value to trigger the transmission, the radio automatically transmits the voice without the PTT key pressed. VOX Gain preprogrammed by your dealer is used to control the sensitivity of microphone transmission. -
Page 16: Scrambler
User Manual Supplementary Services level requires stronger signal. To adjust Squelch Level, press the preprogrammed Adjust Squelch Level key. 6.5 Scrambler Scrambler allows the radio to invert the frequency spectrum of transmitted audio signals. Only the receiving radio with the same Scrambler settings can restore the audio signals. This prevents eavesdropping and ensures communication privacy. -
Page 17: Troubleshooting
Restart the radio. temporarily. The keys do not work. Contact your dealer or Hytera technicians for The keys may be damaged. maintenance. The indication may be abnormal. Restart the radio. The LED indicator Contact your dealer or Hytera technicians for is abnormal. -
Page 18: Care And Cleaning
User Manual Care and Cleaning 8. Care and Cleaning To guarantee optimum performance as well as a long service life of the product, follow the tips below. 8.1 Product Care Do not pierce or scrape the product. Do not drop the product. ... -
Page 19: Optional Accessories
User Manual 9. Optional Accessories Use the accessories approved by Hytera only. Otherwise, we will not be liable for any loss or damage arising out of the use of unauthorized accessories. Contact your local dealer for the optional accessories used with the product. -
Page 20: Abbreviations
User Manual Abbreviations 10. Abbreviations Abbreviation Full Name IATA International Air Transport Association Light-Emitting Diode Push-to-Talk Text To Speech... - Page 21 Hytera Communications Corporation Limited. © 2023 Hytera Communications Corporation Limited. All Rights Reserved. Address: Hytera Tower, Hi-Tech Industrial Park North, 9108# Beihuan Road, Nanshan District, Shenzhen, People's Republic of China Postcode: 518057 https://www.hytera.com...
