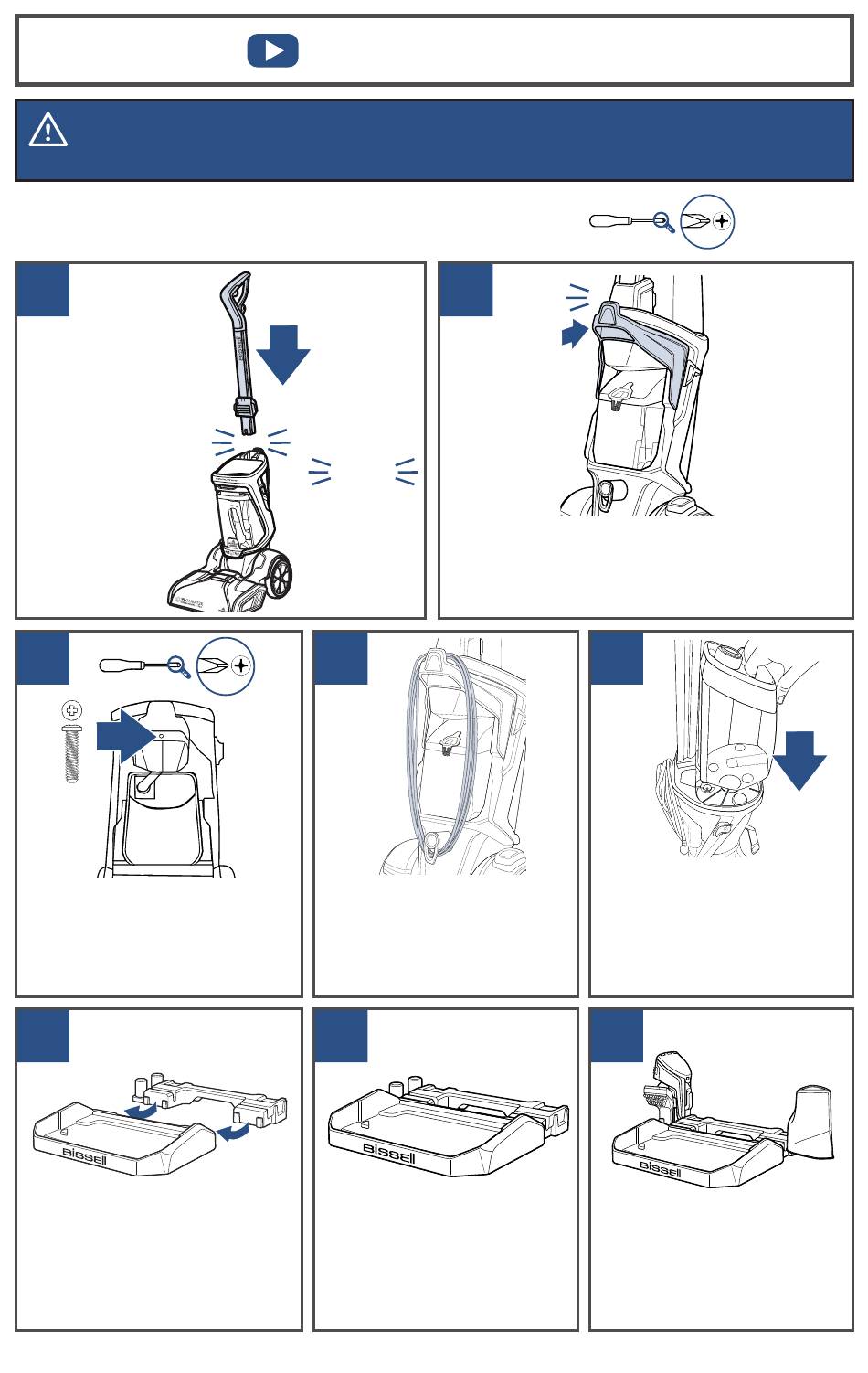

Assembly
WARNING
Do not plug in your deep cleaner until you are familiar with all instructions and operating procedures.
A Phillips-head screwdriver is required for assembly in Step 3.
1
First, insert the
(aluminum)
Upper Handle
at the top of the
base until you
hear a "click".
Do NOT put the
Clean Water
Tank on the
machine until
Step 5.
3
Use a Phillips-head
screwdriver to secure the
screw (found taped to
Upper Handle) into the
Carry Handle.
6
Press Part B (the larger
piece) down, onto Part A
of the Rinse & Storage Tray.
(There are 2 hooks on each
side of Part A that hook
under Part B.)
2
click
Next, align the Carry Handle with the slots
on either side of the base (behind the
Power Button and Cleaning Mode Switch).
The Carry Handle will "click" into place.
4
Wrap the cord around
the Carry Handle and
Quick Release™ Cord
Wrap hooks.
7
Your tray is assembled
and ready for use.
5
Side
View
At the bottom of the
Upper Handle, align the
Clean Water Tank with
the grooves and slide
the tank into place.
8
The tools and Water
Rinse Cup can also be
stored on the Rinse &
Storage Tray.
