Wiring Instructions

IMPORTANT! Disable power before wiring up the microbar.

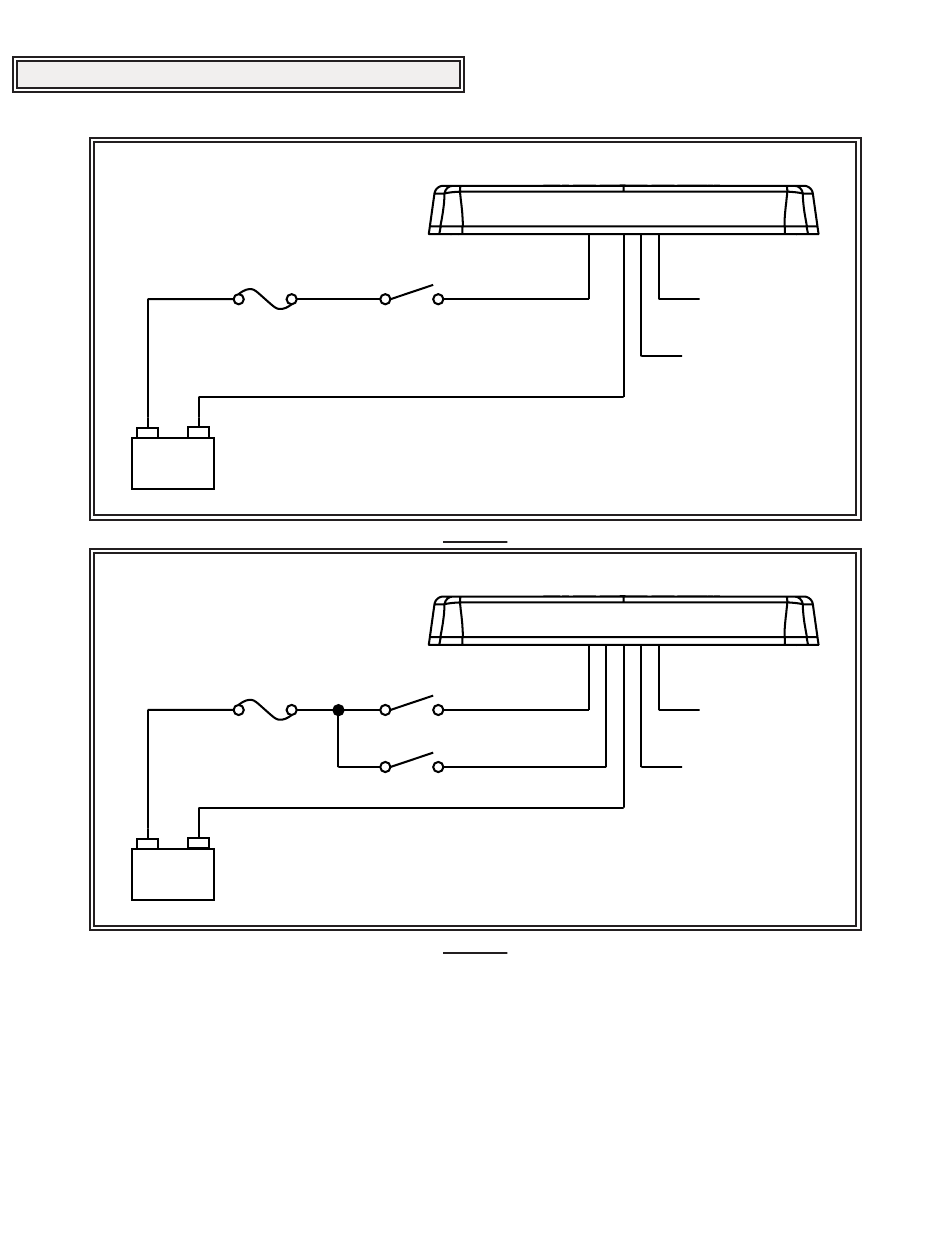

The wiring for the permanent mount microbar is as shown in Figure 3 & 4. All wiring should be a minimum of 18AWG. The positive line must
have a 10 amp fuse, as shown. A switch may be used to control the on/off function.
+
+
FUSE (10A)
FUSE (5A)
USER SUPPLIED (USER SUPPLIED) USER SUPPLIED
-
FUSE (10A)
FUSE (5A)
USER SUPPLIED (USER SUPPLIED) USER SUPPLIED
USER SUPPLIED
-
C
RED - POSITIVE
RED - POSITIVE
SWITCH
SWITCH
(USER SUPPLIED)
BLACK - GROUND
BLACK GROUND
Figure 3
C
RED - POSITIVE
RED - POSITIVE
COLOR 1
COLOR 1
SWITCH
SWITCH
(USER SUPPLIED)
WHITE - POSITIVE
WHITE - POSITIVE
COLOR 2
SWITCH
SWITCH
(USER SUPPLIED) BLACK - GROUND
BLACK GROUND
Figure 4
5517 SINGLE
YELLOW - SYNC
YELLOW - SYNC
(ISOLATE WHEN NOT IN USE)
(ISOLATE WHEN NOT IN USE
BLUE - DIM/FLASH PATTERN
BLUE - DIM/FLASH SELECT
(ISOLATE WHEN NOT IN USE)
(ISOLATE WHEN NOT IN USE
5517 DUAL
YELLOW - SYNC
YELLOW - SYNC
(ISOLATE WHEN NOT IN USE)
(ISOLATE WHEN NOT IN USE
COLOR 2
BLUE - DIM/FLASH PATTERN
BLUE - DIM/FLASH SELECT
(ISOLATE WHEN NOT IN USE)
(ISOLATE WHEN NOT IN USE
