- Page 1 OSHA 1910.140, 1910.66 SRL-P Instruction Manual This manual is intended to meet the manufacturer’s instructions as required by ANSI Z359.14-2021 and should be used as part of an employee training program as required by OSHA. V1.0 2023 Copyright Safewaze 220-00069...
-
Page 2: Table Of Contents
18.0 MAINTENANCE, SERVICE, AND STORAGE ........15 19.0 INSPECTION ..................16 20.0 LABELING ...................16-17 User Information Date of First Use: Serial#: Trainer: User: Do not throw away these instructions! Read and understand these instructions before using equipment! Page 2 V1.0 2023 Copyright Safewaze... - Page 3 Use of this equipment for any other purpose, such as material handling, sports activities, or other action not described in these User Instructions is not approved by Safewaze. Use of this equipment in a manner outside the scope of those covered within this Manual can result in serious injury or death.

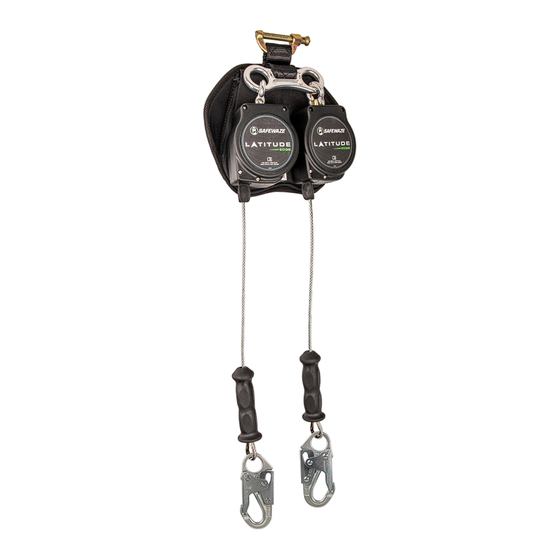

- Page 4 1, 2 D Steel Cable ⌀3/16 Nylon 10.4 SW8008‐11LE‐RBHDL 1, 2 D Steel Cable SW8008‐11LE‐RBHALUDL 1, 2 D Steel Cable ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ Page 4 V1.0 2023 Copyright Safewaze...
-
Page 5: Introduction
1.0 INTRODUCTION Thank you for purchasing a Safewaze Self Retracting Lifeline (SRL). This manual must be read and understood in its entirety and used as part of an employee training program as required by OSHA or any applicable state agency. This manual and any other instructional material must be provided to the user(s) of the equipment. -
Page 6: Worker Classifications
Free Fall: Safewaze SRLs when used correctly with the unit anchored directly overhead and no slack in the lifeline, will limit the free fall distance to 0 ft. (0 m). In order to limit free fall distances, keep attachment of the SRL below Dorsal D-ring height to as minimal a distance as possible. Safewaze Latitude Edge SRL-Ps are designed to allow for foot level tie-off, but never anchor the SRL at a level below the user’s feet. -
Page 7: Inspection Frequency
Safewaze SRLs are authorized for use with Horizontal Lifeline Systems but must NEVER be used as the lifeline constituent of an HLL System. Safewaze Class 1 SRLs must be used in overhead applications only and are not authorized for use below the Dorsal D-ring. - Page 8 10.0 ACTUAL ARREST DISTANCE / MINIMUM REQUIRED FALL CLEARANCE Personal Fall Arrest: Safewaze Class 2 SRLs can be used as part of a complete Personal Fall Arrest System (PFAS) for a maximum of one user. Only one user may be connected to an SRL. Avoid sharp and/or abrasive edges. If contact with an abrasive surface is unavoidable, proper edge protection must be used. The structure utilized for attachment must be capable of withstanding a load of 5,000 lbs.
- Page 9 FIGURE 2 - EXAMPLE MINIMUM REQUIRED FALL CLEARANCE CALCULATION (CLASS 1 SRL) ***Diagram shown is an example fall clearance calculation ONLY. Latitude Edge SRL-P Minimum Required Fall Clearance ANSI Z359.14, ANSI A10.32 OSHA 1910.66, OSHA 1926.502 OSHA 1910.66, OSHA 1926.502 ANSI Z359.14, ANSI A10.32...
- Page 10 Finally, Letter Z represents the Fall Clearance distance required based upon the values of Letters X and Y. • Table 9 provides Fall Clearance distances required when using a Safewaze Latitude Edge SRL-P. To determine your Fall Clearance requirements, find the value for your Setback Distance for Letter (X) on the left side of the chart.
-
Page 11: Swing Falls
• In evaluating your Leading Edge operations, ensure that work parameters are within the Maximum Free Fall Distance, Minimum Setback Distance, and Minimum Fall Clearance Required in a fall over an edge. These parameters are indicated on the Latitude Edge SRL-P Labeling. -
Page 12: Fall Protection And Rescue Plan
During normal operations, the lifeline constituent of the SRL will extend and retract freely with no slack or hesitation as the worker moves at normal speeds. In the event of a fall, Safewaze SRLs are equipped with a speed sensing braking system. The braking system will activate, stopping the fall, and absorbing much of the energy created by the fall. -
Page 13: Compatibility Of Connectors
Only a Full Body Harness (FBH) may be used with this equipment. The Full Body Harness must connect to the SRL via the dorsal D-ring. Safewaze SRLs are not rated for use with a body belt. Use of Safewaze SRLs with a body belt may result in injury. Figure 6 illustrates typical connection of Safewaze SRLs to the Dorsal D-ring of the Full Body Harness. - Page 14 (See Section 18) if applicable, or disposed of (See Section 19). 16.3 BODY SUPPORT A full body harness must be worn when using Safewaze SRLs. 16.4 SYSTEM CONNECTIONS Figure 6 illustrates some typical examples of harness and anchorage connections for Latitude Edge SRL-Ps. When using a snap hook to make a connection, ensure roll-out cannot occur (See Figure 4).
-
Page 15: Performance
18.2 SERVICE Only Safewaze or entities authorized in writing by Safewaze, shall make repairs to this equipment. Remove the SRL from use if the SRL has been subjected to fall arrest forces or has been used to affect a rescue. If unrepairable dispose of the SRL as recommended in Section 19. For questions regarding disposal, service, or repair of Safewaze SRLs, contact Safewaze at (800) 230-0319. -
Page 16: Inspection
19.4 DISPOSAL Dispose of the Safewaze SRL if it has been damaged by fall arrest forces or inspection reveals an unsafe or defective condition that cannot be repaired by an authorized Safewaze Service Center. Before disposing of the SRL, cut the lifeline in half so that it is not mistakenly reused. For questions regarding disposal, service, or repair of Safewaze SRLs, contact Safewaze at (800) 230-0319. - Page 17 Walking/Working Surface Walking/Working Surface DO NOT ATTEMPT TO SERVICE OR REPAIR THIS UNIT! CONTACT SAFEWAZE FOR SERVICE OR WARNING: This is a single user fall arrester device. Device must be inspected prior REPAIR INFORMATION. Device must be inspected prior to each use in accordance with the manufacturer’s instructions.
- Page 18 Test Braking / Locking Function PASS FAIL NOTE CONNECTORS Connector (Self-Closing & Locking) NOTES Impact Indicator Hook Body / Rivets Corrosion Pitting / Nicks 225 Wilshire Avenue SW, Concord NC 28025 • 800-230-0319 • www.safewaze.com Page 18 V1.0 2023 Copyright Safewaze...
- Page 19 INSPECTION LOG Date Inspection Items Corrective Initials Noted Action Page 19 V1.0 2023 Copyright Safewaze...
- Page 20 Safewaze 225 Wilshire Ave SW Concord, NC 28025 PHONE: 1-800-230-0319 FAX: 1-704-262-9051 WEB: safewaze.com EMAIL: info@safewaze.com Page 20 V1.0 2022 Copyright Safewaze...
