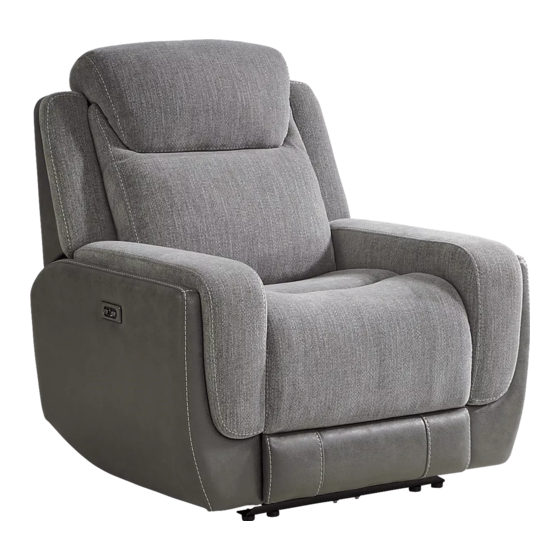

SYNE 2179-85PHR ZG Wall Prox Recliner w/Pwr headrest
***CAUTION: The item is heavy, assembly should be performed by two people.
No
Description
A
LSF Wing
B
Back Cushion
C
RSF Wing
Assembly Instructions
SKU# 11521716 11521704 11521728
Parts and Hardware List
Qty
No
1
1
1
Description
D
Recliner Base
E
Transformer
Qty
1
1
Advertisement
Table of Contents
Related Manuals for ROOMS TO GO SYNE 2179-85PHR
Summary of Contents for ROOMS TO GO SYNE 2179-85PHR
- Page 1 Assembly Instructions SYNE 2179-85PHR ZG Wall Prox Recliner w/Pwr headrest SKU# 11521716 11521704 11521728 ***CAUTION: The item is heavy, assembly should be performed by two people. Parts and Hardware List Description Image Description Image LSF Wing Recliner Base Back Cushion...
- Page 2 Step2 Locate the power cord C attached to the bottom back and connect to plug D located at the rear of seat. Step 1 Slide the metal receiver over the metal post.Press both sides of back firmly downward until locked in Step 3 place.
- Page 3 2179RTG Function introduction for JLDK.67.05.01/JLDK.67.05.02 A．Functions: LSF JLDK.67.05.01 Raise headrest Lower headrest Home Close Recliner Open recliner Front USB port RSF JLDK.67.05.02 Lower headrest Open recliner Raise headrest Close Recliner Home Front USB port C.USB charging ports: 1) USB ports are for charging mobile devices ONLY (not compatible with computers).
