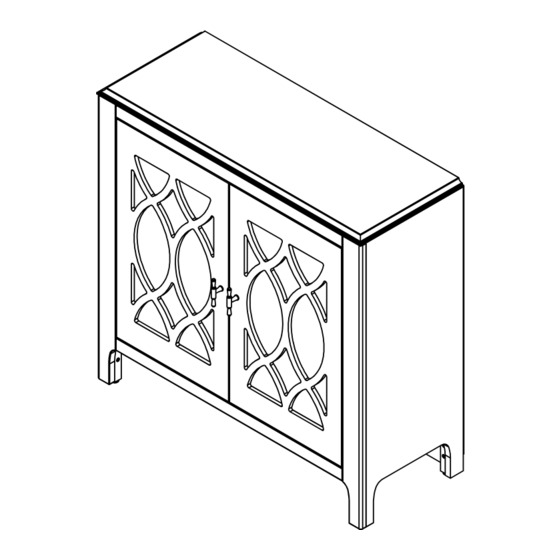

ASSEMBLY INSTRUCTIONS MODEL No. SPA149-210 / 26049230
2 DOOR CABINET
Important: Be sure to check all packing material carefully for small parts which may come loose
inside carton during shipment. Separate, identify and count all parts and metal hardware.
Compare with part list and hardware illustrations to be sure all parts are present. If any part(s)
is missing or damaged contact your dealer's customer services deparment. For efficient and
fast service, please indicate the model number and the part needed.
ATTENTION: Some lettered parts listed on the instruction sheets may not be in
the parts bag, they may already be assembled.
TOOLS REQUIRED
(Not included)
Phillips Screwdriver
HARDWARE:
ANTI-TIP
Part No. HB-65UV (1 Pc)
BOLT 8 x 32 x 7/8"
Part No. HCPP-078A
(2 Pcs) INSTALLED
SPA149-211/ 26249234
SPA149-231/ 26649232
SPA149-235 /26449238
PULL
Part No. HBJ-3280
(2 Pcs)INSTALLED
PAGE 1 OF 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ROOMS TO GO SPA149-210 / 26049230
Summary of Contents for ROOMS TO GO SPA149-210 / 26049230
- Page 1 ASSEMBLY INSTRUCTIONS MODEL No. SPA149-210 / 26049230 SPA149-211/ 26249234 2 DOOR CABINET SPA149-231/ 26649232 SPA149-235 /26449238 Important: Be sure to check all packing material carefully for small parts which may come loose inside carton during shipment. Separate, identify and count all parts and metal hardware.
- Page 2 INSTRUCTIONS SHEET ADJUSTABLE WOOD SHELF STEP 1. STEP 2. STEP 3. PAGE 2 OF 4...
- Page 3 Warning Advertencia Avertissement WARNING INSTALL FURNITURE TIPPING RESTRAINT KIT ANTI-TIP Installation instructions: This tip restraint must be attached to wall stub using 2” screw enclosed 1.Attach a bracket securely to the back top rail of the furniture using the 5/8” screw provided through the smaller hole. 2.
- Page 4 Directions of Adjusting Euro Style Hinges 1.- PLEASE REMOVE SHIPPING SCREW. #1 2.- LATERAL ADJUSTMENT a)Loosen screw #4 slightly. b)Turn screw #2 to move door leftor right. c)Re-tighten screw #4. d)Adjust all hinges accordingly. 3.- VERTICAL ADJUSTMENT Loosen screws #3 to move door upor down, then tighten securely.
