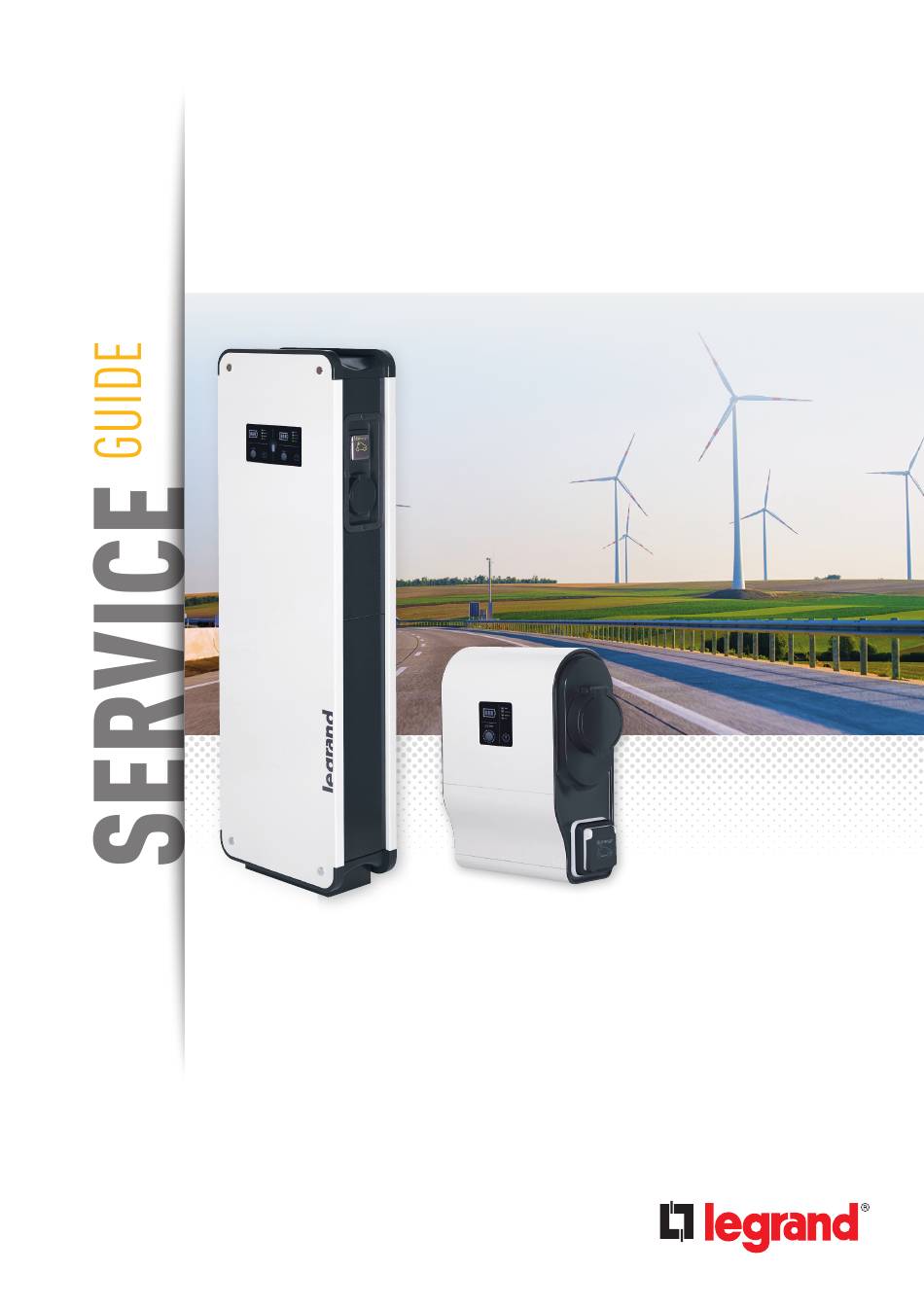

- Page 1 GREEN’UP CHARGING STATIONS THE GLOBAL SPECIALIST IN ELECTRICAL AND DIGITAL BUILDING INFRASTRUCTURES...
- Page 2 (PPE), but this is a legal and regulatory obligation that must be scrupulously res- pected. In accordance with its continuous impro- vement policy, Legrand reserves the right to change the specifications and illus- trations without notice. All illustrations, descriptions and technical information...
-
Page 3: Table Of Contents
..... 9 Annex - Maintenance log ... . 14 SERVICE GUIDE GREEN’UP CHARGING STATIONS WWW.LEGRAND.COM... -
Page 4: Safety Instructions
Voltage / Current / Temperature values other than those specified in the Documentation. Legrand declines all responsibility for any modification or repair of the equipment making up the enclosure that is not authorized by ■... - Page 5 However, it is always the customer’s responsibility to verify and validate that Legrand products are suitable for its installation and use. The customer must ensure proper installation, maintenance and operation of the equipment to avoid any risk of injury to person- nel or damage to property in the event of product failure, especially for applications that require a very high level of safety (e.g.,...
-
Page 6: Purpose Of Maintenance
PURPOSE OF MAINTENANCE During use, your charging station may be exposed to a variety of factors, such as high or low temperature variations, power surges, ambient pollution (e.g., dust, humidity, animal droppings...), wear and tear (contactors...), etc. It’s also important to regularly update the firmware of your charging station using the EV Charge Application (which is free and works via Bluetooth) or the web pages of the optional communication kit (reference 0 590 56). - Page 7 0 580 49 + 0 590 54 0 590 56 0 590 59 (1) Can be fitted with a communication kit ref. 0 590 56 You can find further documentation as well as all the technical information of the products on: www.legrand.com SERVICE GUIDE GREEN’UP CHARGING STATIONS WWW.LEGRAND.COM...
- Page 8 PURPOSE OF MAINTENANCE This guide also applies to the Green’up Premium charging stations below, available until the end of 2021: Options Average charging time Number (in hours) depending on RFID of char- of vehicle and battery Reader Power ging Charging Wall Stand Com-...
-
Page 9: Maintenance Schedule
If there has been a change, it may be necessary to resize both the charging station and the installation. Please get in touch with your Legrand Group contact to verify that the conditions for using your equipment are still satisfied. - Page 10 MAINTENANCE SCHEDULE IN SERVICE OPERATIONS PERIODICITY POWERED DOWN (OPERATING) 2/5 - MECHANICAL INSPECTIONS Checking the correct operation of Outlets Annual On implementation 2 months after Check tightening torques: implementation conductors, product power charging stations... Following which annually Grease sockets (perfluorinated lubricant such as Annual Lubrilog Fluolog MG 2) Checking circuit board connections...
-
Page 11: Troubleshooting
TROUBLESHOOTING If you come across any issues using or implementing the charging stations, please refer to the table below. If the problem persists, or if it is not resolved using the table below, contact your Legrand Group. FAULT INDICATORS POSSIBLE CAUSES ACTIONS Forcing the charge by pressing the «Stop»... - Page 12 2. Check that your charging station is the at Startup latest software version (update available via the EV Charge App) or on the www.legrand. com website (with communication kit) Check the power supply upstream of the The charging station is...
- Page 13 Mode 2 cable plugged in (Green’up Unplug and then reconnect your mode 2 cable White lights Incorrect detection of Access socket) and If the issue persists, contact your Legrand steady the domestic socket charging does not Group representative start Mode 2 cable unplugged (Green’up...
- Page 14 - Ensure that your environment is not disrupted (other nearby smartphones near the station with Bluetooth enabled and paired outside the application) If the problem continues, contact your Legrand Group representative It is not possible to connect more than one person to Charging station...
- Page 15 - Restart the application and initiate the update process again If the problem persists, try with one or several other smartphones to confirm proper Bluetooth communication with the charging station If the problem persists, contact your Legrand representative at the Legrand Group SERVICE GUIDE GREEN’UP CHARGING STATIONS WWW.LEGRAND.COM...
-
Page 16: Annex - Maintenance Log
MAINTENANCE DATE OF COMMISSIONING MAINTENANCE CONTROL COMMENTS Date / After 2 months Visa Date / After 1 year Visa Date / After 2 years Visa Date / After 3 years Visa Date / After 4 years Visa Date / After 5 years Visa Date / After 6 years... - Page 17 Notes SERVICE GUIDE GREEN’UP CHARGING STATIONS WWW.LEGRAND.COM...
- Page 18 FOLLOW US ALSO ON legrand.com youtube.com/user/legrand facebook.com/Legrand twitter.com/Legrand pinterest.com/legrandgroup instagram.com/legrandnews Head office and International Department 87045 Limoges Cedex - France Tel: + 33 (0) 5 55 06 87 87 Fax: + 33 (0) 5 55 06 74 55...
