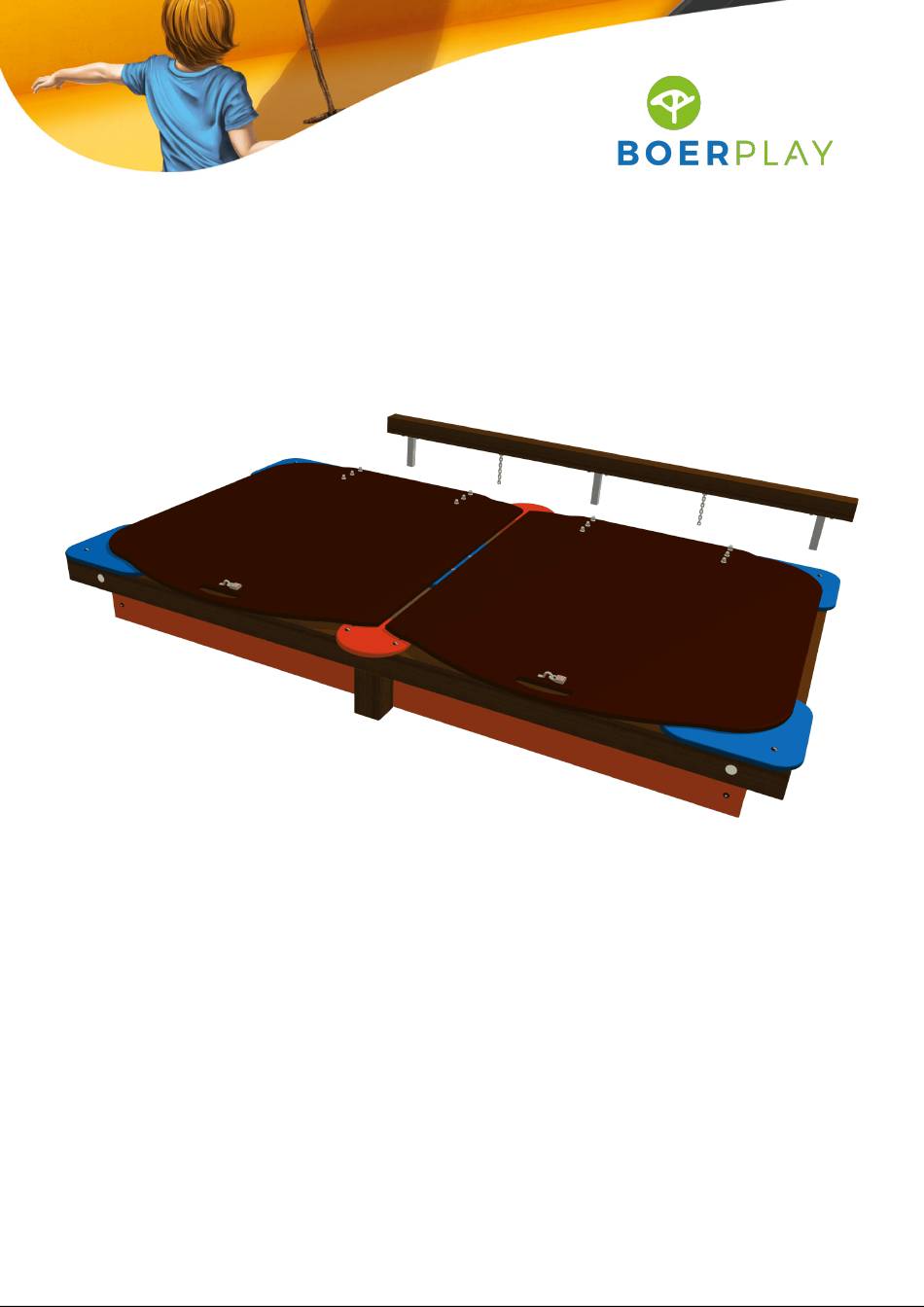

- Page 1 Sandpit with lid DRME025.009...
- Page 2 2,69 m 0,31 m 0,30 m 0,28 m 0,00 m B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g TOE DRM 025 009 Woestijn Title...
- Page 3 5,69 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g TOE DRM 025 009 Woestijn Title...
- Page 4 1,65 m 1,20 m 1,20 m 1,65 m 0,25 m (3x) 1,63 m 2,44 m 1,63 m Grondmarkering Ground level marker 0,32 m 0,45 m B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g TOE DRM 025 009 Woestijn Title...
- Page 5 G G G G e e e e l l l l e e e e v v v v e e e e r r r r d d d d e e e e m m m m o o o o d d d d u u u u l l l l e e e e s s s s : : : : S S S S u u u u p p p p p p p p l l l l i i i i e e e e d d d d m m m m o o o o d d d d u u u u l l l l e e e e s s s s : : : : See table Zie tabel...
- Page 6 LOGBOOK Type indication Article number DRME025.009 Product Name Sandpit with lid Maximum fall height 0,3 m Construction year 2024 Certificate 98200116209 Inspection body Liftinstituut B.V. Buikslotermeerplein 381, A'dam 1025 XE Amsterdam Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 11 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Schroef Assy 5 x 100 - RVS A2-70 SCHROEF 5 x 50 DOPMOER BORG RVS M10 Verzonken bout M10 x 30 - RVS A2-70 SLUITRING Facet ring M5 - RVS A2-70 OPVULDOPJE 6 MM ROOD Steunregel Tafel woestijn Woestijn Senior...
- Page 12 Datum www.boerplay.com S S S S P P P P E E E E E E E E L L L L T T T T O O O O E E E E S S S S T T T T E E E E L L L L L L L L E E E E N N N N...
- Page 13 Type Progr. Bew. Rev. Benaming Volgnr Opmerking SCHROEF 5 x 50 Houtdraadbout M10 X 130 - VZ 8.8 Sluitring M10 - VZ 8.8 Beschermdop M10-M12 Donut Rood Beschermdop M10-M12 Dop rood AFDICHTSTOP Woestijn Worteldoek ROZETRING M5 ZWART HOEKSTAANDER WOESTIJN MIDDENSTAANDER WOESTIJN Regel Worteldoek...
- Page 14 Type Progr. Volgnr Bew. Rev. Benaming Opmerking SCHROEF 5 x 50 ROZETRING M5 ZWART Trein Wiel Klein B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD SOL 030 407 Stapschijf Title...
- Page 15 Type Progr. Bew. Rev. Benaming Volgnr Opmerking Hangslot Zandbak Borgdopmoer M5 - RVS A2-70 DOPMOER BORG RVS M10 Bolkopbout ISO 7380 M10 x 40 - RVS A2-70 Verzonken bout M5 x 30 - RVS A2-70 Sluitring M5 - RVS A2-70 SLUITRING HOUTDRAADBOUT M10 X 80...
- Page 16 Type Progr. Bew. Rev. Benaming Volgnr Opmerking Hangslot Zandbak Borgdopmoer M5 - RVS A2-70 DOPMOER BORG RVS M10 Bolkopbout ISO 7380 M10 x 40 - RVS A2-70 Verzonken bout M5 x 30 - RVS A2-70 Sluitring M5 - RVS A2-70 SLUITRING HOUTDRAADBOUT M10 X 80...
