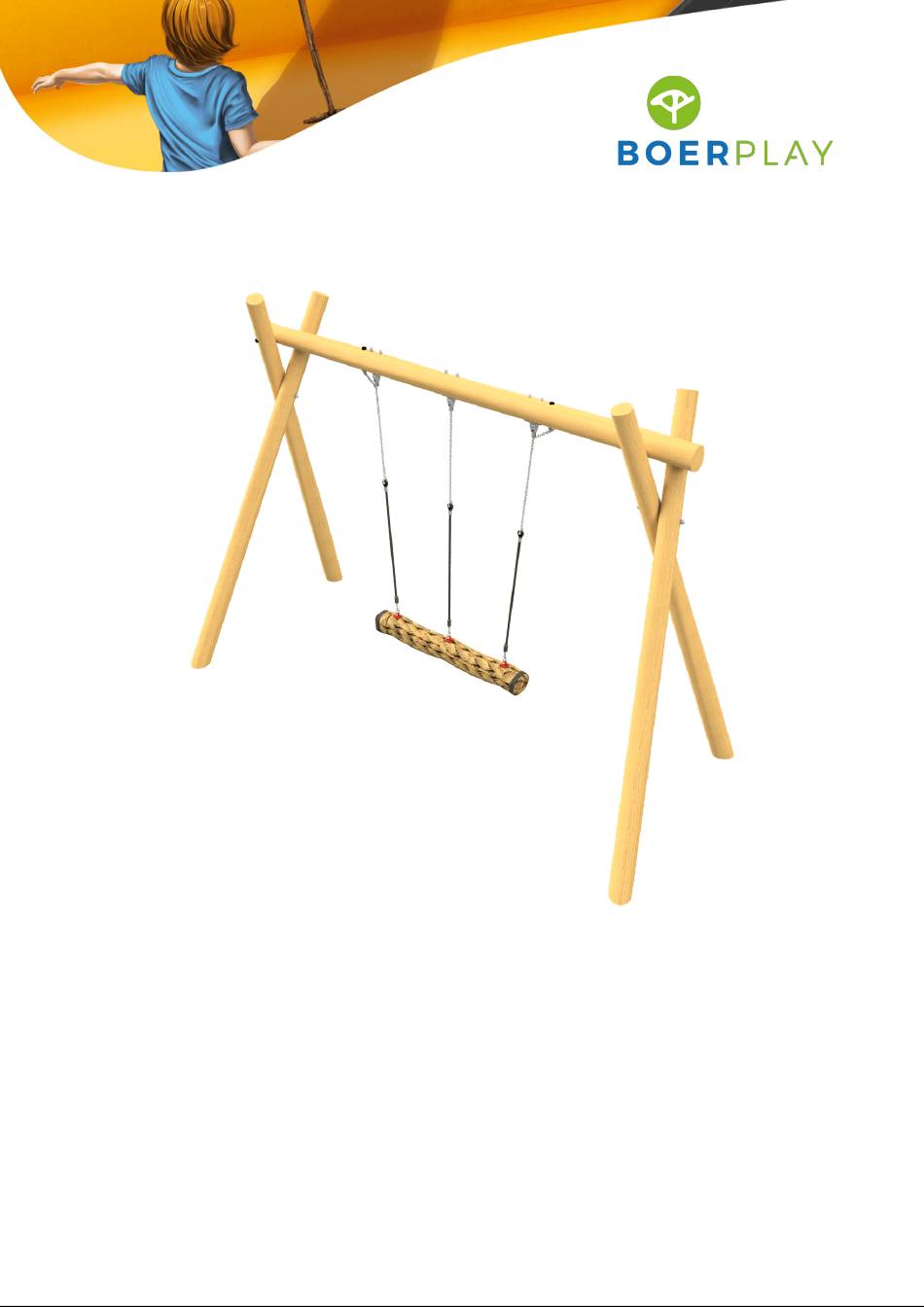

- Page 1 Duo rope swing PSTE000.919...
- Page 2 0,00 m 0,88 m 1,75 m Ligger mag 180 gedraaid worden Beam can be 180 rotate 2,75 m 2,39 m 0,00 m >0,40 m Benaming TOE PST 000 919 B partner schommel Title Tekening Opmerking 2 Personen Drawing Comment Datum Afmetingen Dimensions 10-12-2020 Date...
- Page 3 5,40 m 3,03 m 1,52 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE PST 000 919 B partner schommel Title Tekening Opmerking 2 Personen Drawing Comment Datum Obstakelvrije zone Obstacle free zone 10-12-2020 Date...
- Page 4 0,47 m 0,60 m 4,33 m 0,44 m 0,54 m 0,67 m 4,19 m Grondmarkering Ground level marker 0,99 m Benaming TOE PST 000 919 B partner schommel Title Tekening Opmerking 2 Personen Drawing Comment Datum Bodemplan Groundplan 10-12-2020 Date...
- Page 5 Supplied parts: Geleverde delen: Sie Table Zie tabel Assembly sequence: Montagevolgorde: 1 - Dig the holes according to the ground plan 1 - Graaf de gaten volgens het bodemplan 2 - Place A(2x) 2 - Plaats A(2x) 3 - Place B, attach it to (2x) A 3 - Plaats B, verbind deze met (2x) A 4 - Place C, attach it to B (if necessary, shorten the chain) 4 - Plaats C, Verbind deze met B (indien nodig kort de ketting in)
- Page 6 LOGBOOK Type indication Adventure Play Article number PSTE000.919 Product Name Duo rope swing Maximum fall height 1,5 m Construction year 2024 Certificate 064115 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 11 C ( 1 : 5 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Ring+Dopmoer + Slotbout 160 mm M12, L= 240, RVS A2-70 Draadeind+borgm.+ringen+dop BORGMOER Sluitring M12 - RVS A2-70 5 MM RVS D-sluiting Schommelscharnier RVS A2-70 RVS ketting 5mm 0,18 m lang Dop zwart Beschermdop M10-M12...
