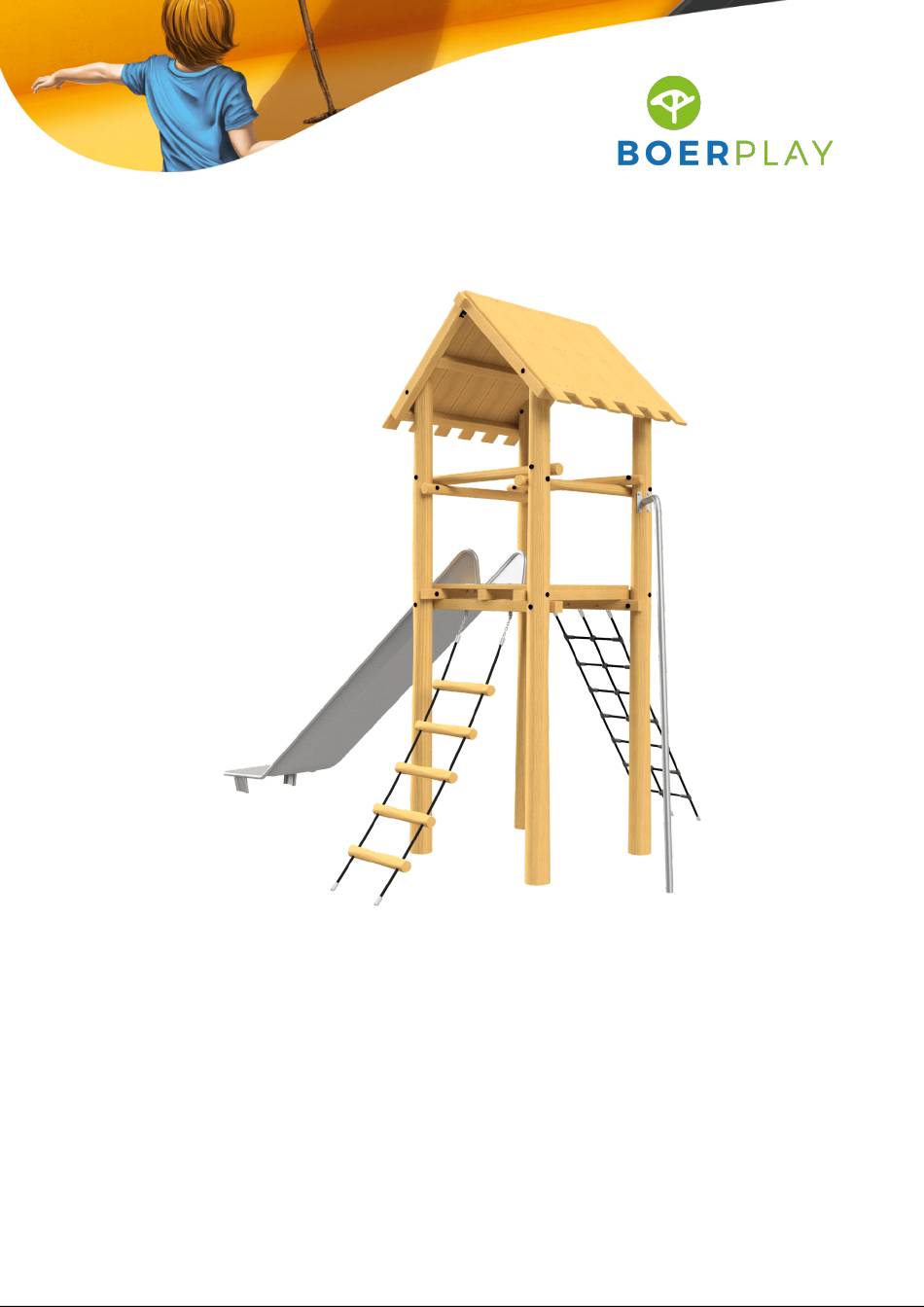

- Page 1 Tower with slide RBPE000.029...
- Page 2 0,00 m 1,15 m 2,20 m 2,88 m 3,80 m 2,65 m 2,57 m 2,52 m 1,95 m 0,00 m Benaming TOE RBP 000 029 Enkel toren Title Tekening Opmerking Drawing Comment Datum Hoofdafmetingen Main dimensions 7-12-2020 Date...
- Page 3 6,11 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE RBP 000 029 Enkel toren Title Tekening Opmerking Drawing Comment Datum Obstakelvrije zone Obstacle free zone 7-12-2020 Date...
- Page 4 4,49 m 1,04 m 2,26 m 1,00 m 0,53 m 0,76 m 0,80 m 0,25 m 2,56 m 0,54 m 0,80 m Grondmarkering Ground level marker Benaming TOE RBP 000 029 Enkel toren Title Tekening Opmerking Drawing Comment Datum Bodemplan Groundplan 7-12-2020 Date...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
- Page 6 Doorboren Drill through Doorboren Drill through Doorboren Drill through Doorboren Drill through Benaming TOE RBP 000 029 Enkel toren Title Tekening Opmerking Drawing Comment Datum Afmetingen Dimensions 7-12-2020 Date...
- Page 7 > 0,23 m Alle opening > 0,23 m < 0,35 m Benaming TOE RBP 000 029 Enkel toren Title Tekening Opmerking Drawing Comment Datum Afmetingen Dimensions 7-12-2020 Date...
- Page 8 LOGBOOK Type indication Article number RBPE000.029 Product Name Tower with slide Construction year 2024 Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk Phone: +31 (0)183 40 23 66 Fax: +31 (0)183 40 35 64 Installer name _______________________________________________________ _______________________________________________________...
- Page 9 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 10: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 11 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
