- Page 1 Only use appliance after first reading these instructions! Operating instructions Condensing dryer starLine 7730 starLine 6241...
- Page 2 Symbols Please read the instructions. Warnings are marked with a warn- ing triangle. The text gives information how a dangerous situation can be avoided. Signal words indicate the severity of the danger, if not avoided. Warning means that possible personal injuries, and potentially life-threat- ening injuries may occur.
- Page 3 Please read these instructions carefully to enable you to use all the possibilities and advantages of your new dryer. Please note in particular the safety informations. We hope you will be very happy with your new Schulthess dryer. Your Schulthess Maschinen AG...
-
Page 4: Table Of Contents
Contents Safety and safety measures ..........6 Disposal . - Page 5 Cleaning and Maintenance ..........32 Cleaning the machine .
-
Page 6: Safety And Safety Measures
Safety and safety measures Use in accordance with the intended purpose The enclosed documents contain The dryer is suitable exclusively for important information on the the drying of all textiles intended installation, use and safety of the for this treatment according to their dryer. - Page 7 Safety while handling and Warning operating Risk of injury! Climbing onto the dryer may cause Warning it to tip and cause injuries. Danger of electric shock! ► Never climb onto the appliance. ► Do not connect an appliance ► Do not sit, lean or support your- which displays visible damage.
- Page 8 Safety for children Warning Risk of fire! Warning Items containing heat sensitive Risk of injury! substances can ignite during the Children are in danger of injury or drying process. life-threatening situations, when ► Never dry laundry in your dryer playing with the machine. that has been cleaned with ►...
- Page 9 Safety during installation The maximum load is 7 kg of dry textiles. ► Warning Dry clean laundry in the dryer Risk of injury! only. ► If the machine is to be placed on a Before starting a programme, plinth, it must be mounted accord- make sure that there is no ing to the installation instructions, foreign object in the drum.
-
Page 10: Disposal
Disposal Packaging from your new machine Disposal of your old machine All packaging materials used are environ- Please do not keep your old machine and mentally friendly and reusable. under no circumstances dispose of it Return the packaging to the retailer or in your normal waste. -
Page 11: Environmentally Compatible Drying
Preparing the laundry Environmentally ► Do up all zips, hooks and eyes. compatible drying ► Button up duvet covers and pillow- cases. Tie together loose belts, apron Notice strings etc. Wringing wet laundry: waste of energy! Drying the laundry ► Remove as much water as possible ►... -
Page 12: Machine Description

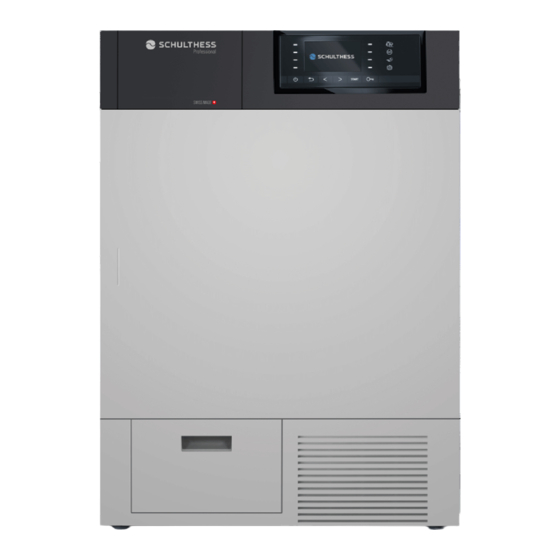

Machine description Loading door Control and display area Maintenance hatch Cooling grid... - Page 13 Cotton Extra dry Cotton Cabinet dry Easy Care Cabinet dry Display and buttons Programmes On / Off Additional programmes Back in the menu Mixed laundry Scroll backwards Options Scroll forwards Gentle plus Start programme Antibac Open the door Language (temporary) / Settings Page number programme menu...
-
Page 14: Drying
Drying Preparing the appliance Selecting programme ► Check whether the fluff filter is in place (see Drying / Clean fluff Cotton Extra dry filter). ► Check whether the air cooler is in place Cotton Cabinet dry (see Drying / Clean air cooler). -
Page 15: Starting The Programme
Adding laundry Skipping to the next ► Make sure that there is no foreign body programme step in the drum and the detergent drawer (coins, nails, paper clips, etc.). 1:08 h max. 7.0 kg ► Distribute the laundry evenly in the Drying drum. -
Page 16: Adding More Laundry
Cancelling the programme Programme stopped Cotton Add laundry and close door. Cabinet dry ► Follow the directions on the display. Cancel Programme end ► Press the light bar next to Cancel until is displayed. The programme end is shown. 0:01 h max. -
Page 17: Cleaning The Fluff Filter
Cleaning the fluff filter Notice It may happen that a supposedly When fabrics are used, the fibres proper cleaned filter becomes imper- are rubbed (laundry fluff), which are meable, due to a fine, invisible coat released when the fabrics are dried, remaining in the filter meshes. -
Page 18: Cleaning The Air Cooler
Cleaning the air cooler Clean the air cooler regularly after around 10 drying cycles. ► Rinse the slots of the air cooler from the front side with running water. ► Remove the plinth cover from the machine. ► Let the water drip off and put the air cooler back in place. - Page 19 Switching off the machine ► Press button On / Off until the display turns off. ► Unplug the machine, when not used for longer periods of time.
-
Page 20: Programme Survey
Programme survey Always check the care symbols on the fabrics The following information regarding drying time and energy consumption is given without liabili- ty. Different spin speeds during washing, different loads and different fabric types may result in deviations. h:min = Duration / rpm = Spin speeds / kWh = Power consumption (Approximate values) Cotton and line h:min 7,0 kg... -
Page 21: Easy Care Laundry
Easy care laundry Non-iron synthetic and mixed fibres and cotton with non-iron trim, e.g. viscose, cupro, modal, polyester h:min 3,5 kg Easy care Iron damp Anoraks, covers ► For laundry to be ironed 0:37 3,5 kg Easy care Slightly dry Shirts, blouses, sportswear, bed and table linen, sweat suits ►... -
Page 22: Mixed Laundry
Mixed laundry h:min 3,5 kg Mixed laundry Cabinet dry For mixed laundry made of cotton and easy care textiles 1:30 (e.g. sportswear and terry towelling) ► For laundry which will not be ironed or only lightly ironed Additional programmes h:min 2,6 kg Shirts, blouses Iron damp Shirts and blouses (max. - Page 23 h:min 7,0 kg Terry towels Extra dry Terry towels, bath towels, bathrobes etc. made of cotton 1:33 1400 2,6 kg Impregnating Extra dry Newly impregnated sports and leisure jackets, weather gear, 1:38 ski wear ► Machine drying sets the impregnant ►...
-
Page 24: Special Programmes
Special programmes Mixed laundry Additional programmes This programme is optimised for drying Use these programmes for best results mixed laundry made of cotton and when drying a variety of textiles, such synthetic. as e.g. shirts, blouses, jeans, wool etc. Programme options Antibac ►... -
Page 25: Drying
► First select the desired programme. Drying + ► After this select the option Time preset. With this option the dryness level can be increased temporarily – for the 1:52 h Programme end 04.09. 13:15h max. 7 kg duration of the selected programme. −... -
Page 26: Express
Express For drying reduced laundry loads or single items made of cotton, synthetic or mixed fabrics. -
Page 27: Settings
Settings Your washing machine has default settings from the factory. The settings Language can be adapted to the users individual English needs either when first used or later using the following functions. Français The settings can only be changed if no Deutsch wash programme is running. -
Page 28: Menu Settings
Data Menu Settings ► Default settings * = Default settings By pressing the – on the light bar, you can change the month and day (keep finger pressed to scroll rapidly) ► Confirm entry by pressing the light bar Cotton Extra dry next to OK. -
Page 29: More Settings
Brightness display More settings ► 50 * The following settings are not available The background light intensity can for all appliances. be continuously adjusted from 20 to 100 % (hold bar for fast forward). Language Confirm entry with OK. ► English * Signal tone volume ►... - Page 30 Child lock Laundry spun ► ► Off * Normal * ► ► Reduced The child lock is to prevent accidental The programme duration is displayed starting, changing or deletion of a more precise, when the dryer is aligned programme by small children. with the spin speed of the washing machine (The default value corre- Input with child lock activated...
- Page 31 Automatic door opening ► Off * ► If this function is switched on, the door will open automatically at the end of the programme. Default settings The settings can be reset to default (state as delivered). Default settings Reset to default setting? ►...
-
Page 32: Cleaning And Maintenance
Cleaning and Maintenance Caution Cleaning the air cooler Danger of electric shock! Drying / Cleaning the air ► Switch off the power supply to the cooler machine before cleaning. Cleaning the filter support ► Under no circumstances spray the machine with water. ►... -
Page 33: Cleaning The Moisture Sensor
Cleaning the moisture sensor After longer operation, small deposits (lime, fabric refiner) can form on the front inner side of the drum on both sides of the longish moisture sensors. With moisture controlled programmes, this can result in the desired level of dryness not being reached. -
Page 34: Problems
Problems Warning Improper repairs can result in severe accidents, damages and operation malfunctions! Do not make any changes, manipulations or attempt repairs using tools such as screw- drivers, etc. E RRO R MESSAG E S ON T HE DI SP L AY ►... - Page 35 Programme stopped Button On / Off was pressed during a running programme. M AC H INE O P E RAT I ON ► Machine does not Check whether the mains power is switched on (wall / plug). start when pressing ►...
- Page 36 The drying takes The lint filter is clogged with lint or limescale. too long ► Clean the fluff filter (see Drying / Cleaning the fluff filter). The air cooler is dirty. ► Clean the air cooler (see Drying / Cleaning the air cooler).
- Page 37 E R RO R MESS AGE S F –– ► «Error F ––» Acknowledge the error message with OK. is displayed Machine restarts. ► Close the door by pushing it. ► Re-select a programme and press button ► «Error F ––» Acknowledge the error message with OK.
-
Page 38: Technical Specifications
Technical specifications A-weighted continuous sound level The measured continuous sound level is below 70 dB(A). Customer service Check whether you can correct the fault Give customer services the error message yourself before you call customer service F –– and the product and appliance number (see chapter Problems). - Page 40 Headquarters and Production Schulthess Maschinen AG Alte Steinhauserstrasse 1, 6330 Cham Tel. + 41 (0) 55 253 51 11 www.schulthess.ch Austria Schulthess Maschinen GmbH Hetzendorfer Strasse 191 1130 Wien Tel. + 43 (0) 1 803 98 00 www.schulthess.at Brief instruction Follow the safety instructions in this manual! ►...
