General International 30-125CE M1 Operating Instructions Manual

(GENERA
lin TERNATIGNA\
===
=

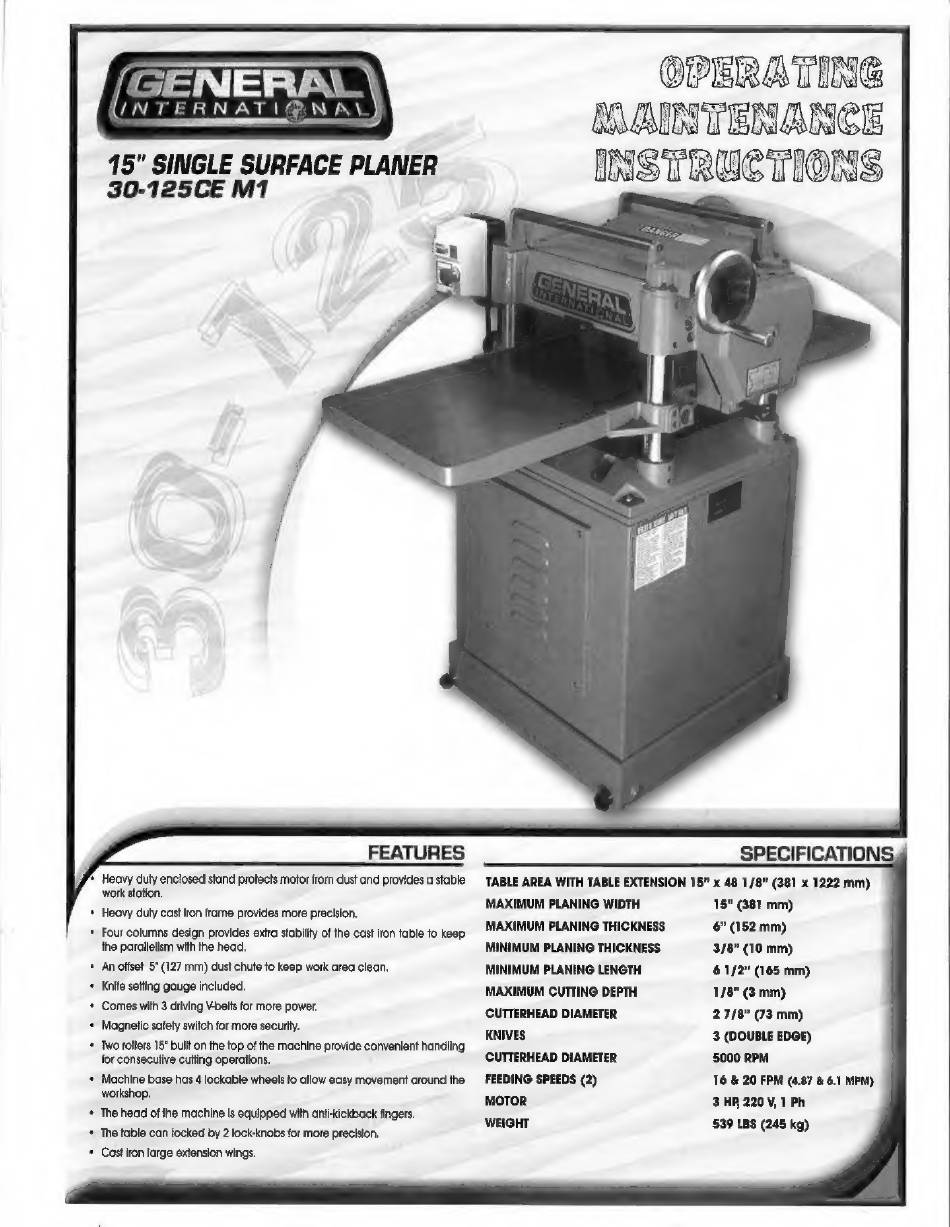

15" SINGLE SURFACE PLANER
30-125CE M1
Ж" Heavy duty enclosed stand protects motor from dust and provides a stable
work station.
+ Heavy duty cast Iron frame provides more precision,
Four columns design provides extra stability of the cast iron table to keep
the parallelism with the head.
An offset 5" (127 mm) dust chute to keep work area clean.
Knife setting gauge included.
Comes with 3 driving V-belts for more power.
" Magnetic safety switch for more securlty.
+ Two rollers 15" bulit on the top of the machine provide convenient handling
for consecutive cutting operations.
* Machine base has 4 lockable wheels to allow easy movement around the
workshop.
* The head of the machine is equipped with anti-kickback fingers.
* The table can locked by 2 lock-knobs for more precision,
* Cast iron large extension wings.
OPERATING
MAINTENANGE
[INSTRUCTIONS
TABLE AREA WITH TABLE EXTENSION 15" x 48 1/8" (381 x 1222 mm)
MAXIMUM PLANING WIDTH 15" (381 mm)
MAXIMUM PLANING THICKNESS 6" (152 mm)
MINIMUM PLANING THICKNESS 3/8" (10 mm)
MINIMUM PLANING LENGTH 61/2" (165 mm)
MAXIMUM CUTTING DEPTH 1/8" (3 mm)
CUTTERHEAD DIAMETER 27/8" (73 mm)
KNIVES 3 (DOUBLE EDGE)
CUTTERHEAD DIAMETER 5000 RPM
FEEDING SPEEDS (2) 16 & 20 FPM (4.87 & 6.1 MPM)
MOTOR 3 HR 220 V, I Ph
WEIGHT 539 LBS (245 kg)
