Summary of Contents for GGMgastro AMVH350

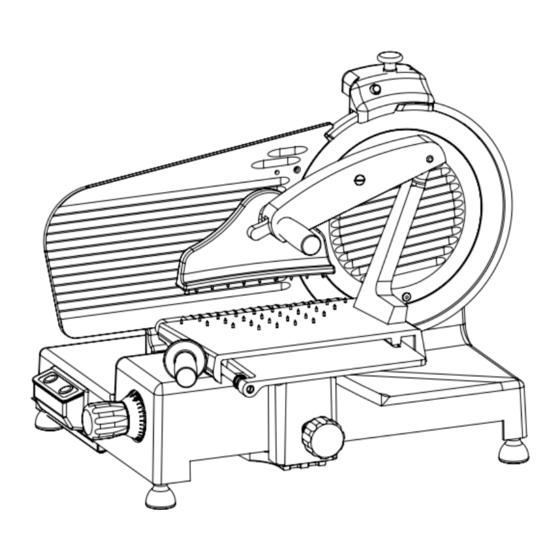

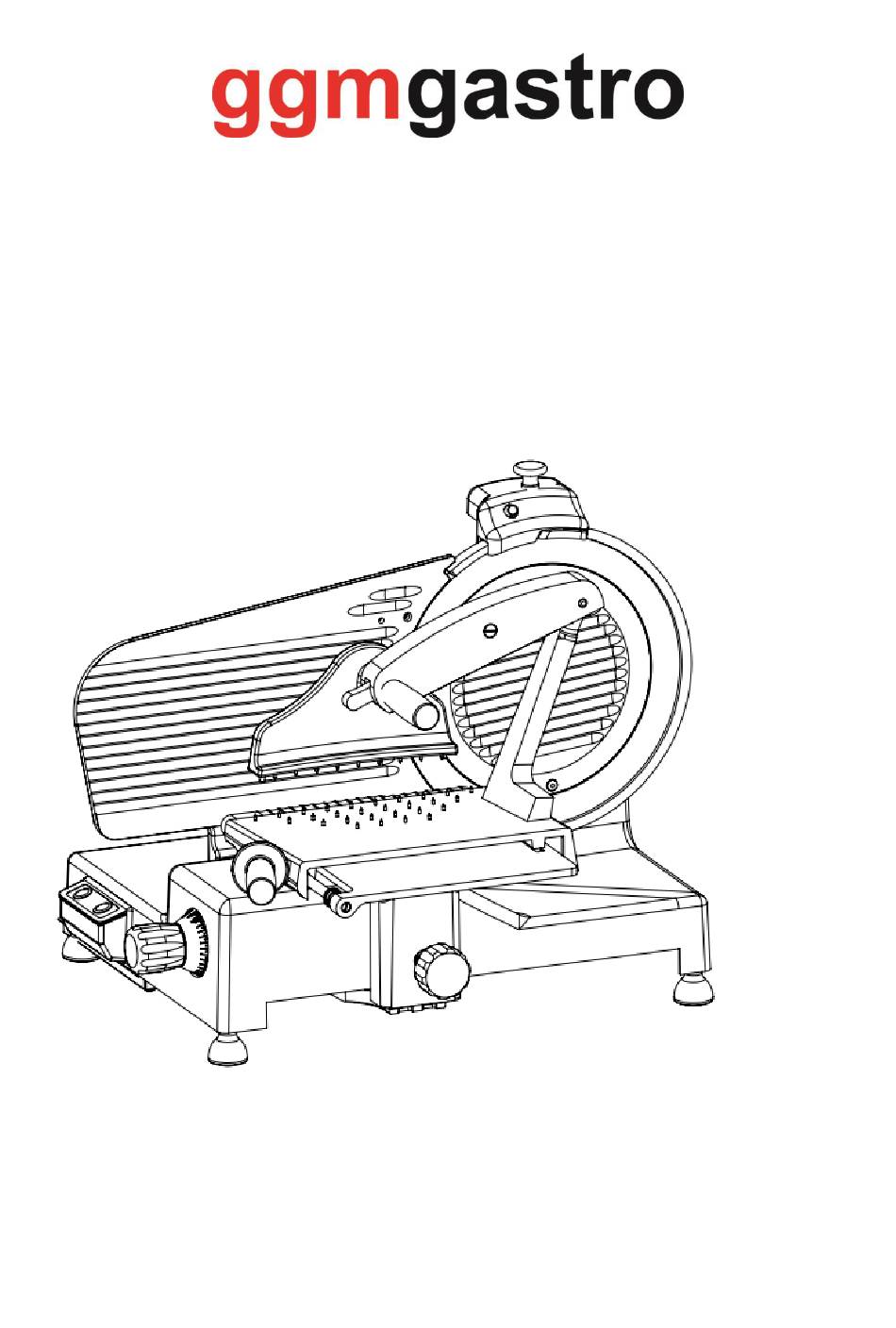

- Page 1 AMVH350 Semi-automatic Food Slicer Operation Manual...
- Page 2 PREFACE Thank you for choosing our semi-automatic food slicer. The food slicer produced by our company is more convenient and safer to use based on the advantages of similar products at home and abroad. The slicer is a special machine for food slicing. it can cut ham sausages and frozen meat without bones (especially beef and mutton).
- Page 3 NOTICE ● The power supply used must meet the power requirements indicated on the signage. Improper use will cause fire or serious failure of the machine. ● The machine must be reliably grounded , otherwise it will lead to the risk of electric shock. ●...
- Page 4 When the machine is working or blade being changed, the fingers should not touch the blade edge to avoid pricking the finger. 2 MAIN TECHNICAL PARAMETERS Rated voltage 100-120V □ / 220-240V□,3N~380V,50Hz□/ 60Hz□,a variety of voltages and frequencies are for option MODEL AMVH350 POWER（W) Rotation speed (r/min) 1400 Φ350 Blade Dia.（mm)
- Page 5 3.3 SLICER PARTS AND THEIR POSITION NOTE:to ensure successful use of this slicer, please read this section carefully and be familiar with the parts and locations of the slicer. 3.4 LUBRICATING Square orbit Round obit 3.4.1 Flip the machine, add lubricating oil to circular guide rail and square guide rail, once every 7 working days.
- Page 6 3.6 Idle running 3.6.1 Before idle running, check if there is any damage or loosen part on protection plate,meat carrier,blade and add oil to the lubricating guide rail and the pressure block slide rod. 3.6.2 Press the blade and start/stop button by inch,check if the blade and meat carrier is running,if there is any abnormal condition 3.6.3 If there is no abnormal condition, the operation shall be carried out after 3 minutes of continuous idle running.
- Page 7 screw on the back of the locking board, move the locking board towards the blade and keep their distance at 2mm, then tight the screw. Note: replace the blade when its diameter is reduced by 12mm 3.8 ADJUSTMENT OF THICKNESS OF FOOD SLICES 3.8.1The slicing thickness is the distance between the blade and locking board.
- Page 8 4.WIRE DIAGRAM QF Electromagnetic Switch FR Overload protection SQ Micro switch M motor C Capacitor...
