Summary of Contents for GGMgastro HDVJ446

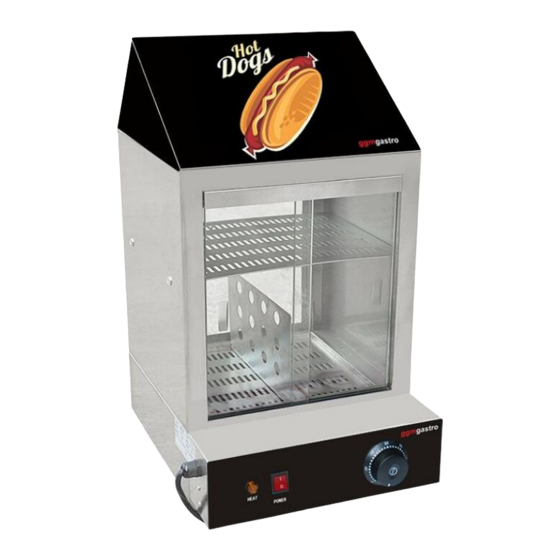

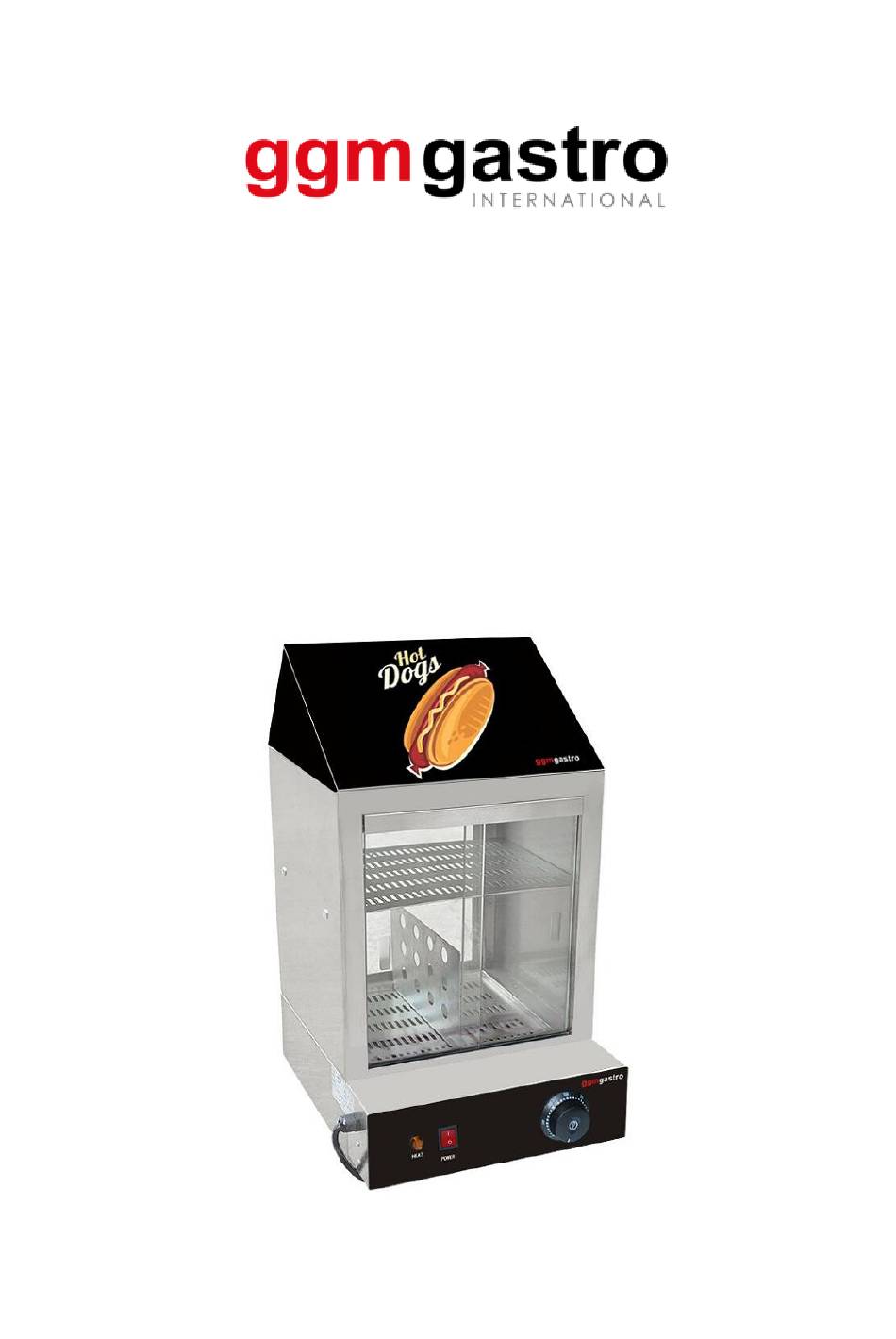

- Page 1 Hot Dog Steamer User manual HDVJ446...
- Page 2 Thanks for your purchasing and using Hot Dog Steame. For making full use of function of this product and reducing unnecessary damage and injure. Please read this manual carefully before using this machine and keep it well for future reference. Warning ! Any refitting and wrong installation, adjustment and maintenance can lead to property loss and causality.
- Page 3 Temperature Product outer controller range Dimension: weight number 220V ～ Hot Dog HDVJ446 1.2KW 435*400*640 10.7KG 30～85 ℃ Steamer 240V 2. Instructions： Do not damage, excessively bend, stretch, or twist the power cord, and do not place heavy objects or clamp the power cord.
- Page 4 temporary storage, rain-proof measures should be adopted. Do not invert or stack the product to prevent damage to the product. 4. Installation Precautions： 4.1 The power supply and voltage used by this equipment must be consistent with the power supply voltage of the product power plate.
- Page 5 4.11"Equipotential Mark"-" "Instructions for use: scope of application: used in various equipment, indicating those terminals that make each part of the equipment or system reach the same potential after being connected to each other, which is not necessarily ground potential, such as local interconnection lines 5.
- Page 6 exceed “MAX” mark, turn on the power switch, power light will be on, then set temperature by adjusting the temperature limiter, set the temperature you need, the orange light will be on, heating element start to work, temperature controller will be power when temperature of the water reach needed temperature, in the meantime orange light will be offer, heating element stop working.
- Page 7 9. General troubleshooting methods： Fault phenomenon The reason Elimination method 1. Turn on the power switch, power 1. Power switch broke 1. Change new Power switch light is not on 2.Wires wrong 2. Check and make sure all connection wires are connected correct 2、The orange indicator light does not go out, and the temperature 1、Thermostat malfunction...
- Page 8 10. Product exploded drawing Spare parts name Middle shelf Bottom shelf Glass door Guide groove Device seal plate Wire Wire clip Light Switch Knob Dial Thermostat Foot Water tap Element Back glass Glass fixed board Box frame Temperature limiter...
