AXIS M11 Series
AXIS M1134 Network Camera
AXIS M1135 Network camera

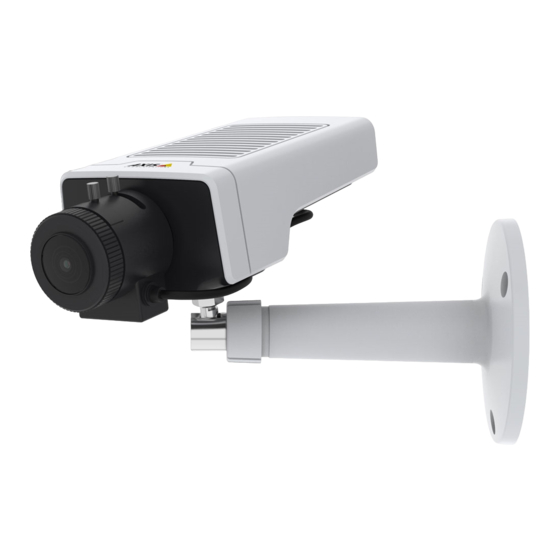

AXIS M1137 Network camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M1137 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis M1137

Summary of Contents for Axis M1137

  • Page 1 AXIS M11 Series AXIS M1134 Network Camera AXIS M1135 Network camera AXIS M1137 Network camera User Manual...

  • Page 2: Table Of Contents

    AXIS M11 Series Table of Contents About this manual ......... .

  • Page 3: About This Manual

    AXIS M11 Series About this manual About this manual This user manual describes several products. This means you may find instructions that aren’t applicable to your product.

  • Page 4: Get Started

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 5: Webpage Overview

    Secure passwords Important Axis devices send the initially set password in clear text over the network. To protect your device after the first login, set up a secure and encrypted HTTPS connection and then change the password. The device password is the primary protection for your data and services. Axis devices do not impose a password policy as they may be used in various types of installations.

  • Page 6: Configure Your Device

    AXIS M11 Series Configure your device Configure your device Adjust the image This section includes instructions about configuring your device. If you want to learn more about how certain features work, go to Learn more on page 40. Level the camera To adjust the view in relation to a reference area or an object, use the level grid in combination with a mechanical adjustment of the camera.
  • Page 7 AXIS M11 Series Configure your device • Set the exposure mode to automatic. Note A high max shutter value can result in motion blur. • To slow down the shutter speed, set max shutter to the highest possible value. Note When you reduce the max gain, the image can become darker.
  • Page 8 3. Use the Tone mapping slider to adjust the amount of WDR. 4. If you still have problems, go to Exposure and adjust the Exposure zone to cover the area of interest. Find out more about WDR and how to use it at axis.com/web-articles/wdr. Verify the pixel resolution To verify that a defined part of the image contains enough pixels to, for example, recognize license plates, you can use the pixel counter.
  • Page 9 AXIS M11 Series Configure your device 1. Click and select Legacy device interface. 2. Go to Settings > System > Orientation. 3. Click 4. In the camera’s live view, adjust the size and position of the rectangle around the area of interest, for example where you expect license plates to appear.

  • Page 10: View And Record Video

    AXIS M11 Series Configure your device 3. Enter #D in the text field. 4. Choose text size and appearance. 5. To position the text overlay, click and select an option. Create a rule: 1. Go to System > Events and add a rule.

  • Page 11: Set Up Rules For Events

    AXIS M11 Series Configure your device Set up network storage To store recordings on the network, you need to set up your network storage. 1. Go to System > Storage. 2. Click +Add network storage under Network storage. 3. Type the IP address of the host server.
  • Page 12 AXIS M11 Series Configure your device Note If you make changes to an active rule, the rule must be turned on again for the changes to take effect. Record video when the camera detects an object This example explains how to set up the camera to start recording to the SD card five seconds before it detects an object and to stop one minute after.
  • Page 13 AXIS M11 Series Configure your device Send an email automatically if someone spray paints the lens Activate the tampering detection: 1. Click and select Legacy device interface. 2. Go to System > Detectors > Camera tampering. 3. Set a duration for Trigger after. The value indicates the time that must pass before an email is sent.

  • Page 14: The Device Interface

    AXIS M11 Series The device interface The device interface Note Support for the features and settings described in this section varies between devices. Show or hide the main menu. Access the product help. Change the language. Set light theme or dark theme.
  • Page 15 AXIS M11 Series The device interface Click to show I/O output ports. Use the switch to open or close the circuit of a port, for example to test external devices. Click to manually turn on or turn off the IR illumination.
  • Page 16 AXIS M11 Series The device interface Rotate: Select the preferred image orientation. Image Appearance Saturation: Use the slider to adjust the color intensity. You can for example get a grayscale image. Contrast: Use the slider to adjust the difference between light and dark.
  • Page 17 AXIS M11 Series The device interface WDR: Turn on to make both bright and dark areas of the image visible. Local contrast: Use the slider to adjust the contrast of the image. A higher value makes the contrast higher between dark and light areas.
  • Page 18 AXIS M11 Series The device interface If your device doesn’t have built-in illumination, these controls are only available when you have connected a supporting Axis accessory. Allow illumination: Turn on to let the camera use the built-in light in night mode.
  • Page 19 AXIS M11 Series The device interface Exposure zone: The exposure zone tells the camera to prioritize image quality in the most important part of the scene. Select the part of the scene of greatest interest to calculate the automatic exposure levels, for example the area in front of an entrance door.
  • Page 20 AXIS M11 Series The device interface Note We recommend you not to turn on Defog in scenes with low contrast, large light level variations, or when the autofocus is slightly off. This can affect the image quality, for example, by increasing the contrast. Furthermore, too much light can negatively impact the image quality when defog is active.
  • Page 21 Zipstream: A bitrate reduction technology, optimized for video surveillance, that reduces the average bitrate in an H.264 or H.265 stream in real time. Axis Zipstream applies a high bitrate in scenes where there are multiple regions of interest, for example in scenes with moving objects.
  • Page 22 AXIS M11 Series The device interface Maximum bitrate: Turn on to set a bitrate limit. Bitrate limit: Enter a bitrate limit that is higher than the target bitrate. • Maximum: Select to set a maximum instant bitrate of the stream based on your network bandwidth.

  • Page 23: Audio

    AXIS M11 Series The device interface View areas : Click to create a view area. Click the view area to access settings. Name: Enter a name for the view area. The maximum length is 64 characters. Aspect ratio: Select desired aspect ratio. The resolution adjusts automatically.

  • Page 24: Recordings

    • Activate license with a key: If the app requires a license, you need to activate it. Use this option if your device doesn’t have internet access. If you don’t have a license key, go to axis.com/applications. You need a license code and the Axis product serial number to generate a license key.

  • Page 25: System

    AXIS M11 Series The device interface System Date and time The time format depends on the web browser’s language settings. Note We recommend you to synchronize the device’s date and time with an NTP server. Synchronization: Select an option for synchronizing the device’s date and time.
  • Page 26 One-click cloud connection One-click cloud connection (O3C) together with an O3C service provides easy and secure internet access to live and recorded video from any location. For more information, see axis.com/end-to-end-solutions/hosted-services. Allow O3C: • One-click: The default setting. Press and hold the control button on the device to connect to an O3C service over the internet.
  • Page 27 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 28 When configured without a CA certificate, server certificate validation is disabled and the device tries to authenticate itself regardless of what network it is connected to. When using a certificate, in Axis' implementation, the device and the authentication server authenticate themselves with digital certificates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security).
  • Page 29 To install test firmware or other custom firmware from Axis on the device, you need a custom-signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 30 AXIS M11 Series The device interface A rule defines the conditions that must be met for the product to perform an action. The list shows all the currently configured rules in the product. Note You can create up to 256 action rules.
  • Page 31 AXIS M11 Series The device interface Use passive FTP: Under normal circumstances the product simply requests the target FTP server to open the data connection. The device actively initiates both the FTP control and data connections to the target server.
  • Page 32 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management systems (VMS).
  • Page 33 AXIS M11 Series The device interface Password: Enter a password for the username. Client ID: Enter a client ID. The client identifier is sent to the server when the client connects to it. Clean session: Controls the behavior at connection and disconnection time. When selected, the state information is discarded at connect and disconnect.
  • Page 34 DNS. Windows SMB/CIFS names are not supported. • Network share: Enter the name of the shared location on the host server. Several Axis devices can use the same network share, since each device gets its own folder.
  • Page 35 AXIS M11 Series The device interface Important Risk of data loss and corrupted recordings. Do not remove the SD card while the device is running. Unmount the SD card before you remove it. Unmount: Click to safely remove the SD card.
  • Page 36 Delete user: Delete the user. You can’t delete the root user. By creating an ONVIF user, you automatically enable ONVIF communication. Use the username and password for all ONVIF communication with the device. For more information see the Axis Developer Community at axis.com. ONVIF media profiles An ONVIF media profile consists of a set of configurations that you can use to change media stream settings.
  • Page 37 AXIS M11 Series The device interface Use digital input to connect external devices that can toggle between an open and closed circuit, for example PIR sensors, door or window contacts, and glass break detectors. Use digital output to connect external devices such as relays and LEDs. You can activate connected devices through the VAPIX®...

  • Page 38: Maintenance

    Severity: Select which messages to send when triggered. CA certificate set: See the current settings or add a certificate. Plain config Plain config is for advanced users with experience of Axis device configuration. Most parameters can be set and edited from this page. Maintenance Restart: Restart the device.
  • Page 39 AXIS M11 Series The device interface When you upgrade, you can choose between three options: • Standard upgrade: Upgrade to the new firmware version. • Factory default: Upgrade and return all settings to the factory default values. When you choose this option, you can’t revert to the previous firmware version after the upgrade.

  • Page 40: Learn More

    AXIS M11 Series Learn more Learn more Bitrate control With bitrate control, you can manage the bandwidth consumption of your video stream. Variable bitrate (VBR) With variable bitrate, the bandwidth consumption varies based on the level of activity in the scene. The more activity in the scene, the more bandwidth you need.

  • Page 41: View Area

    AXIS M11 Series Learn more kbit/s Target bitrate Actual average bitrate You can also turn on maximum bitrate and specify a target bitrate within the average bitrate option. kbit/s Target bitrate Actual average bitrate View area A view area is a cropped part of the full view. You can stream and store view areas instead of the full view to minimize bandwidth and storage needs.

  • Page 42: Overlays

    Stream tab. Applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications.
  • Page 43 AXIS M11 Series Learn more To watch this video, go to the web version of this document. www.axis.com/products/online-manual/59136#t10001688 How to download and install an application To watch this video, go to the web version of this document. www.axis.com/products/online-manual/59136#t10001688 How to activate an application licence code on a device...

  • Page 44: Specifications

    AXIS M11 Series Specifications Specifications Product overview Focus ring Focus ring lock Zoom puller I/O connector Iris connector Power connector ″ ¼ Screw mount Microphone microSD card slot 10 Network connector, PoE 11 LED 12 Control button 13 Audio in...

  • Page 45: Sd Card Slot

    This product supports microSD/microSDHC/microSDXC cards. For SD card recommendations, see axis.com. microSD, microSDHC, and microSDXC Logos are trademarks of SD-3C LLC. microSD, microSDHC, microSDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.
  • Page 46 AXIS M11 Series Specifications Digital Input 0 to max 30 V DC Connect to pin 1 to activate, or leave floating (unconnected) to deactivate. Digital Output 0 to max 30 V DC, open drain, Internally connected to pin 1 (DC ground) when active, 100 mA and floating (unconnected) when inactive.

  • Page 47: Reset To Factory Default Settings

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 48: Technical Issues, Clues, And Solutions

    3. Go to Maintenance > Firmware upgrade and click Upgrade. When the upgrade has finished, the product restarts automatically. You can use AXIS Device Manager to upgrade multiple devices at the same time. Find out more at axis.com/products/axis-device-manager. Technical issues, clues, and solutions If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support.

  • Page 49: Performance Considerations

    IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured).

  • Page 50: Need More Help

    Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. Need more help? Useful links •...
  • Page 51 User Manual Ver. M5.3 AXIS M11 Series Date: January 2022 © Axis Communications AB, 2019 - 2022 Part No. T10140814...
