Page 1: Installation Guide

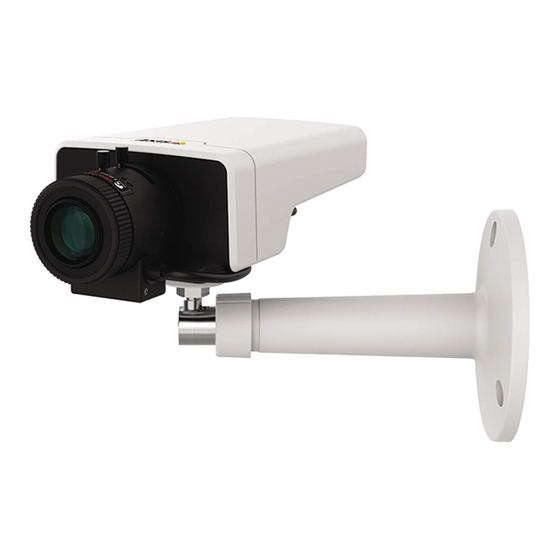

AXIS M11 Network Camera Series AXIS M1124 Network Camera AXIS M1125 Network Camera Installation Guide... -
Page 2: Electromagnetic Compatibility (Emc)
CE marking directives and harmonized standards: Every care has been taken in the preparation of this • Electromagnetic Compatibility (EMC) document. Please inform your local Axis office of Directive 2004/108/EC. See Electromagnetic any inaccuracies or omissions. Axis Communications Compatibility (EMC) on page 2 . -
Page 3: Contact Information
적으로 합니다. 적절히 접지된 STP (shielded Should you require any technical assistance, please twisted pair) 케이블을 사용하여 제품을 연 contact your Axis reseller. If your questions cannot 결 하십시오. be answered immediately, your reseller will forward your queries through the appropriate channels to Safety ensure a rapid response. -
Page 5: Hazard Levels
AXIS M11 Network Camera Series Safety Information Read through this Installation Guide carefully before installing the product. Keep the Installation Guide for future reference. Hazard Levels Indicates a hazardous situation which, if not DANGER avoided, will result in death or serious injury. -
Page 6: Safety Instructions
Safety Instructions NO TICE TICE TICE • The Axis product shall be used in compliance with local laws and regulations. • To use the Axis product outdoors, or in similar environments, it shall be installed in an approved outdoor housing. - Page 7 AXIS M11 Network Camera Series Battery The Axis product uses a 3.0 V BR/CR2032 lithium battery as the power supply for its internal real-time clock (RTC). Under normal conditions this battery will last for a minimum of five years. Low battery power affects the operation of the RTC, causing it to reset at every power-up.
-
Page 9: Installation Steps
Installation Guide This Installation Guide provides instructions for installing AXIS M1124/M1125 Network Camera on your network. For other aspects of using the product, see the User Manual available at www.axis.com Installation Steps Make sure the package contents, tools and other materials necessary for the installation are in order. -
Page 10: Hardware Overview
AXIS M11 Network Camera Series Hardware Overview Zoom puller Focus ring... - Page 11 AXIS M11 Network Camera Series Power connector Control button Network connector Power LED Status LED Network LED microSD card slot Iris connector I/O connector ² ¼ Screw mount LED Indicators Note • The Status LED can be configured to be unlit during normal operation.
- Page 12 AXIS M11 Network Camera Series Network LED Indication Green Steady for connection to a 100 Mbit/s network. Flashes for network activity. Amber Steady for connection to a 10 Mbit/s network. Flashes for network activity. Unlit No network connection. Note The Power LED can be configured to be unlit during normal operation.
- Page 13 2-pin terminal block for power input. Use a Safety Extra Low Voltage (SELV) compliant limited power source (LPS) with either a rated output power limited to ≤100 W or a rated output current limited to ≤5 A. SD Card Slot For SD card recommendations, see www.axis.com...
-
Page 14: Specifications
The control button is used for: • Resetting the product to factory default settings. See page 21. • Connecting to an AXIS Video Hosting System service or AXIS Internet Dynamic DNS Service. For more information about these services, see the User Manual. Specifications Operating Conditions The Axis product is intended for indoor use. - Page 15 AXIS M11 Network Camera Series Connectors I/O Connector 4–pin terminal block For an example diagram, see Connection Diagrams on page 17. Func- Notes Specifications tion 0 V DC (-) 1 0 V DC Can be used to power auxiliary 12 V DC output equipment.
- Page 16 AXIS M11 Network Camera Series Digital Connect to pin 1 to activate, or 0 to max 30 V DC Input leave floating (unconnected) to deactivate. Digital Connected to pin 1 0 to max 30 V DC, Output when activated, floating...
- Page 17 AXIS M11 Network Camera Series Connection Diagrams I/O Connector 0 V DC (-) DC output 12 V, max 15 mA I/O configured as input I/O configured as output...
-
Page 18: Install The Hardware
AXIS M11 Network Camera Series Install the Hardware Important AXIS M11 Series is designed for indoor and outdoor use. To use the camera outdoors, install in an approved outdoor housing. See www.axis.com for more information about outdoor housings. If using a microSD card for local storage, insert the card into the camera’s SD card slot, see Hardware Overview on page 10. -
Page 19: Access The Product
Network cable Access the Product AXIS IP Utility and AXIS Camera Management are recommended methods for finding Axis products on the network and assigning them IP addresses in Windows®. Both applications are free and can be downloaded from www.axis.com/techsup The product can be used with most operating systems and browsers. The recommended browsers are ®... -
Page 20: Adjust Focus And Zoom
AXIS M11 Network Camera Series ® ® • Safari with OS X ® • Chrome or Firefox with other operating systems. For more information about using the product, see the User Manual available at www.axis.com Adjust Focus and Zoom Loosen the lock screw for the focus ring. -
Page 21: Reset To Factory Default Settings
Note The installation and management software tools are available from the support pages on www.axis.com/techsup To reset the product to the factory default settings: Disconnect power from the product. Press and hold the control button and reconnect power. See Hardware Overview on page 10. -
Page 22: Further Information
Go to Setup > System Options > Maintenance. Further Information The User Manual is available at www.axis.com Visit www.axis.com/techsup to check if there is updated firmware available for your network product. To see the currently installed firmware version, go to Setup > About. - Page 24 Installation Guide Ver. M5.2 AXIS M11 Network Camera Series Date: May 2015 © Axis Communications AB, 2015 Part No. 1463644...
