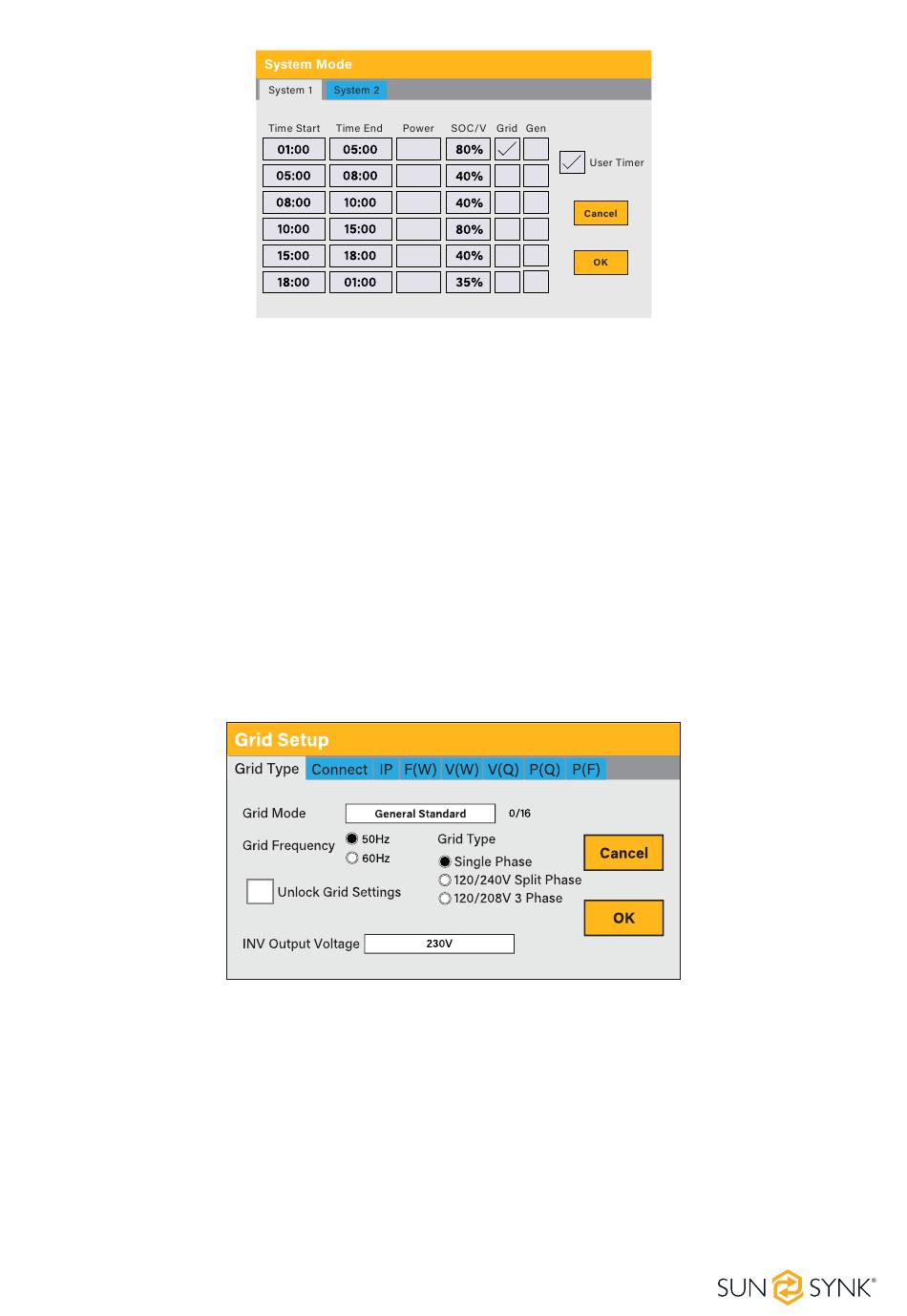

Example:
During 01:00-05:00, when the battery SOC is lower than 80%, it will use the grid to charge the battery until
the battery SOC reaches 80%.
During 05:00-08:00 and 08:00-10:00, when battery SOC is higher than 40%, the hybrid inverter will discharge
the battery until the SOC reaches 40%.
During 10:00-15:00, when the battery SOC is higher than 80%, the hybrid inverter will discharge the battery
until the SOC reaches 80%.
During 15:00-18:00, when the battery SOC is higher than 40%, the hybrid inverter will discharge the battery
until the SOC reaches 40%.
During 18:00-01:00, when the battery SOC is higher than 35%, the hybrid inverter will discharge the battery
until the SOC reaches 35%.

Grid Supply Page

In the Settings menu, click on the GRID icon.
What this page displays:
Grid Mode: General Standard - for example, EN50549_CZ_PPDS_L16A, NRS097, G98/G99. Please follow
ƒ
your local grid code and choose the corresponding grid standard from the drop-down menu. If you can-
not find your local grid standard from this menu, please manually input the grid settings as per instruc-
tions below.
G100 - Please ensure the inverter is set to G99/G100 for compliance to G100 regulations.
ƒ
Set the Grid frequency.
ƒ
Set the Grid type.
ƒ
Unlock Grid Settings: The inverters grid settings are automatically locked, so if you need to make
ƒ
changes to the grid settings you will need to select this, and it will as for password code.
54 SUNSYNK MAX | Installer Manual
