Instructions-Parts
Fluid Inlet
Sensor Kit

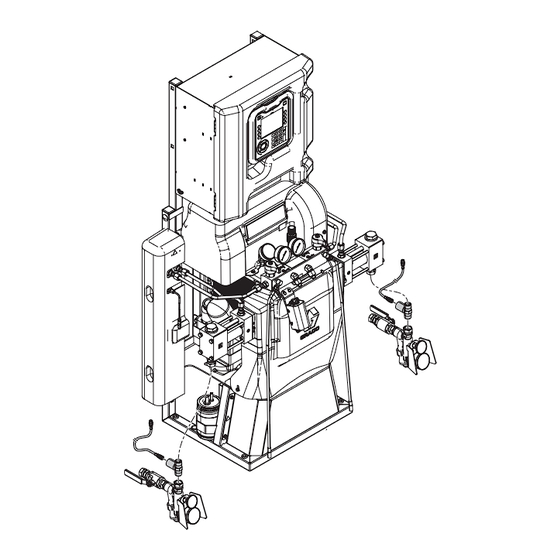

For measuring chemical inlet pressure and temperature on a Reactor
proportioner. For professional use only.
Kit No. 17F837
Important Safety Instructions
Read all warnings and instructions in this manual
and in the Reactor 2 hydraulic proportioner manual.
Save all instructions.
Related Manuals
Manual Description
334945 Reactor 2 Hydraulic Proportioner Operation
334946 Reactor 2 Hydraulic Proportioner Repair
3A3009A
®
2 hydraulic
EN
Advertisement
Table of Contents
Related Manuals for Graco 17F837
Summary of Contents for Graco 17F837

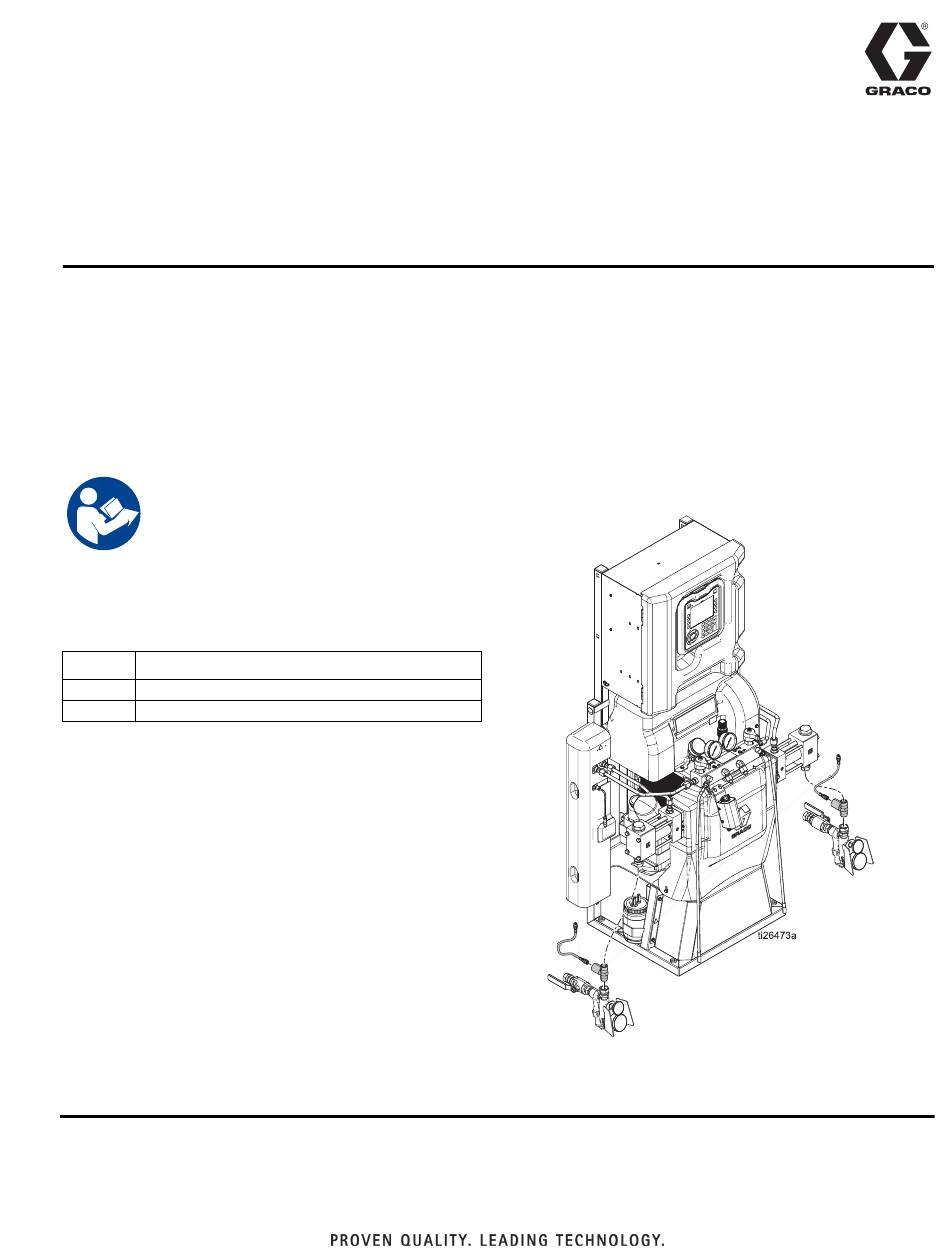

- Page 1 ® For measuring chemical inlet pressure and temperature on a Reactor 2 hydraulic proportioner. For professional use only. Kit No. 17F837 Important Safety Instructions Read all warnings and instructions in this manual and in the Reactor 2 hydraulic proportioner manual.
- Page 2 Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama- tion point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable.
- Page 3 Installation Installation 1. Shutdown system. See Reactor manual for instruc- b. For the B side: Route the sensor cable (2) back- tions. wards and route the cable up the frame into the electrical enclosure. 2. Use wrench to remove nipple between swivel fit- tings.
- Page 4 Installation 5. Connect the pump fluid inlet sensor cables (2) to the HCM. a. A Pump: Connector 8 b. B Pump: Connector 9 . 4: HCM Cable Connections Activate Fluid Inlet Sensors Enter the ADM Setup screens to activate the fluid inlet sensors.
- Page 5 Parts Parts 17F837 Ref. Part Description Qty. - - - ASSEMBLY, transducer; includes 1a and 1b 624545 FITTING, nipple, pipe 24U851 TRANSDUCER, includes foam 16W130 CABLE, M12 5p, f x m, 2.0 m 125871 TIE, cable, 7.5 in. 3A3009A...
- Page 6 With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
