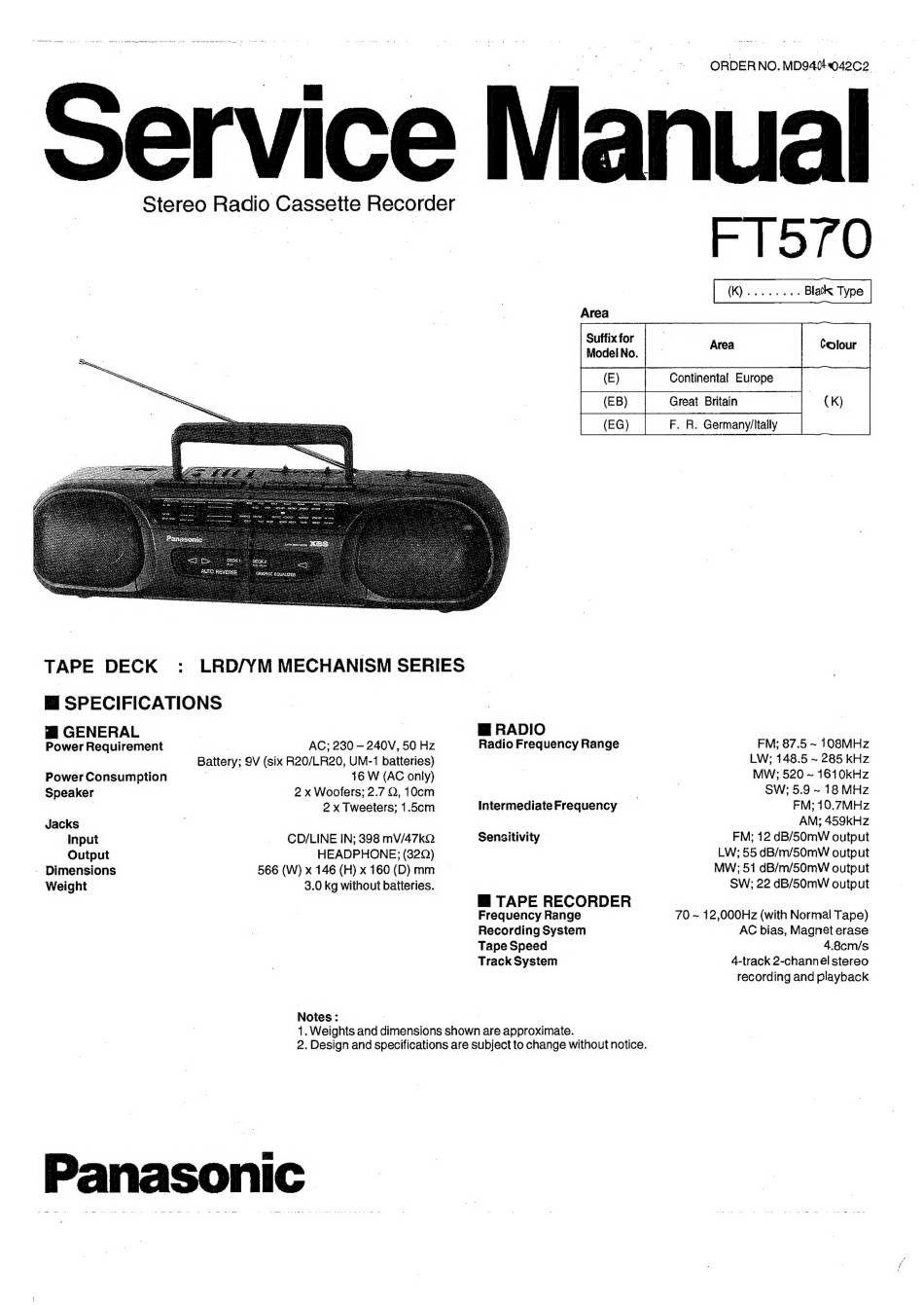

Service Manual
Stereo Radio Cassette Recorder
FI570O
Blak Type
Area
Suffix for
Pe
Continental Europe
Great Britain
(K)
F. R. Germany/Itally
TAPE
DECK
: LRD/YM MECHANISM SERIES
Mi SPECIFICATIONS
M@ GENERAL
Power Requirement
Mi RADIO
AC; 230 — 240V, 50 Hz
Radio Frequency Range
FM; 87.5 ~ 108MHz
Battery; QV (six R20/LR20, UM-1
batteries)
Power Consumption
16 W (AC only)
Speaker
2 x Woofers; 2.7 Q, 10cm
2 x Tweeters; 1.5cm
Jacks
Input
—
CD/LINE IN; 398 mV/47kQ
Output
HEADPHONE; (32Q)
- Dimensions
566 (W) x 146 (H) x 160 (D) mm
Weight
3.0 kg without batteries.
Notes :
LW; 148.5 ~ 285 kHz
MW; 520 ~ 1610kHz
SW; 5.9 ~ 18 MHz
FM; 10.7MHz
AM; 459kKHz
FM; 12 dB/50mW output
LW; 55 dB/m/50mW output
MW; 51 dB/m/50mW output
SW; 22 dB/50mW output
Intermediate Frequency
Sensitivity
M@ TAPE RECORDER
Frequency Range
70 ~ 12,000Hz (with Normal Tape)
Recording System
AC bias, Magnet erase
Tape Speed
4 8cm/s
Track System
4-track 2-channeél stereo
recording and playback
1. Weights and dimensions shown are approximate.
2. Design and specifications are subject to change without notice.
