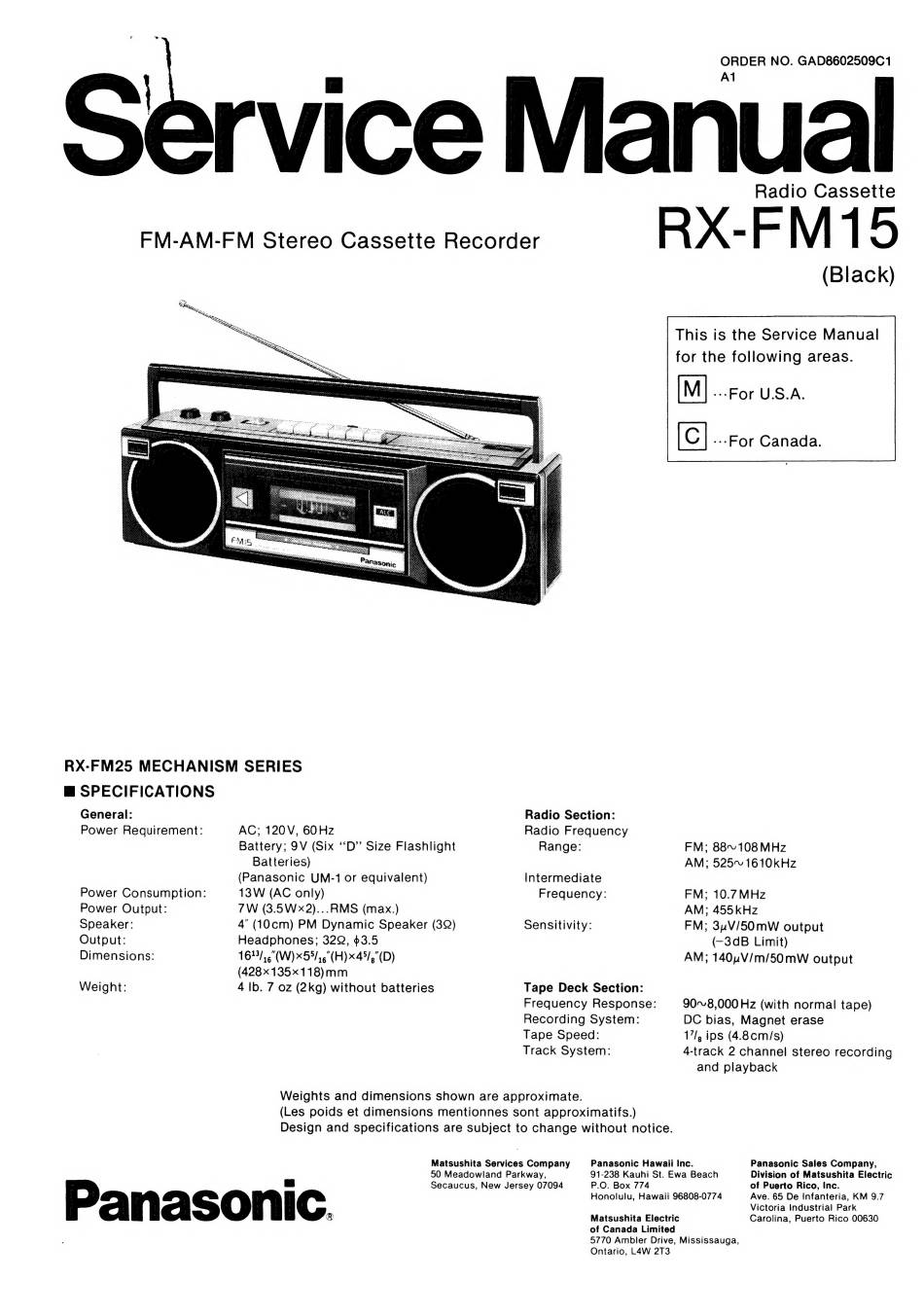

Panasonic RX-FM15 Service Manual

ervice Via
FM-AM-FM Stereo Cassette Recorder

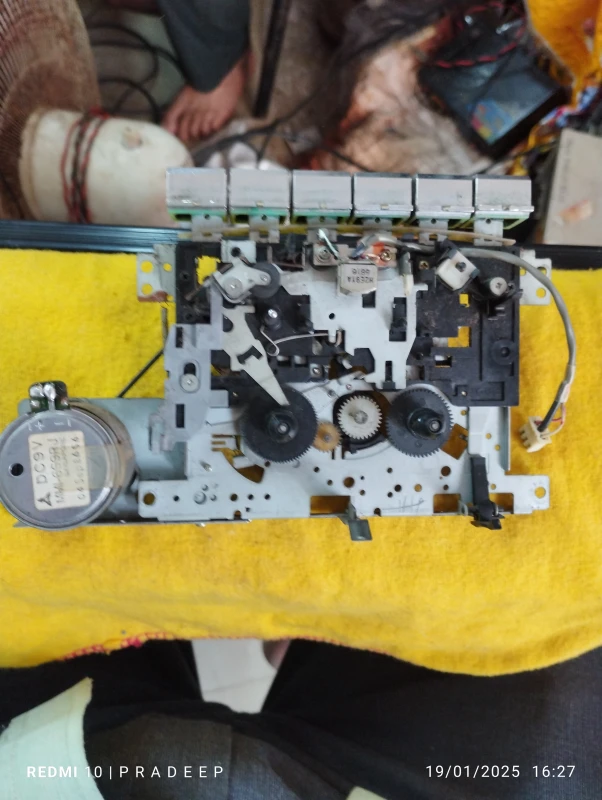

RX-FM25 MECHANISM SERIES
m@ SPECIFICATIONS
General:
Power Requirement:
Power Consumption:
Power Output:
Speaker:
Output:
Dimensions:
Weight:
Panasonic.
AC; 120V, 60Hz
Battery; 9V (Six '"D" Size Flashlight
Batteries)
(Panasonic UM-1 or equivalent)
13W (AC only)
7W (38.5Wx2)...RMS (max.)
4" (10cm) PM Dynamic Speaker (32)
Headphones; 322, $3.5
16"! 16 (W) 59/46" (H)4°/,"(D)
(428x135x118)mm
4 |b. 7 oz (2kg) without batteries
Radio Section:
Radio Frequency
Range:
Intermediate
Frequency:
Sensitivity:
Tape Deck Section:
Frequency Response:
Recording System:
Tape Speed:
Track System:
Weights and dimensions shown are approximate.
(Les poids et dimensions mentionnes sont approximatifs.)
Design and specifications are subject to change without notice.
Matsushita Services Company
50 Meadowland Parkway,
Secaucus, New Jersey 07094 P.O. Box 774
Honolulu, Hawaii 96808-0774
Matsushita Electric
RX-FM15
Panasonic Hawaii Inc.
91-238 Kauhi St. Ewa Beach
ORDER NO. GAD8602509C1
nual
Radio Cassette
Black)
This is the Service Manual
for the following areas.
[M| For U.S.A.
---For Canada.
FM; 88~108 MHz
AM; 525~ 1610kHz
FM; 10.7MHz
AM; 455kHz
FM; 3uV/50mW output
(-3dB Limit)
AM; 140uV/m/50mW output
908,000 Hz (with normal tape)
DC bias, Magnet erase
17/, ips (4.8cm/s)
4-track 2 channel stereo recording
and playback
Panasonic Sales Company,
Division of Matsushita Electric
of Puerto Rico, Inc.
Ave. 65 De Infanteria, KM 9.7
Victoria Industrial Park
Carolina, Puerto Rico 00630
of Canada Limited
5770 Ambler Drive, Mississauga,
Ontario, L4W 2T3
