U N D E R C O U N T E R
OV E R L AY PA N E L
M O D E L S U C - 2 4 R A N D U C - 2 4 C
Before attaching the panel to the door, remove
the outer screws from each of the two
mounting positions along the hinge side of the
door. Unscrew the two remaining screws in the
center of each mounting position just enough
that the slotted holes on the hinge side door
panel bracket will slide under the heads. These
positioning screws will support the door panel
during installation and adjustment. Refer to the
illustration below.
Install the door panel by engaging the tabbed
bracket to the handle side of the door first and
then sliding the hinge side mounting bracket
onto the positioning screws on the hinge side
of the door. The panel can be adjusted
up and down and side to side.
Once the door panel is in place and adjusted
correctly, attach the four remaining #10 x
screws to the hinge side mounting bracket and
install the magnetic decorative caps as shown
in the illustration below.
10
I N S T A L L A T I O N I N S T R U C T I O N S
I N S T A L L A T I O N

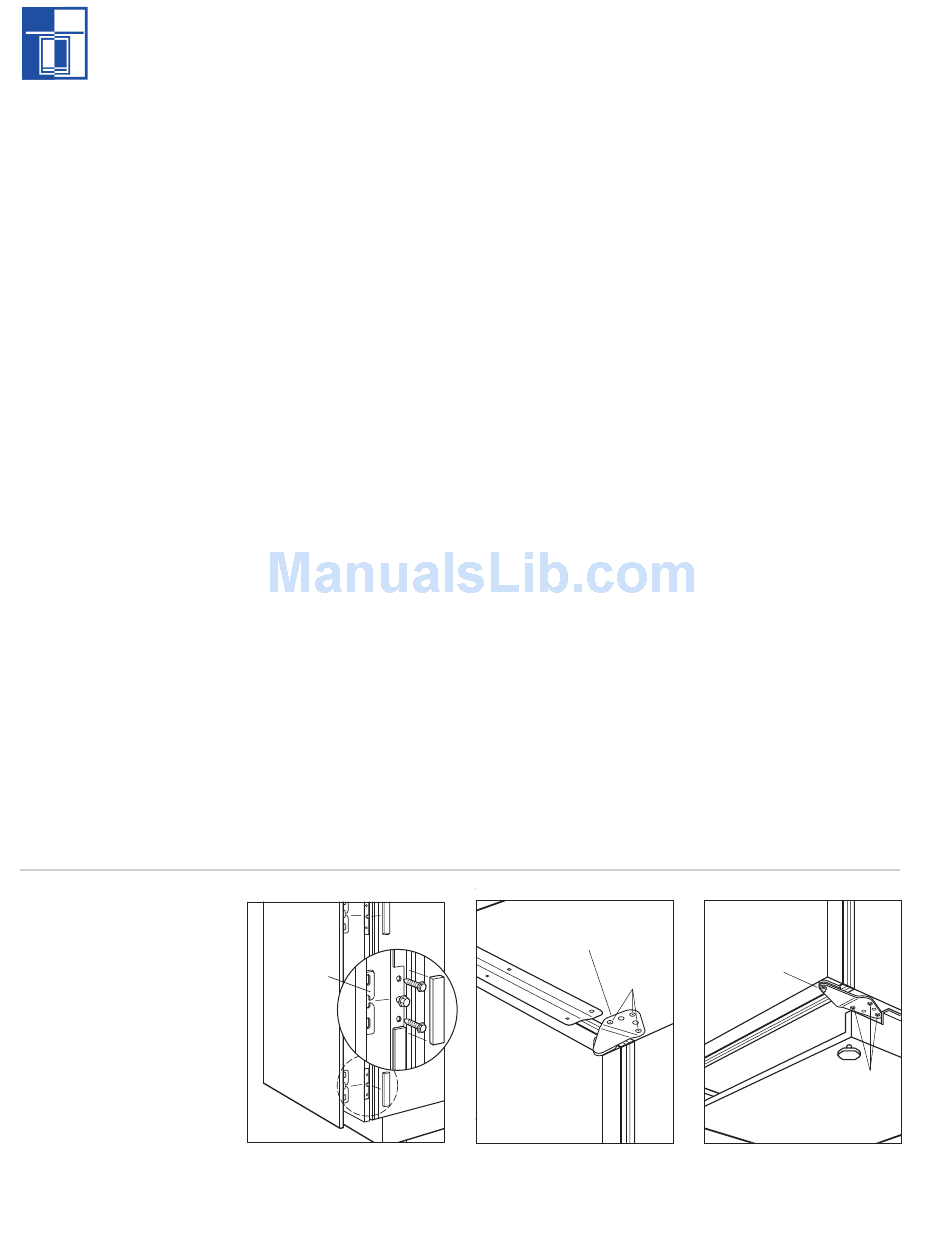

Door Panel
Bracket
Door panel mounting
brackets
H I N G E A D J U S T M E N T
IMPORTANT NOTE: The Undercounter unit
should be properly leveled in position before
door hinge adjustments are made.
The top and bottom cabinet hinges are held in
place with three permanent adjustment
screws. If the door needs adjustment, loosen
the adjustment screws and reposition the door.
Once in position, tighten the adjustment
screws. Refer to the illustrations below.
I N S TA L L AT I O N
The importance of the installation of the
Sub-Zero Undercounter unit cannot be
overemphasized. Proper installation is the
1 responsibility of the selling dealer or installer.
/ " (6)
4
IMPORTANT NOTE: The following checklist
should be completed by the installer to ensure
1 that no part of the installation has been
/ "
2
overlooked.
Advise the homeowner to fill out and return all
product registration forms. This will ensure
that the customer information is in our
database in the event service is required.
Any questions or problems about the installa-
tion should be directed to your Sub-Zero
dealer or the Sub-Zero Customer Service
Department at 800-222-7820. You can also visit
our website at subzero.com.
Top Door Hinge
Adjustment
Screws
Top hinge adjustment
C H E C K L I S T
Bottom
Door Hinge
Adjustment
Screws
Bottom hinge adjustment
