Planning Information
Undercounter Model UC-24B
D O O R F R A M E P R O F I L E
Dimensions in parentheses are in
millimeters unless otherwise specified.
C L
1" 1"
(25) (25)
1
2 / " Rail /Stile
4 (57)
DOOR FRAME PROFILE
F U L L - S C A L E T E M P L A T E S
The full-scale illustrations on this page and the following
pages enable you to understand some of the unique situa-
tions you may face as you design the Undercounter units
into homes. These templates can be easily photocopied or
used in your tracings.
D O O R F R A M E P R O F I L E

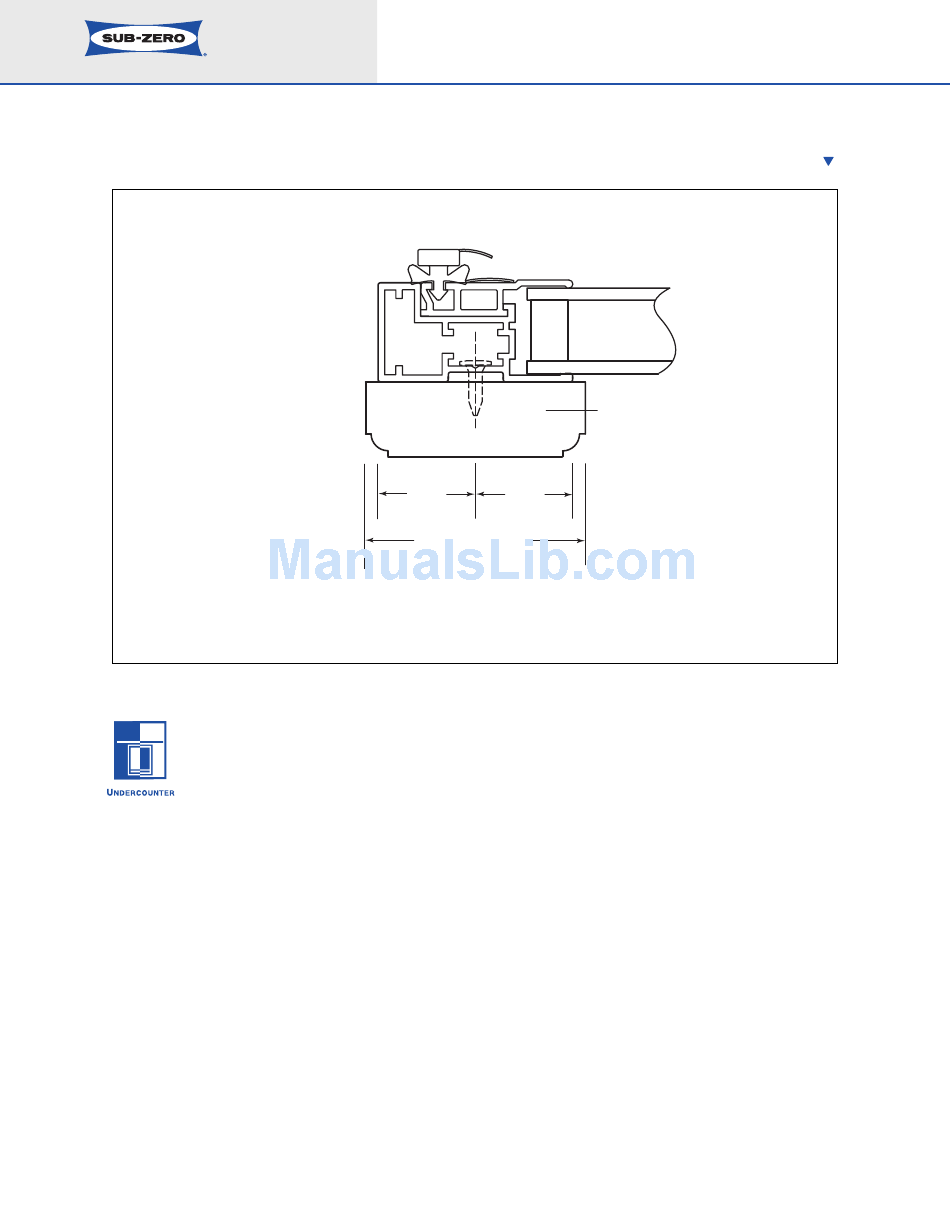

The full-scale illustration above shows the door frame
profile for Model UC-24B.
IMPORTANT NOTE: Rails and stiles must be a minimum
1
of 2 / " (57) wide. The back sides of rails and stiles that
4
will be visible through the glass door will need to be
finished.
Glass
Door Panel Profile
