Sub-Zero UC-24B Specifications page 4

Planning Information
Undercounter Model UC-24B
I N S T A L L A T I O N S P E C I F I C A T I O N S
D I M E N S I O N S
Finished Rough Opening Width
Finished Rough Opening Height
Finished Rough Opening Depth
Location of Electrical
See Installation Instructions shipped with unit for detailed specifications.
Dimensions in parentheses are in
millimeters unless otherwise specified.

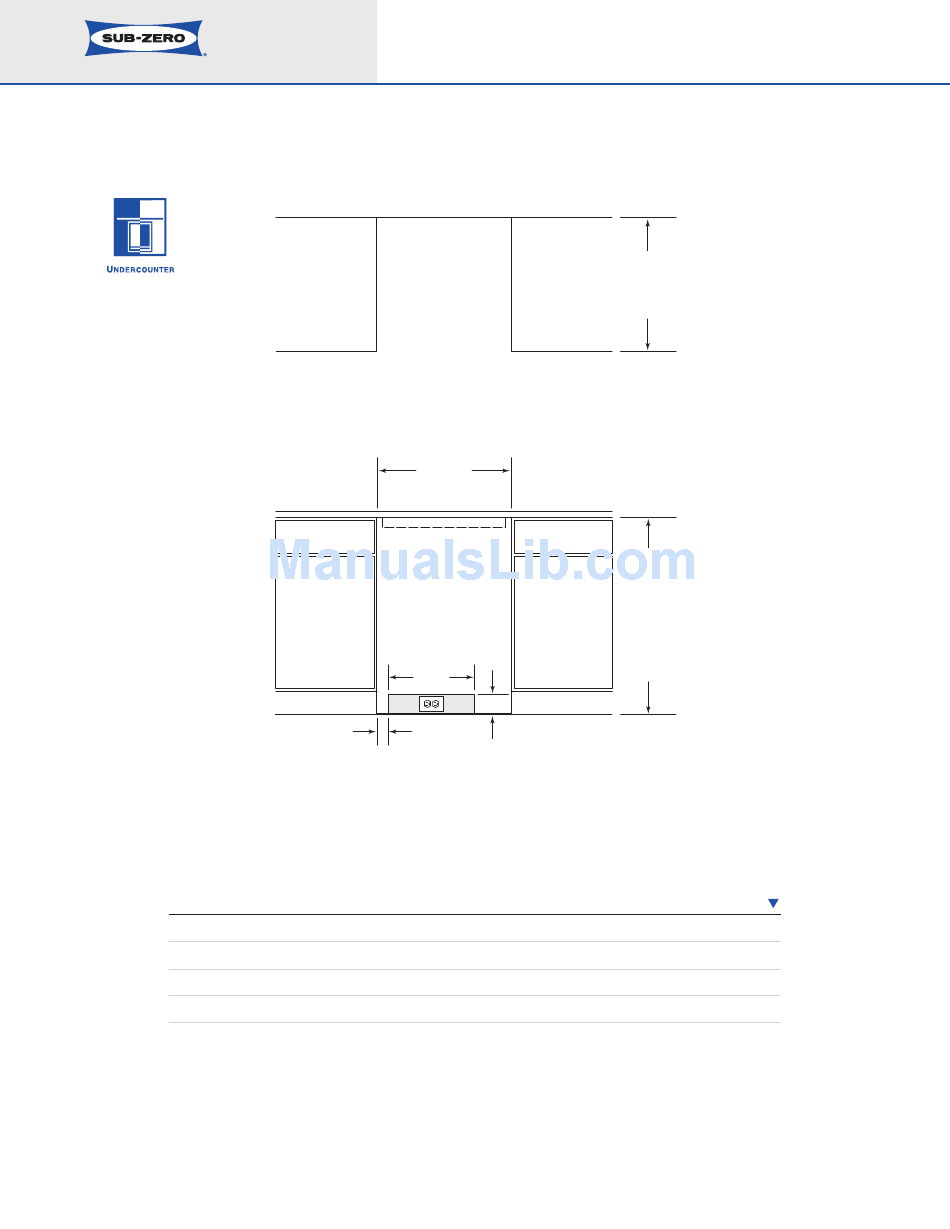

TOP VIEW
24"
(610)
ROUGH OPENING
WIDTH
ANTI-TIP BRACKET
LOCATE ELECTRICAL
WITHIN SHADED AREA
1
15 / "
2
(394)
3"
( 76 )
2" F
(51)
FRONT VIEW
24"
(610)
2
ROUGH
OPENING
DEPTH
1
34 / "
2
(876)
ROUGH
OPENING
HEIGHT
1
34 / "
4
(870)
MINIMUM
HEIGHT
REQUIRED
24" (610)
1
34 / " (876)
2
24" (610)
Within shaded area
4
