Sub-Zero 700BF Specifications

Freezer drawers
Hide thumbs Also See for Sub-Zero 700BF:

Advertisement

Quick Links

Download this manual See also: Use and Care Manual, User Manual
Planning Information
Integrated Model 700 BF (I )
Freezer Drawers
Seamless molding
Location of serial
number
Model 700BF
Magnetic drawer
gaskets
Model 700BFI
with Ice Maker
Front venting with
removable kickplate

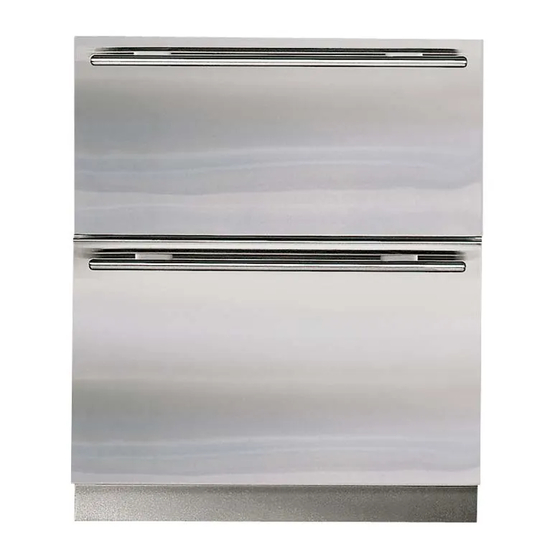

The Sub-Zero Model 700BF and
700BFI integrated design accepts custom
wood or stainless steel drawer panels.
Stainless steel panels and handles are
available as sales accessories in three
finishes—classic, platinum and carbon.
Dimensions in parentheses are in
millimeters unless otherwise specified.
11/06
These appliances are Star-K certified from the
factory to meet strict religious regulations in
conjunction with specific instructions found on
star-k.org. No extra wiring harness is required.
C
onsider using this two drawer unit in conjunction
with a Model 601R, all refrigerator. Many customers do
not have the need for lots of freezer storage in their
home. With the emphasis on fresh food, customers
need more refrigerator space. Now you can satisfy this
need with the combination outlined above.
There is one temperature for the entire unit and the
range you have is from -5˚F (-20˚C) to +5˚F (-15˚C).
Also keep in mind that this unit can be ordered with
and without an ice maker.
Electronic digital
control panel
Upper freezer
storage drawer
Automatic ice maker
(Model 700BFI)
Lower freezer
storage drawer
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sub-Zero 700BF and is the answer not in the manual?

Questions and answers

Related Manuals for Sub-Zero Sub-Zero 700BF

Summary of Contents for Sub-Zero Sub-Zero 700BF

  • Page 1 No extra wiring harness is required. onsider using this two drawer unit in conjunction with a Model 601R, all refrigerator. Many customers do not have the need for lots of freezer storage in their home. With the emphasis on fresh food, customers need more refrigerator space.

  • Page 2: Front View

    Planning Information Integrated Model 700 BF (I ) F E A T U R E S Drawer unit with freezer storage drawers Model 700BFI has automatic ice maker Integrated design for "point-of-use" refriger- ation anywhere in the home Refrigeration system ensures the best food storage and energy efficiency Microprocessor offers precise temperature control...
  • Page 3 Planning Information Integrated Model 700 BF (I ) M O D E L O P T I O N S Drawer Freezer Unit 700BF Drawer Freezer Unit with Automatic Ice Maker 700BFI P A N E L O P T I O N S Integrated (custom panels) Classic Stainless Steel Finish Platinum Stainless Steel Finish...

  • Page 4: Top View

    Planning Information Integrated Model 700 BF (I ) I N S T A L L A T I O N S P E C I F I C A T I O N S *PLACEMENT OF THE ANTI-TIP BRACKET SHOULD BE 24" (610) FROM THE FRONT OF THE UNIT WITHOUT PANELS TO THE BACK OF THE...
  • Page 5 Planning Information Integrated Model 700 BF (I ) I N S T A L L A T I O N N O T E S Refer to the illustrations and specifications for overall dimensions, finished rough opening dimensions and installation specifics. IMPORTANT NOTE: The depth of Model 700BF(I) is 24"...
  • Page 6 Planning Information Integrated Model 700 BF (I ) Dimensions in parentheses are in millimeters unless otherwise specified. C A B I N E T R Y A P P L I C A T I O N S Integrated refrigeration is compatible with virtually any style and look of cabinetry.
  • Page 7 Planning Information Integrated Model 700 BF (I ) F R A M E D C A B I N E T R Y SUB-ZERO (610) UNIT TO WALL CABINET FRAME CABINET PANEL " (3) DOOR REVEAL (686) Traditional Frame – full overlay (top view). SUB-ZERO (610) UNIT...
  • Page 8 Planning Information Integrated Model 700 BF (I ) F R A M E D C A B I N E T R Y – B E A D E D I N S E T A P P L I C A T I O N 24"...
  • Page 9 Planning Information Integrated Model 700 BF (I ) F R A M E L E S S C A B I N E T R Y "* (679) PANEL WIDTH " (345) "* (424) 4"* (102) 27" (686) TOE KICK FINISHED OPENING A) ALL REVEALS ARE "...
  • Page 10 Planning Information Integrated Model 700 BF (I ) CABINETS (635) (686) TOP VIEW Installation without side panels. CABINETS (635) (686) MINIMUM " (16) SIDE PANELS Installation with side panels. CABINETS (635) (1372) TOP VIEW Installation of two units side by side. CABINETS (635) (686)
  • Page 11 Planning Information Integrated Model 700 BF (I ) T O E K I C K A R E A D E T A I L (268) PANEL (424) PANEL (254) OPTIONAL (102) Dimensions in parentheses are in millimeters unless otherwise specified. T O E K I C K C L E A R A N C E The toe kick clearance can vary with the height of the lower drawer panel;...
