Sub-Zero 700BC User Manual page 13

S U B - Z E R O I N T E G R AT E D
R E M O V A B L E C R I S P E R C O V E R
One lift-up crisper cover is standard with
each tall and base refrigerator unit and the
base combination unit. The clear-view
window allows easy access and visibility of
all vegetables stored in the drawer.
You can easily remove this cover for cleaning
with soap and water, or move it to another
drawer by lifting the front edge up and pulling
out from the front. Refer to the illustration
below.
IMPORTANT NOTE: For Model 700BC(I), base
combination unit, the removable crisper cover
can only be used in the upper drawer.
D R A W E R D I V I D E R
The divider of the upper drawer is easily
removed by pulling forward and sliding the
back edge away from the back of the drawer.
Reverse this procedure to insert the divider, as
shown in the illustration.
The divider of the lower drawer is removable if
there is no ice maker, but screws have to be
removed to do so. For units with an ice maker,
the lower divider is not removable.

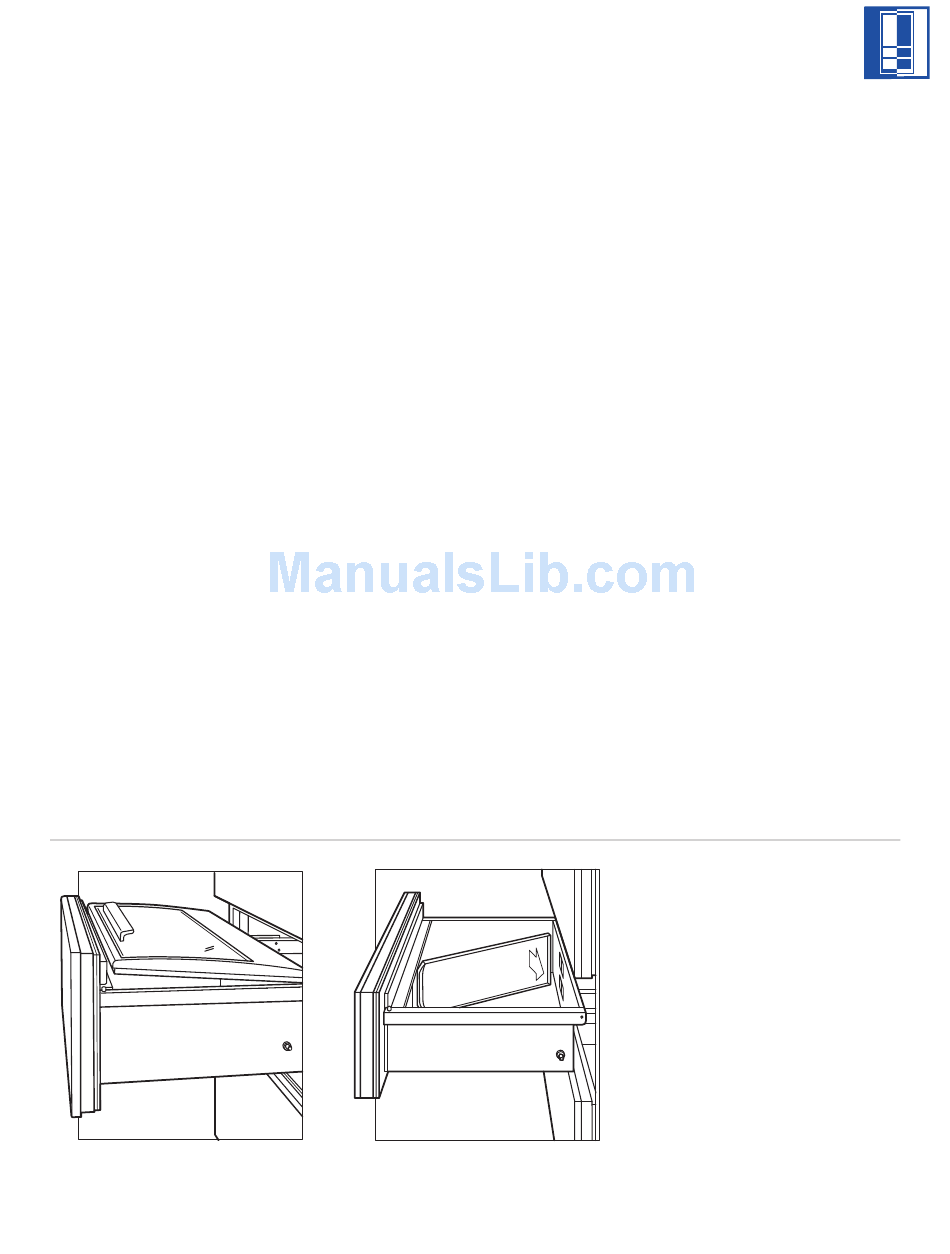

Crisper cover removal
U S E & C A R E
I C E M A K E R
The ice maker in your Integrated combination
or freezer unit is fully automatic and has been
factory tested. It requires a connection to the
house water supply.
To put into operation, the ice maker system
must be turned on by the ICE ON/OFF key
pad, located on the electronic control panel.
Refer to Ice Maker System on page 10.
The ice maker shuts off when you remove the
ice storage container from the freezer. When
you replace the container, the ice maker will
resume ice production.
IMPORTANT NOTE: The first container filled
with ice should be discarded, as with any new
connection there may be impurities in the ice
from the water supply line.
Drawer divider insertion
O P E R AT I O N
A C C E S S O R I E S
Optional acces-
sories are available
through your
Sub-Zero dealer. To
obtain local dealer
information, visit
the Locator section
of our website,
subzero.com.
13
